Description

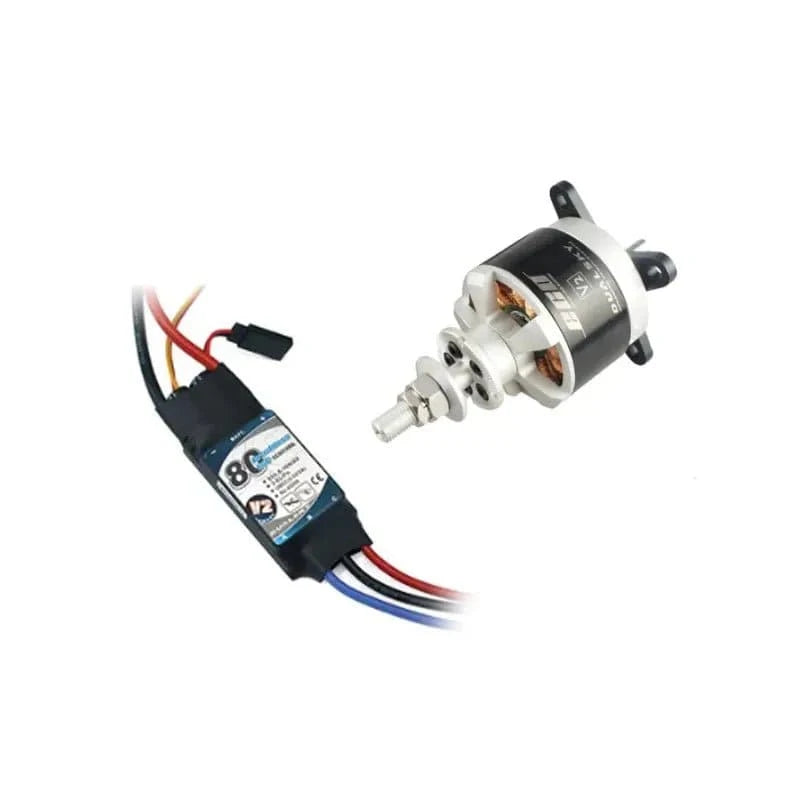

This is a Dualsky 70E Tuning Combo with ECO 4120C V2 500kv Motor and 80A ESC
ECO V2 has made great improvements in many respects. It brought new electromagnetic design, more competitive performance and efficiency, long-time endurance and water-proof. This is new ECO V2.
1.Classic Dualsky five-spokes back cover with simple lines. The nuances are quite different.
2.Traditional Dualsky color matching (silver-black-sliver), anodized and matte finishing
3.Multi-surface rotating laser marking, Logos, model and traceable serial number
4.Motor structure strength increased by 25%
5.Optimized stress distribution and strength increased but it did not increase the weight.
6.High strength and high toughness main shaft (HRC48)
7.The rotor limit adopts 2 insurance modes of circlip and stainless steel chocks
8.High temperature resistant, high toughness epoxy glue
9.Due to the above optimizations. The impact resistance increased about 10G, and the survival ability is greatly improved.
10.High precision double sides dynamic balancing
11.Adopt NMB ball bearing, durable and low noise. ECO 41 and bigger, equipped with 3 ball bearings
12.Optimized heat dissipation ways
13.Motor working life significantly increased by 50% (same load and working environment)
14.Modular design: main shaft, case and accessories (propeller mount and motor mount) are all compatible with the upcoming EA series. Besides, the design of propeller mount is completely implanted from GA series.
15.Up to 500V insulation level. The stator is coated with insulated-coating and completely insulated after winding.
Motor Specifications
KV
500
Turns
8
Weight
280g
Size (D x L)
49.5 x 45.2
Slots & Poles
12N14P
Ri (mOhm)
25
Io @ 10V (A)
1.1
No. of Cells (LiPo)
5S, 6S
Max. Efficiency Current (15S) [A]
36
Max. Burst Current (15S) [A]
60
Max. Power (15S) [W]
1440
Max. Torque
1.38
Shaft Diameter
6
Mounting Holes Pitch
30/30
Input Connectors
GC4.0
Recommended ESC
XC-65-LITE or XC6018BA
Propeller
5S: 16x8E, 15x8E or 6S: 14x7E, 15x8E
Class
.46-.55 2-stroke
Esc Specifications
Dimensions (L x W x D)
75 x 30 x 14 mm
Weight
71 g
Number of Cells
NiXX 6-18, 7.2-21.6V
LiPo 2-6, 7.4-22.2V
Resistance (Ri) mOhm
0.0016
Max Cont. Current
80 A
Max Cont. Output
1680 W
Max. Burst Current
100 A
Max Burst Output
2040 W
BEC / Dissipative Power
5.5V/3A (Switching)
Programmable
Throttle + ProgCARD + USB LINK
Input Wires
150 mm 12AWG, DC3
Output Wires
90 mm, 14AWG, DB4
Signal Wire
300 mm JR
Applications
.70 Class Aerobatic
