Description

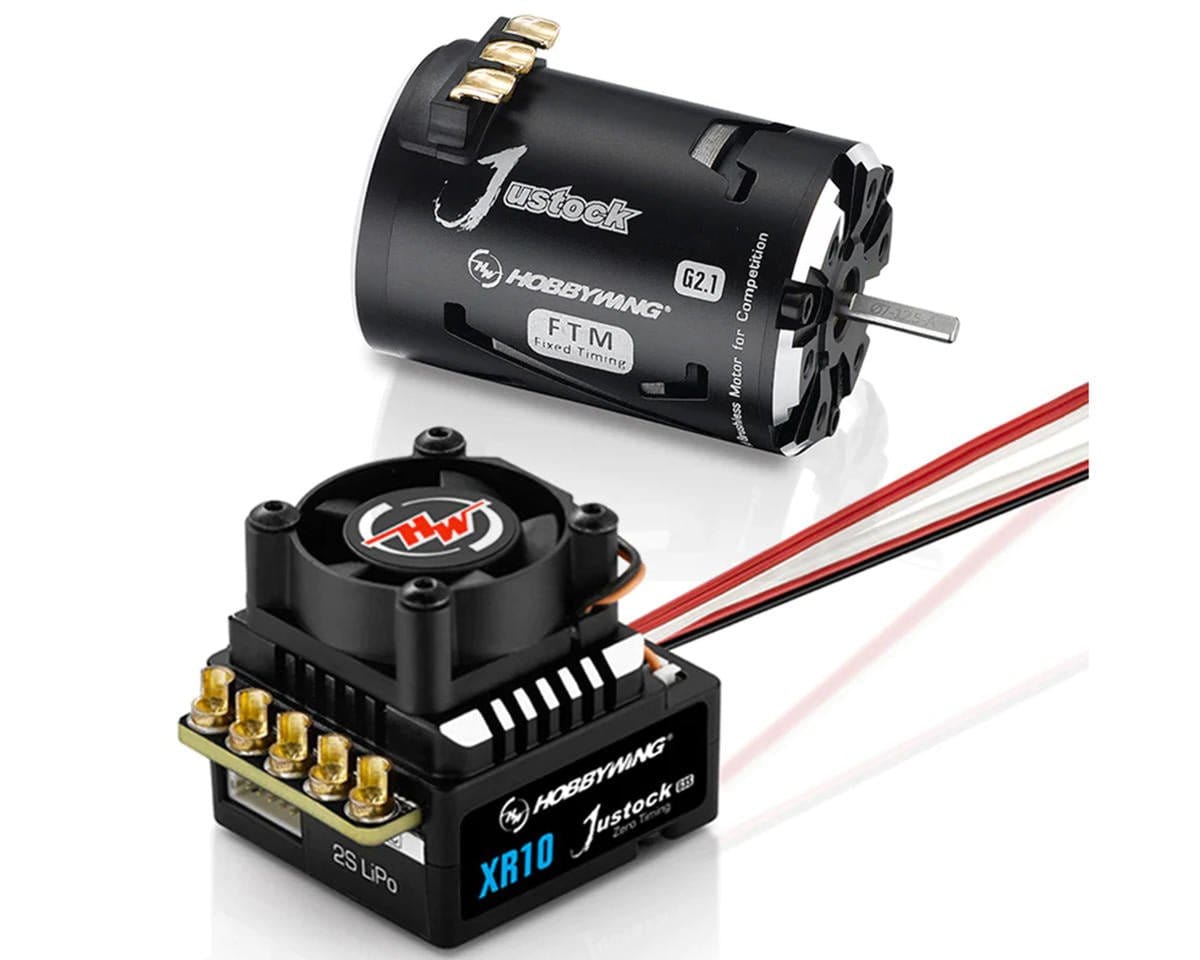

This is the Hobbywing XR10 Justock G3S Sensored Brushless ESC/SD G2.1 Motor Combo - 13.5T [38020371].
The Hobbywing XR10 Justock G3SS Sensored Brushless ESC/SD G2.1 Motor Combo has been designed with fixed, 0°, timing for spec class racing. The included SD G2.1 motor is an ideal stock motor for both 1/10 and 1/12 on and off-road racing. These two components paired together make for an ideal choice for beginners and experts alike.
Note: This product photo may not fully depict the described item. For comprehensive details on the listed product, please refer to the specifications provided.
Features:
- ESC:
- Built-in polarity protection. The XR10 Justock has integrated MOSFET's that if the battery terminals are connected in reverse, the MOSFET will be reverse-biased and will not allow current to flow through the system
- Programmable via OTA Wireless module or 3in1 program box
- Built-in capacitor module eliminates the need for external capacitors and unwanted space
- RPM speed limit function supports up to 6 different speed, RPM, selections to meet the needs and demands of various competitions in the world (Set through OTA module or 3in1 box)
- Internal ESC timing has been set to 0 degrees and cannot be adjusted for stock racing
- Built-in BEC can support a maximum output current of up to 8A. Output voltage can be set between 6V or 7.4V
- Calibration or performing a factory-reset can be achieved by using this SET button. Simple and easy to use
- Supports both CCW (counterclockwise) and CW (clockwise) motor directions
- Protection functions include: reverse polarity, battery voltage, ESC temperature, motor temperature, signal lost and locked rotor protection
- ESC includes the Freewheeling setting allowing for lower ESC temps enhancing drivability through corners
- Built-in data logging for post-run reports
- Motor:
- Use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability
- Built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand
- Silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor
- Detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency
- This Justock motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice
- The motor design is in compliance with IFMAR, and ROAR specifications
Specifications:
- ESC:
- Continuous Current: 60A
- Burst Current: 380A
- Battery: 2S Lipo (Only 2S)
- Built-in BEC: 6V/7.4V @ 4A(Switch-mode)
- ESC programming: Independent programming port
- Motor Supported: Sensor and sensorless brushless motor
- Motor Limit: 10.5T, or greater,3650 Motor
- Application: 1/10, 1/12 On-road and Off-road
- Cooling Fan: Powered by BEC
- Size: 40.9x33.9x32.1mm (LxWxH)
- Weight: 75.4g (Including weight of wire)
- ROAR Approval: Yes
- Motor:
- Scale: 1/10, 1/12
- Brushless: Yes
- Sensored: Yes
- Pole Count: 2
- KV Rating: 3200kV
- LiPo Cells: 2-3S
- No-Load Current(A): 4A
- Outer Diameter: 35.9mm (1.413")
- Length: 52.5mm (2.067")
- Shaft Diameter: 3.17mm (0.125")
- Weight: 175g (6.17oz)
- Timing: Fixed
Includes:
- (1) Justock G3SS ESC
- (1) Justock 13.5T G2.1 brushless motor
- (1) 5V cooling fan
- (1) Sensor cable
