This is the Advance Hobby Cruiser-to-Carrier Model Ship Jig Extension Module

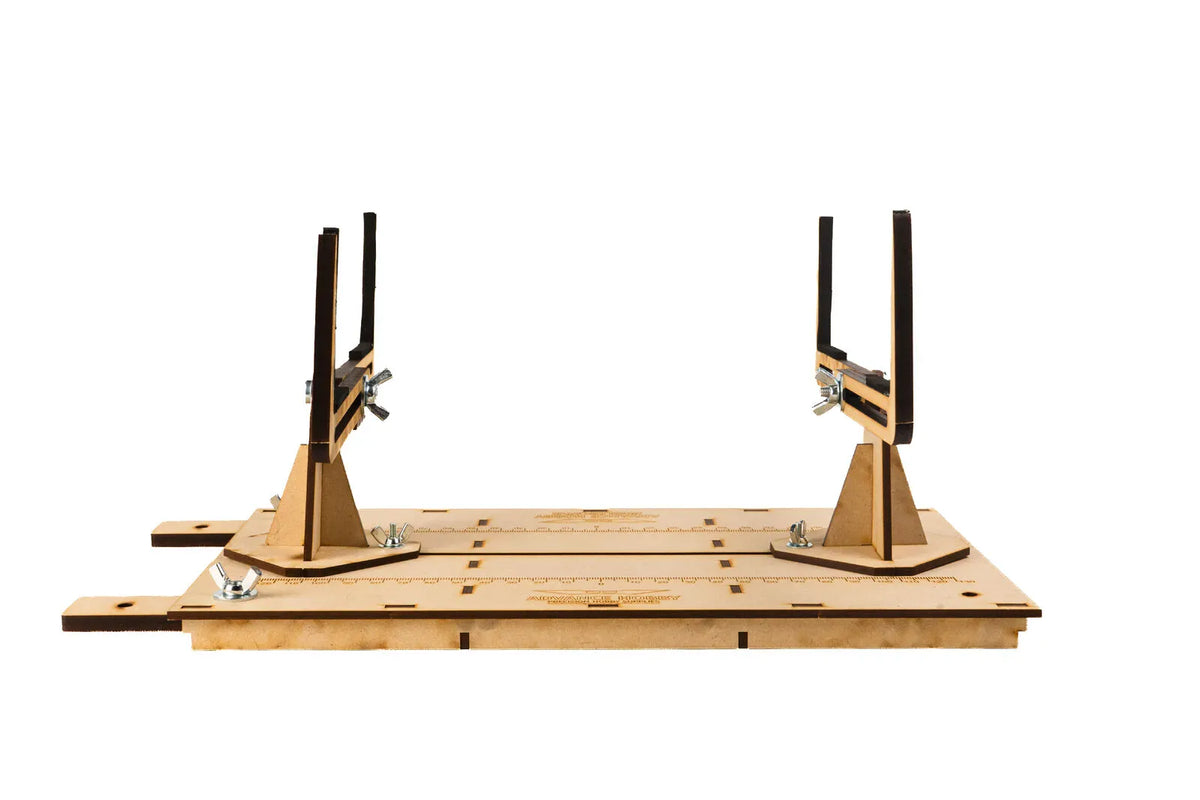

Advance Hobby Cruiser-to-Carrier Model Ship Jig Extension Module

Extend your Cruiser jig for longer and larger model ship projects.

The Advance Hobby Carrier Extension Module expands the Cruiser Model Ship Building Jig with an additional base section and two extra hull supports. Installed between the Cruiser’s existing sections, it creates a longer six-support setup for larger model ships.

Extension module only — Cruiser jig required

Advance Hobby Carrier Extension Module installed between the two Cruiser jig sections

Adds Two SupportsExpands the Cruiser from four to six hull-support points.

Extends Working LengthCreates more working space for longer model vessels.

Australian MadeDesigned and manufactured in Australia.

Convert Your Cruiser into a Carrier-Size Jig

Separate the two sections of your Cruiser jig and install the Carrier Extension Module between them. The resulting setup provides three connected base sections and six independently positionable hull supports.

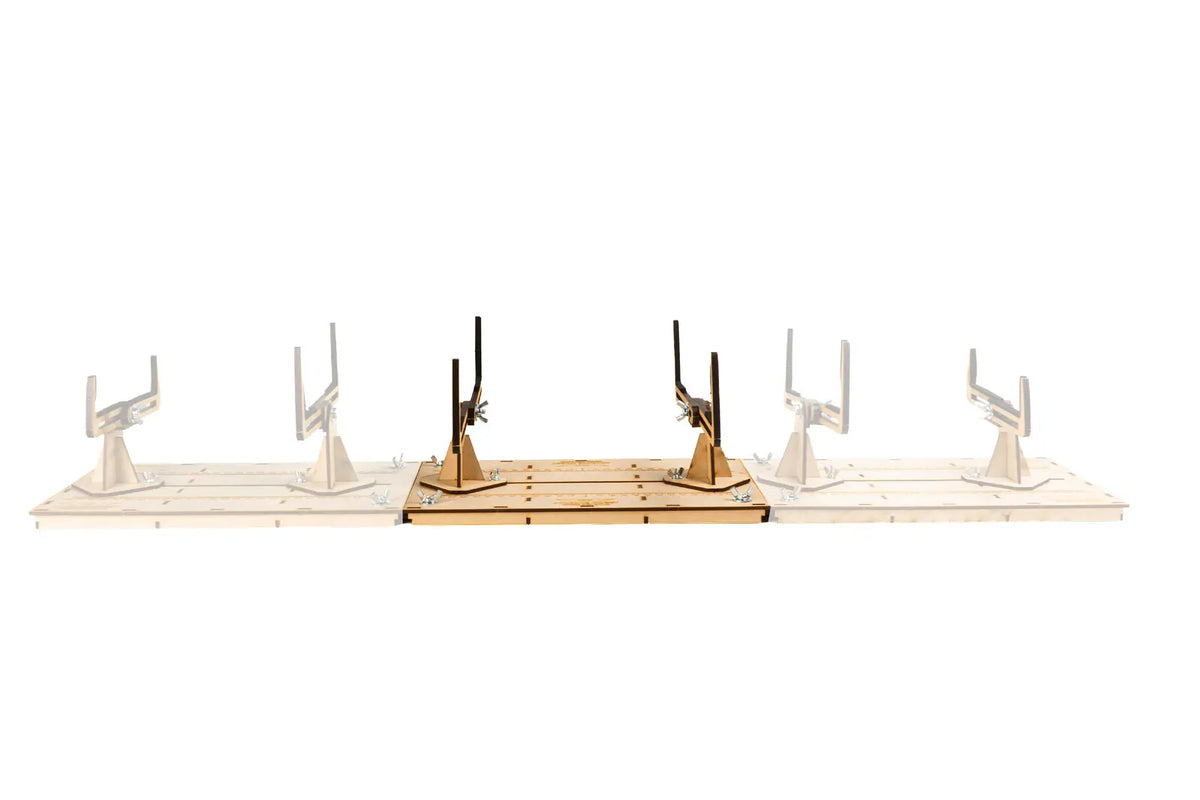

Cruiser jig plus Carrier Extension Module creating a Carrier-size jig

Multiple Support Configurations

Two support-arm sizes are included, allowing you to adapt the extension module to different hull widths and profiles. Each support can be positioned independently, adjusted to match the angle of the hull and lined with self-adhesive foam to help protect the model’s surface.

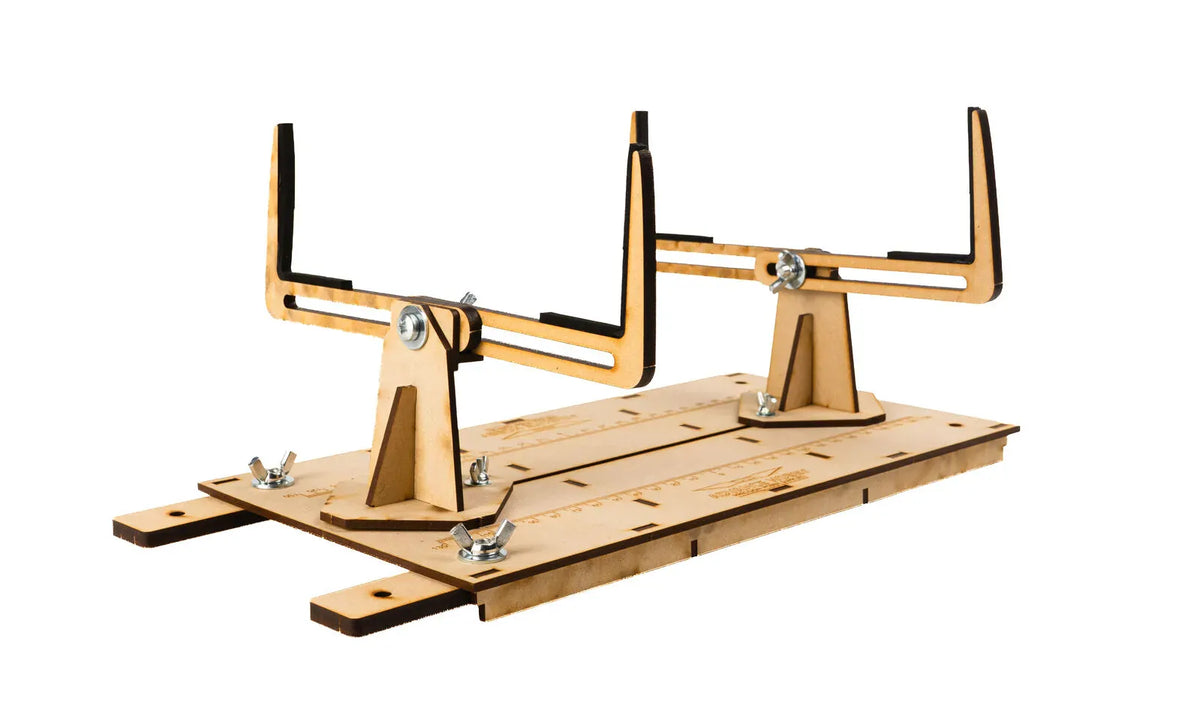

Large and small support-arm sizes included with the Carrier Extension Module

Large support arms
Maximum width: 200 mm
Height: 60 mm

Small support arms
Maximum width: 125 mm
Height: 30 mm

Built-In Measuring Guides

Engraved measuring guides help you position the extension supports evenly in relation to the existing Cruiser supports. This makes it easier to distribute support across longer model hulls.

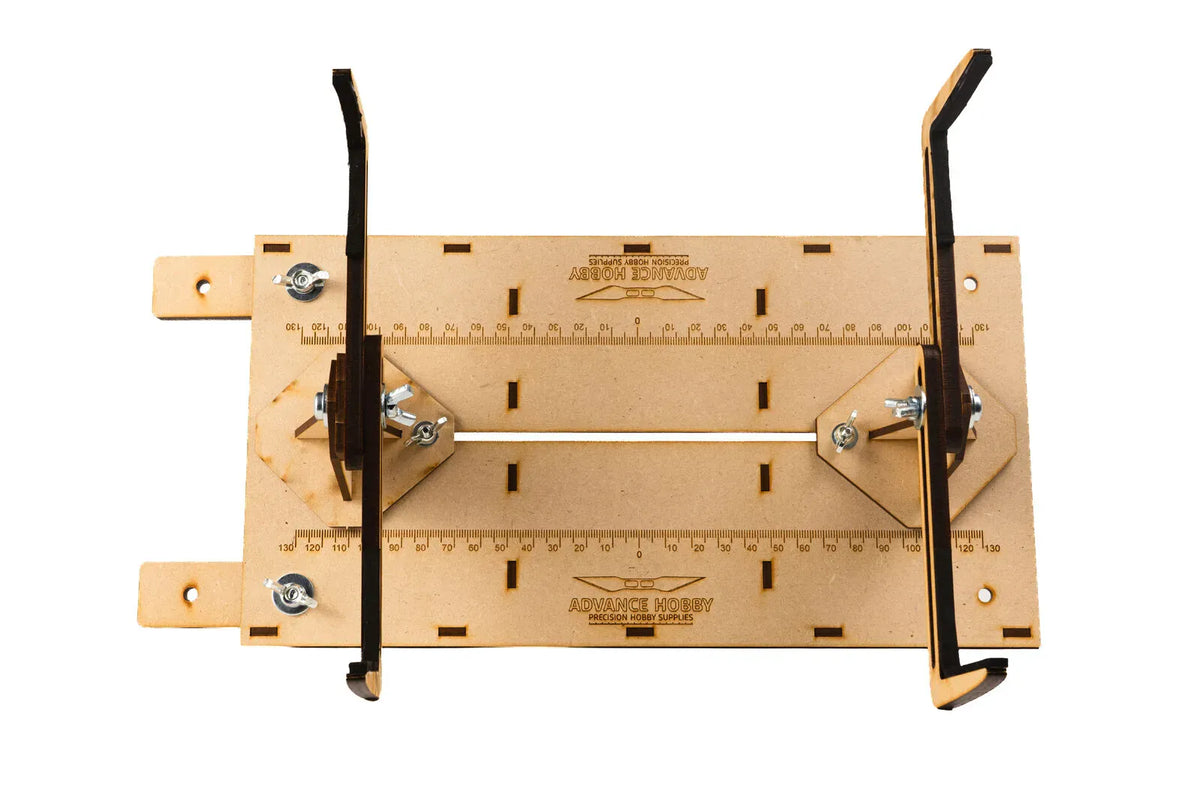

Measuring guides engraved into the Carrier extension baseboard

Carrier Extension Module suitable for selected larger model ships

Designed for Longer Model Vessels

The Carrier Extension Module is intended for model ships that require more working length and additional support than the standard Cruiser jig provides.

Suitable for selected 1:72 to 1:350 scale vessels. Compatibility will depend on the model’s actual length, width, weight and hull shape.

Key Features

Extends the Cruiser jig for longer model vessels
Adds two additional hull-support points
Creates a six-support Carrier-size setup
Adjustable support width and angles
Multiple support-arm sizes included
Foam-padded contact surfaces help protect your model
Built-in measuring guides for even positioning
Secure connecting hardware included
Designed and manufactured in Australia

What’s Included

1 × extension base section
2 × adjustable hull supports
4 × laser-cut MDF sheets
6 × bolts
12 × washers
6 × wing nuts
8 × self-adhesive foam strips
Connecting plates
Illustrated assembly instructions

Cruiser Jig Required

This product is an extension module and is not intended to function as a complete standalone jig. The Advance Hobby Cruiser Large Model Ship Building Jig is required and sold separately.

Simple Flat-Pack Assembly

The Carrier Extension Module arrives as a flat-packed MDF kit and requires assembly with PVA glue. Once assembled, it connects between the two sections of the Cruiser jig using the included connecting plates and hardware. Assembly takes approximately 15–30 minutes, excluding glue-drying time.

Required but not included
