RC car ESCs (Electronic Speed Controls) are critical components that regulate the speed and direction of electric motors in remote-controlled (RC) cars. Here's an overview of RC car ESCs:
1. Functionality:
-
Speed Control: ESCs regulate the speed of the motor by adjusting the voltage and current supplied to it. They provide smooth and precise throttle control, allowing users to accelerate, decelerate, and maintain constant speeds.
-
Direction Control: Most ESCs support forward, reverse, and brake functions, enabling bi-directional movement of the RC car. Directional control is essential for maneuvering and navigating obstacles.
2. Types of ESCs:
-
Brushed ESCs: Designed for use with brushed motors, these ESCs feature traditional brushed motor control circuitry. They are suitable for entry-level and budget-friendly RC cars.
-

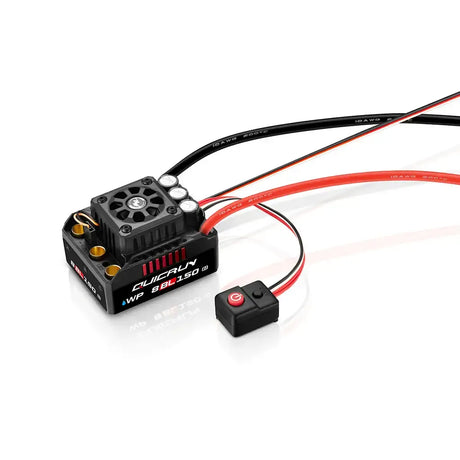

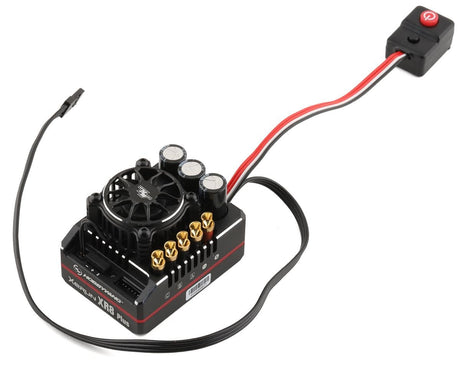

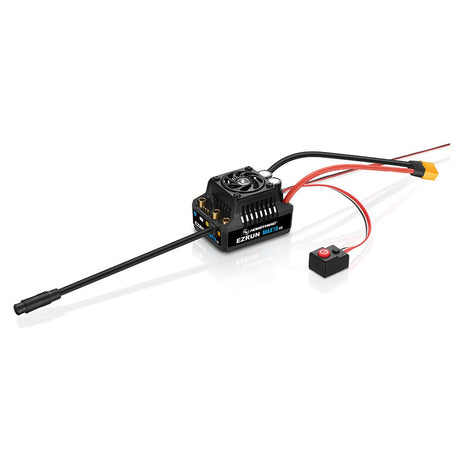

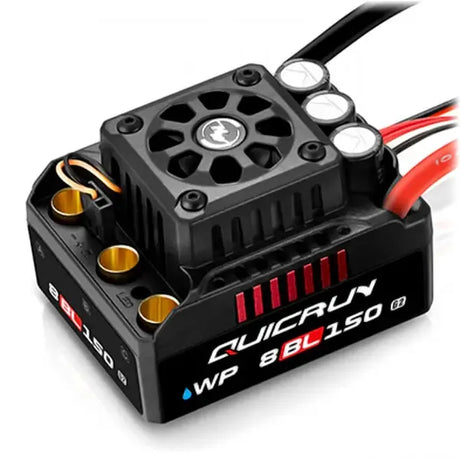

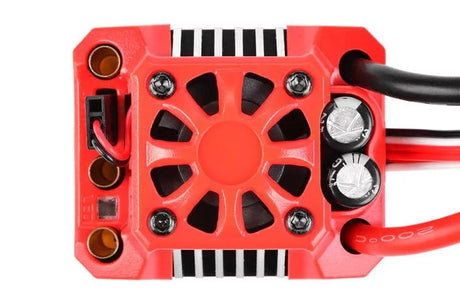

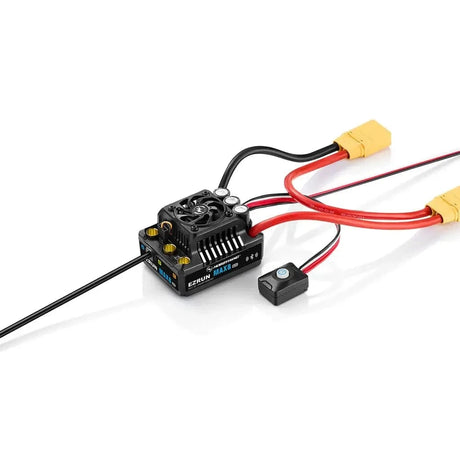

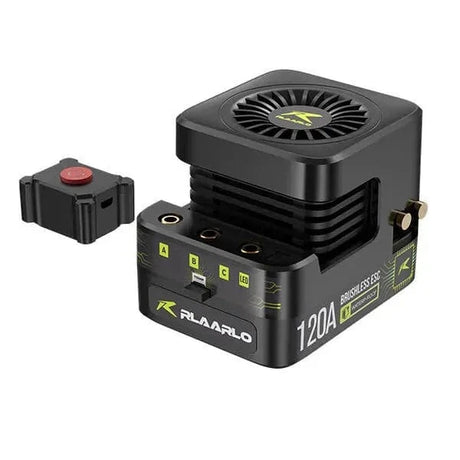

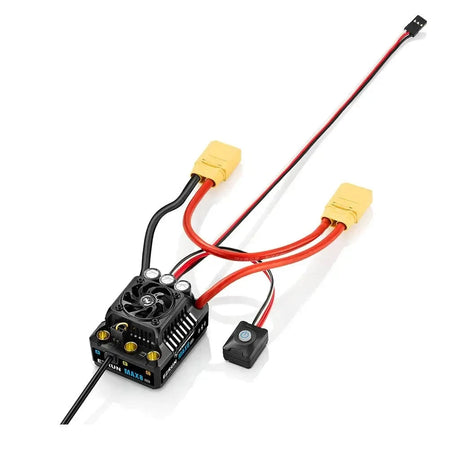

Brushless ESCs: Compatible with brushless motors, these ESCs utilize advanced electronic commutation techniques for superior efficiency and performance. They are the preferred choice for high-speed and high-power RC cars.
3. Features and Specifications:
-
Voltage and Current Ratings: ESCs are rated for specific voltage and current ranges to match the motor and battery specifications. Higher voltage and current ratings allow for increased power output and performance.
-
Motor Compatibility: ESCs are designed to work with specific types of motors, including brushed or brushless, and various turns or Kv ratings. It's essential to select an ESC that is compatible with the motor being used.
-
Programmability: Many ESCs offer programmable features such as throttle curves, braking strength, acceleration profiles, and motor timing adjustments. Programmable ESCs allow users to customize performance to suit their driving preferences and track conditions.
-
Protection Features: ESCs may include built-in protection features such as thermal overload protection, low-voltage cutoff, and motor stall detection to prevent damage to the ESC and motor under adverse conditions.
-
Size and Form Factor: ESCs come in various sizes and form factors to accommodate different RC car configurations and chassis layouts. Compact ESCs are suitable for smaller-scale cars, while larger ESCs may be required for high-power applications.
4. Compatibility and Installation:
-

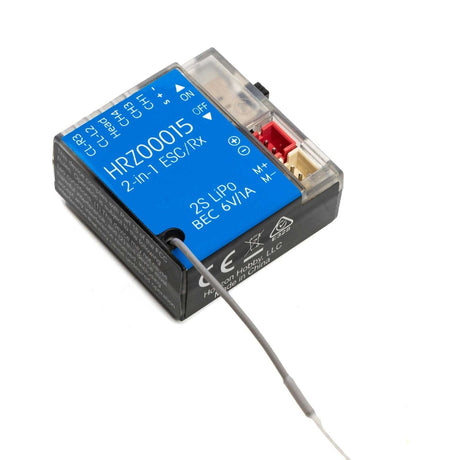

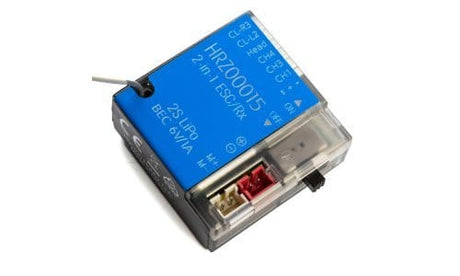

Receiver Compatibility: ESCs must be compatible with the receiver used in the RC car to ensure proper signal communication. Most ESCs support standard RC radio protocols such as PWM (Pulse Width Modulation) or digital protocols like S.Bus or DSM.
-
Installation: Installing an ESC involves connecting it to the motor, battery, and receiver according to the manufacturer's instructions. Proper wiring and cable management are essential to ensure reliable operation and prevent interference.
5. High-Performance ESCs:
-

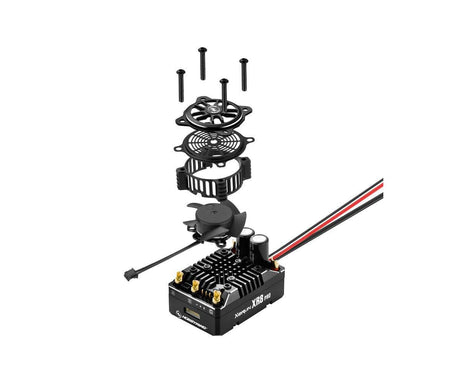

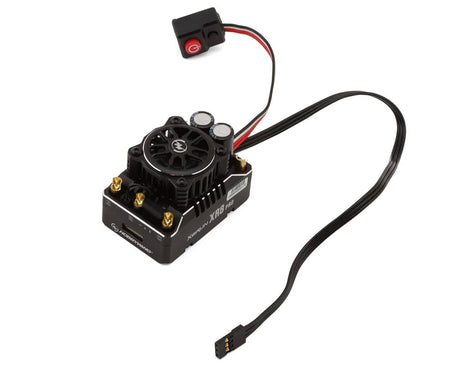

Competition Grade ESCs: Designed for racing and competition applications, these ESCs offer advanced features, ultra-low resistance, and high-frequency switching for maximum performance and efficiency.
-

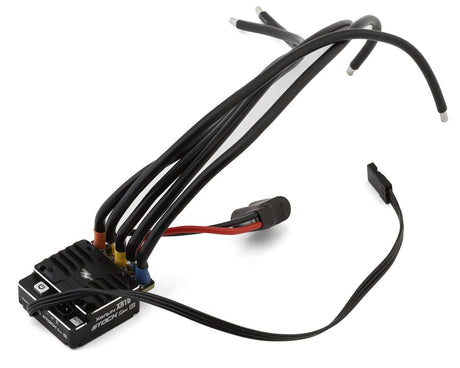

Sensored vs. Sensorless: Some high-performance brushless ESCs are sensored, meaning they use additional sensors to provide smoother throttle response and better low-speed control. Sensorless ESCs, on the other hand, do not require sensors and are simpler in design.
Choosing the right ESC is crucial for achieving optimal performance and reliability in RC cars. High-quality ESCs from reputable manufacturers offer advanced features, precise control, and durability, ensuring an enjoyable and satisfying driving experience.
