Product details

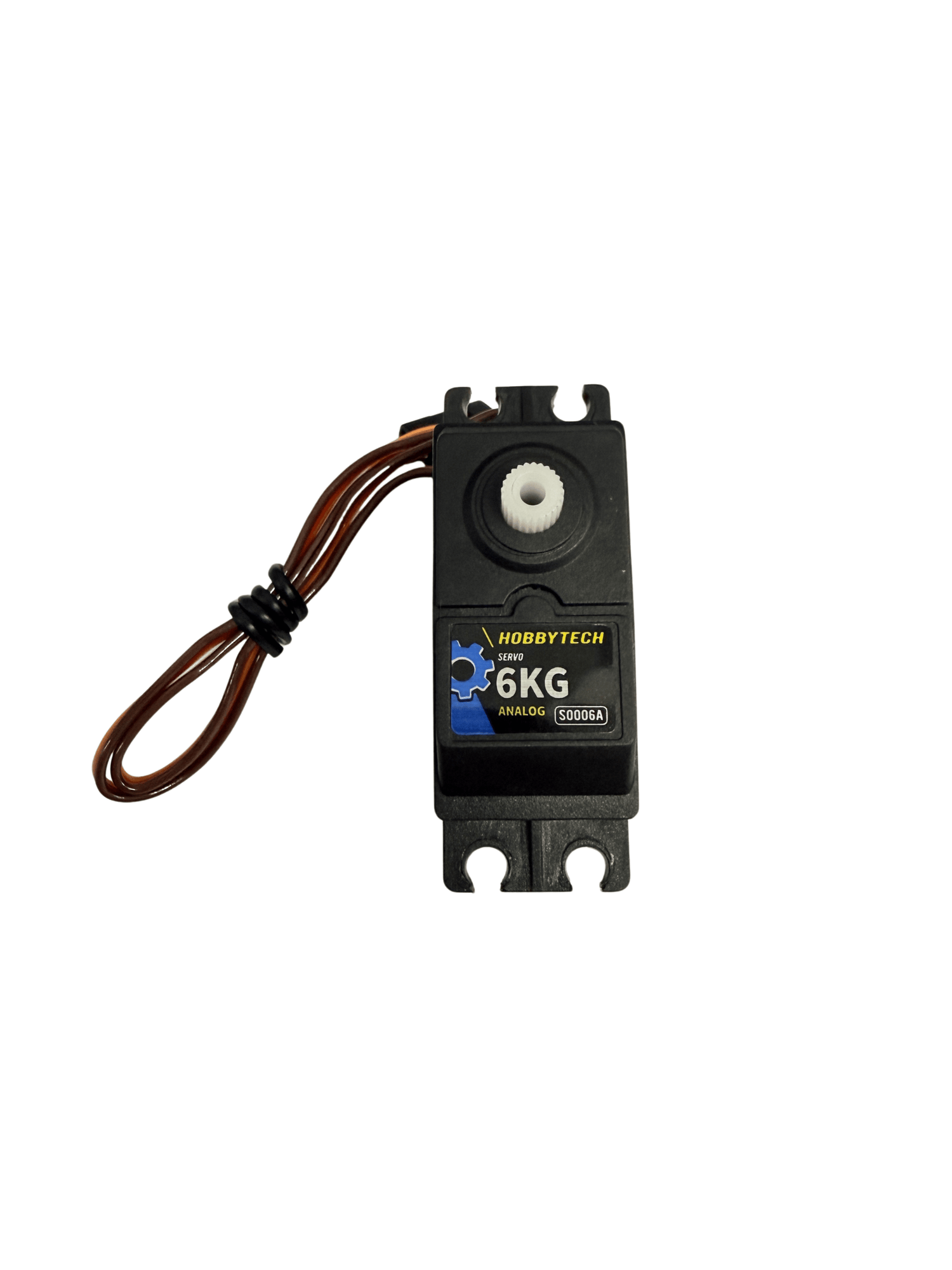

Hobbytech S0006A 6kg Analog Standard Size Steering Servo
The Hobbytech S0006A Analog Steering Servo is a reliable standard-size servo designed for RC car kits and general hobby use. With its familiar 40 × 20mm footprint, it is an excellent choice for many Tamiya RC car kits, touring cars, buggies and other models requiring a conventional steering servo.
Operating from 6.0V to 7.4V, the S0006A delivers up to 6.0kg.cm of stall torque and a maximum operating speed of 0.12 seconds per 60° at 7.4V. Its analog control system provides smooth and predictable steering response, while the dual ball-bearing output helps support consistent operation.
The lightweight plastic gear train keeps the servo weight to approximately 40g, making it well suited to entry-level and sport RC builds where dependable steering performance is required without unnecessary weight or cost.
Key Features
- Standard-size analog steering servo
- Ideal for many Tamiya RC car kits
- Up to 6.0kg.cm stall torque at 7.4V
- Operating speed of 0.12sec/60° at 7.4V
- Dual ball-bearing supported output
- Lightweight plastic gear train
- Iron-core motor
- Standard 25T output spline
- Compatible with 6.0V and 7.4V systems
- 300mm receiver lead
Performance
At 6.0V
- Operating speed: 0.14 seconds per 60° at no load
- Stall torque: 5.5kg.cm
- Stall current: 1.5A
At 7.4V
- Operating speed: 0.12 seconds per 60° at no load
- Stall torque: 6.0kg.cm
- Stall current: 1.8A
Specifications
| Specification | Details |
|---|---|
| Brand | Hobbytech |
| Model | S0006A |
| Servo Type | Analog |
| Servo Size | Standard |
| Motor Type | Iron-core motor |
| Gear Type | Plastic |
| Bearing Type | Dual ball bearing |
| Weight | 40g ±1g |
| Dimensions | 40 × 20 × 38.5mm |
| Operating Voltage | 6.0–7.4V |
| Operating Temperature | -10°C to +50°C |
| Neutral Signal | 1500μs |
| Signal Range | 1000–2000μs |
| Operating Angle | 45° each side at 500μs travel |
| Direction | Anticlockwise |
| Dead Band Width | 4μs |
| Output Spline | 25T |
| Receiver Lead Length | 300mm ±5mm |
| Idle Current | 20mA |
| No-Load Current at 6.0V | 200mA |
| No-Load Current at 7.4V | 300mA |
Wiring Information
- Brown or black: Negative
- Red: Positive
- Orange or white: Signal
Compatibility Notice
The S0006A is suitable for many standard-size servo mounts, including a wide range of Tamiya RC car kits. Before installation, confirm the servo dimensions, operating voltage, output spline and connector wiring are compatible with your model and radio system.
For 7.4V operation, ensure the receiver or BEC is rated to safely supply that voltage.
