Description

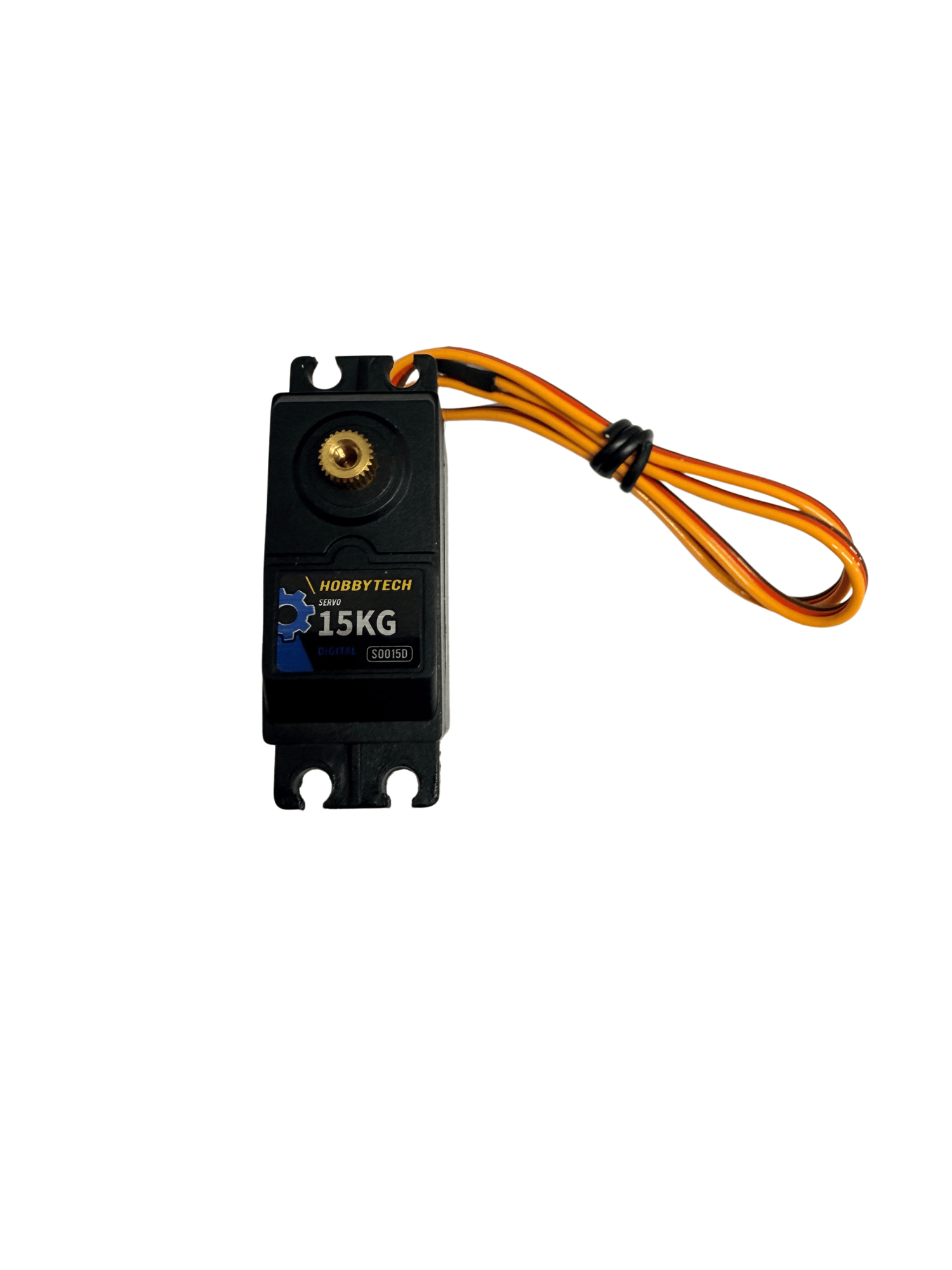

Hobbytech S0015D 15kg Digital Metal Gear Steering Servo
The Hobbytech S0015D Digital Steering Servo is a strong and dependable choice for RC cars, trucks and other hobby applications requiring precise steering control. Delivering up to 15kg.cm of torque at 7.4V, this standard-size servo offers the strength needed for a wide range of 1/10 scale RC vehicles.
Its digital control system provides accurate and responsive operation, while the metal gear drivetrain and ball-bearing construction improve durability under regular hobby use. The S0015D can operate from 6.0V to 7.4V, allowing compatible high-voltage receiver systems to take advantage of its maximum speed and torque.

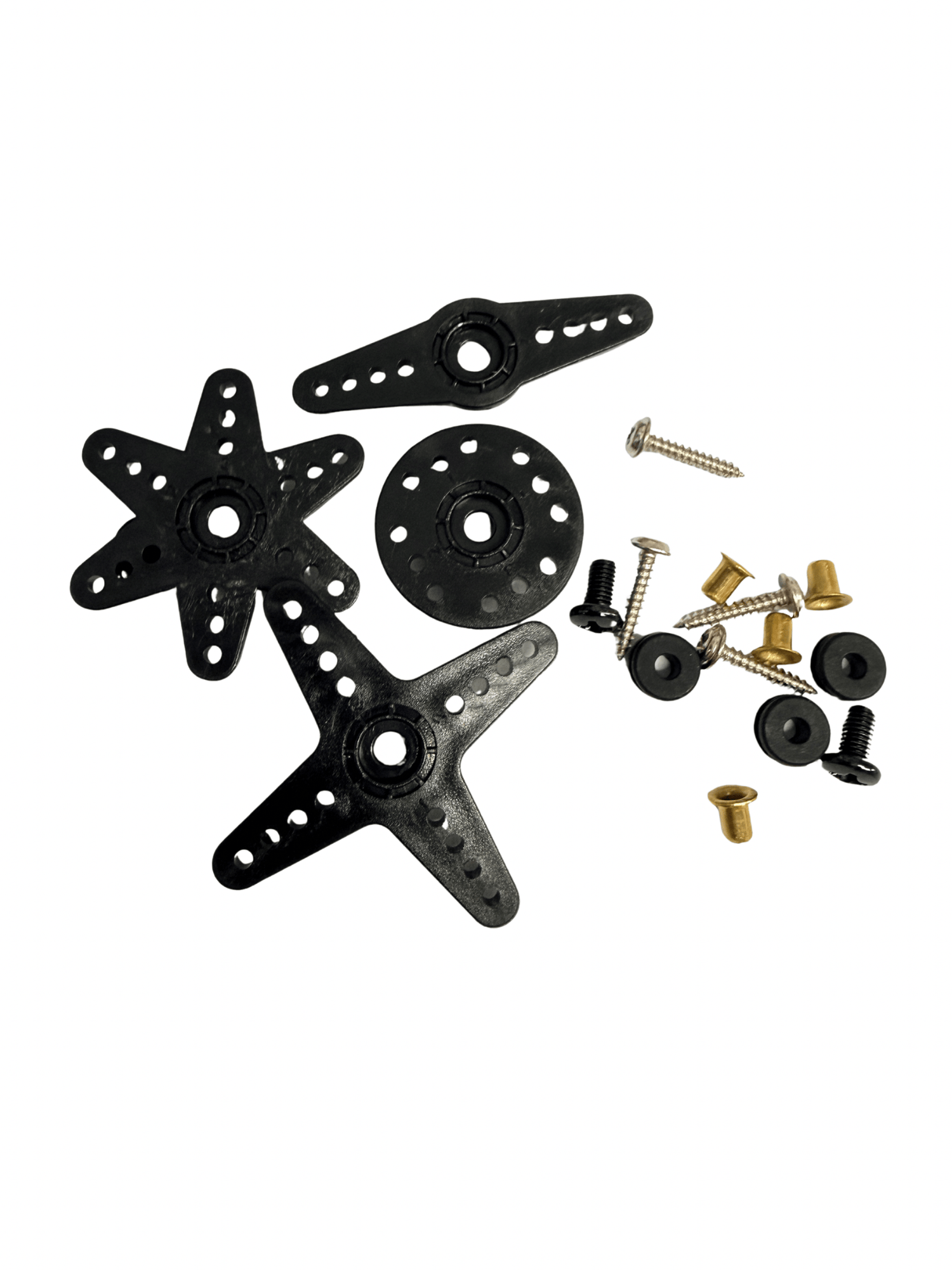

A standard 25-tooth output spline provides compatibility with a wide selection of commonly available servo horns and steering arms.
Key Features
Digital servo control for accurate steering response
Up to 15kg.cm stall torque at 7.4V
Metal gear drivetrain
Ball-bearing supported output
Standard-size servo case
Compatible with 6.0V and 7.4V systems
Standard 25T servo horn spline
300mm receiver lead
Suitable for a wide range of RC cars and trucks
Performance
At 6.0V
Operating speed: 0.16 seconds per 60° at no load
Stall torque: 14kg.cm
Stall current: 2.7A
At 7.4V
Operating speed: 0.14 seconds per 60° at no load
Stall torque: 15kg.cm
Stall current: 3.2A
Specifications
Specification Details
Brand Hobbytech
Model S0015D
Servo Type Digital
Motor Type Iron core
Gear Type Metal
Bearing Type Ball bearing
Weight 58g ±1g
Dimensions 40.8 × 20.1 × 38mm
Operating Voltage 6.0–7.4V
Operating Temperature -10°C to +50°C
Neutral Signal 1500μs
Signal Range 1000–2000μs
Operating Angle 45° each side at 500μs travel
Direction Anticlockwise
Dead Band Width 4μs
Output Spline 25T
Receiver Lead Length 300mm ±5mm
Idle Current 20mA
No-Load Current at 6.0V 200mA
No-Load Current at 7.4V 300mA
Wiring Information
Brown or black: Negative
Red: Positive
Orange or white: Signal
Compatibility Notice
Before installation, confirm that the servo’s dimensions, voltage range, output spline and connector wiring are compatible with your RC vehicle and receiver system. A suitable BEC or receiver power supply capable of handling the servo’s stall current is recommended.
