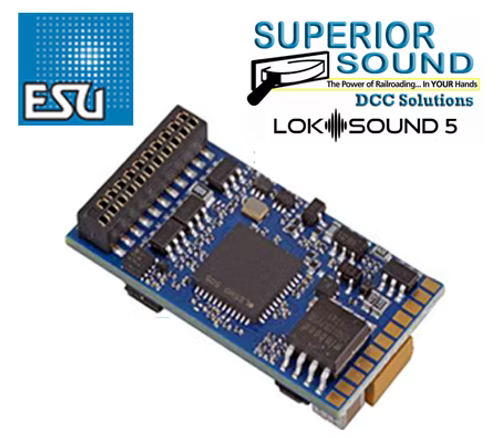

ESU LokSound 5 DCC Blank Decoder 21 Pin MTC NEM660 [54829]**

This is the ESU LokSound 5 DCC Blank Decoder 21 Pin MTC NEM660 [54829]

This ESU LokSound 5 DCC Sound decoder is pre-programmed with a DCC Solutions Custom Sound Project to suit your Australian Locomotive Model.

NOTE : This decoder does NOT include a speaker.

ESU is proud to present the brand-new LokSound 5 sound decoder, and it is the most important member of the LokSound family. Due to the combination of the digital decoder and the sound module on one circuit board, we achieve the smallest possible dimensions of 30 mm x 15.5 mm. Therefore, it fits into almost any HO or O gauge locomotive.

The LokSound 5 DCC decoder has a DCC & DC “Dual Mode” Operation, 2 or 4 Digit DCC Addressing, 14-28-128 Speed Steps, Locomotive Consisting and up to 32 Functions. It supports all DCC programming modes including POM (Programming on the Main) and also supports RailComPlus® that allows the decoders to register themselves automatically on suitable command stations. It also allows updating the internal firmware, making it future-proof. This means, the internal software on the decoder’s memory can be replaced by new versions supplied by ESU when new features, improvements, or bug fixes are released.

You would expect excellent motor control from a LokSound Decoder, and deservedly so! It would have to have the best motor control of any decoder, as the motor control of the LokSound 5 has been further improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz assures perfect silent operation, particularly for coreless motors. Thus, the typical hum is a thing of the past. Load control can now be adjusted with up to 10 separate CVs, and thus will manage even the most difficult cases. The unique “Auto Tune” function facilitates the automatic calibration of the decoder to perfectly match the motor. The LokSound 5 decoder supplies up to 1.5A motor current, which is sufficient even for older motor types.

Here at DCC Solutions we have tweaked and programmed the decoder to provide super slow speeds perfect for those who like their locos to move off slowly or like to operate shunting. So many motors will run even better with the LokSound 5 sound decoders.

The LokSound 5 decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz, and thus we have finally achieved hi-fi sound quality on your layout. A class D audio power amplifier with up to 3W output power feeds the speakers with a permitted impedance of 4 – 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity.

Subject to the type of interface, every LokSound 5 has at least 10 amplified outputs. The decoders with PluX22 or 21MTC interface have an additional 4 outputs for controlling servos or as logic outputs. Of course, all important lighting functions are supported. The brightness of each output may be adjusted separately.

Decoder Features:

• Pre-programmed with DCC Solutions Custom Sound Project
• 21 Pin MTC Socket for Direct Plug-In for DCC Ready Installs
• 1.5 Amp Current Rating
• Operates on DCC & DC Analog
• Next Generation BEMF with “Auto Tune”
• 10 Amplified Function Outputs
• Special Lighting Effects
• Supports use of LEDs for lighting
• Class D Audio Power Amplifier with up to 3W Output Power
• 16 Bit / 31250 kHz Hi-Fi Sound Quality
• Play 10 Sound Channels Simultaneously
• Up to 32 Function Mappings
• Overload protection for motor and function outputs
• Size 30 mm x 15.5 mm x 5.5 mm (1.18” x 0.61”)
• Uses 4, 8 or 16 Ohm Speakers
• Speaker Not Included
