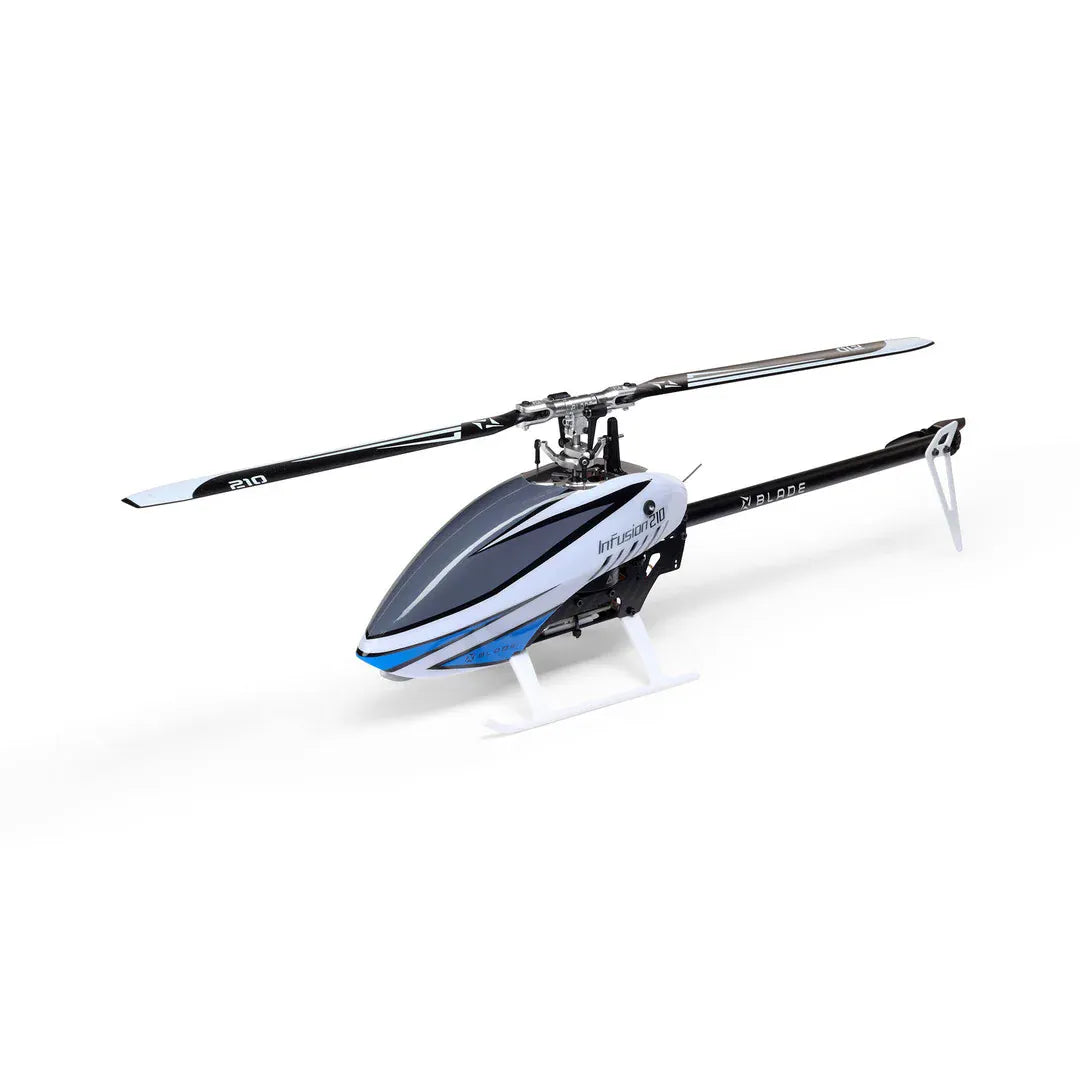

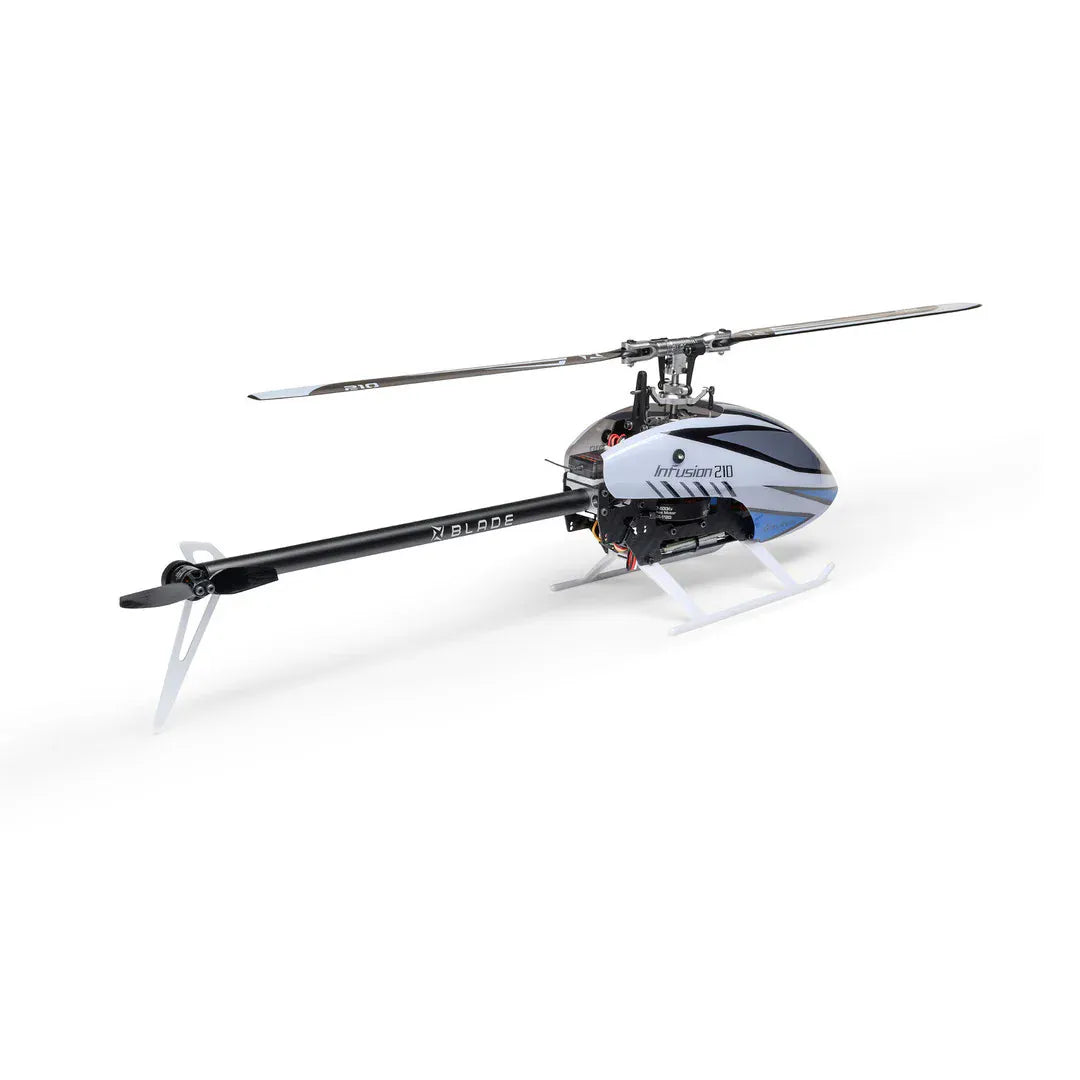

Blade InFusion 210 RC Helicopter, BNF Basic

This is the Blade InFusion 210 RC Helicopter, BNF Basic

Featuring an oversized direct-drive main motor, plus nearly all metal and carbon fiber construction, the InFusion 210 delivers performance and durability unlike any Blade® mini helicopter has before! It arrives fully factory assembled with a Spektrum™ flybarless control system that includes optional-use SAFE® technology and a Smart Transmitter File so you can have it bound to your favorite transmitter and flying within minutes of opening the box. Optional alternate color aluminum parts, canopies, fins, and landing gear are also available – along with a unique Belt Drive Conversion kit for the tail – so you can customize and personalize it just the way you like.

Blade InFusion 210 BNF Basic with AS3X and SAFE

The InFusion 210 features an all-new design engineered for next-level durability and performance, making it the most capable and best-flying Blade® “mini” helicopter yet! It features an oversized, direct-drive main motor that delivers instant power and a lower parts count. It also features nearly all metal and carbon fiber construction for excellent precision and strength. It's designed to be capable of smooth hovering plus sport flying for intermediate pilots yet is also capable of advanced and all-out 3D aerobatics in the hands of experienced pilots. The expertly tuned AR6250MHXF flybarless control system includes optional-use SAFE technology – which can be turned on and off at any time with a separate channel/switch – for angle limits and automatic self-leveling to help prevent crashes, plus no limits with AS3X in all flight modes. The brushless direct-drive tail motor and oversized aluminum tail boom keep the heli firmly locked in through even the most aggressive maneuvers. Or, in a class-leading first, an optional Belt Drive Conversion kit (BLH-2929, sold separately) is available that includes a factory-assembled tail assembly that's driven off the direct-drive main motor, along with a digital and metal geared servo plus all other required hardware, to deliver even more precise, powerful, and symmetrical tail control! Optional alternate color aluminum parts, canopies, fins, and landing gear are also available, allowing you to customize and personalize the InFusion 210 to your liking – including to match Fusion series helicopters.

The motors are connected to a Spektrum™ Smart Lite ESC that delivers real-time telemetry data to AirWare™ equipped transmitters, plus they're compatible with common and popular 3S 850–1000mAh batteries. Digital, metal-geared rotary servos, an all-aluminum head, and composite 210mm main rotor blades deliver reliable and precise control for the factory-assembled airframe. Best of all, the built-in Spektrum receiver is ready to bind to your 6–7+ channel Spektrum DSMX/DSM2 compatible transmitter, so no extra receiver or installation is required! It's also pre-loaded with a Smart Transmitter File (STF) that allows you to automatically import all the settings for NX and iX series transmitters during the binding process, so you can be flying in less time than any other model in its class.

Features

• An all-new design engineered for next-level durability and performance perfect for intermediate to experienced heli pilots
• Fully factory-assembled, flight-tested, and ready to fly right out of the box-no assembly or setup required
• “Mini” sized to fly indoors in large enough spaces and outdoors pretty much anywhere
• An oversized, direct-drive main motor that delivers instant power and a lower parts count
• AS3X smooths out the effects of wind and turbulence with no limits or self-leveling in all flight modes
• Optional-use SAFE technology can be turned on and off at any time in any flight mode with a separate channel/switch
• Equipped with updated SAFE technology featuring angle limits and self-leveling that helps prevent crashes and makes it easier to fly
• Ready for use with your compatible Spektrum DSMX/DSM2 equipped transmitter, battery and charger (sold separately)
  Receiver loaded with a Smart Transmitter File that allows you to import all settings for NX and iX series transmitters during the binding process
• Forward programming with compatible Spektrum transmitters allows you to adjust the AS3X/SAFE settings directly from the transmitter
• Compatible with popular and affordable 3S 850–1000mAh
  Smart and non-Smart LiPo batteries with IC2 connectors (or use a compatible IC2 adapter)
• Spektrum Dual Smart Lite ESC provides real-time battery voltage, motor RPM, and other data to compatible transmitters (with Smart and non-Smart batteries)
• Factory-installed Spektrum AR6250MHXF flybarless flight controller featuring exclusive AS3X and updated SAFE technologies
• Digital and metal-geared cyclic servos with precise ball-link equipped linkages
• Extremely strong and durable carbon fiber and aluminum airframe design
• Oversized diameter tail boom for increased rigidity and durability
• Full line of replacement/spare parts available
• First-in-class Belt Drive Conversion kit (BLH-2929, sold separately) that's driven off the direct-drive main motor to deliver even more precise, powerful, and symmetrical tail control
• Customize and personalize with alternate color aluminum parts, landing gear, and tail fins (sold separately)

• Optional red, white, and blue plus orange, white, and blue fiberglass canopies to match Fusion series helicopters

Skill Level 2 – Next Step Pilots (Some Experience Required)

Skill Level 2 – Next Step After a Trainer aircraft, like this one, are suitable for RC pilots who have successfully learned to fly a trainer helicopter model and those with the skills to assemble, set up and fly similar class models. Although the InFusion 210 is equipped with optional-use SAFE technology, it's not a suitable first-ever RC helicopter for new pilots. You should have the experience and skills necessary to successfully fly Collective Pitch (CP) helicopters like the Blade 230, 330, Revolution 155, 235, or other similar class models before attempting to fly the InFusion 210.

Bind-N-Fly Basic Completion Level Advantage

Already own a Spektrum™ transmitter? Bind-N-Fly (BNF) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos and a Spektrum 2.4GHz receiver installed so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly (transmitter, battery and charger sold separately)!

Smart Transmitter File

This BNF helicopter is equipped with a Spektrum receiver that is loaded with a Smart Transmitter File (STF) that makes programming your transmitter as easy as a few clicks of a button. When you bind your Spektrum NX or iX series transmitter to an STF-equipped aircraft, all programming parameters download automatically from the receiver if you choose. Switch assignments, rates, expo, pitch/throttle curves, telemetry, and voice callouts configure themselves. No lengthy step-by-step instructions. No continual adjustments. Just push-button convenience that gets you flying faster.

Exclusive Technologies

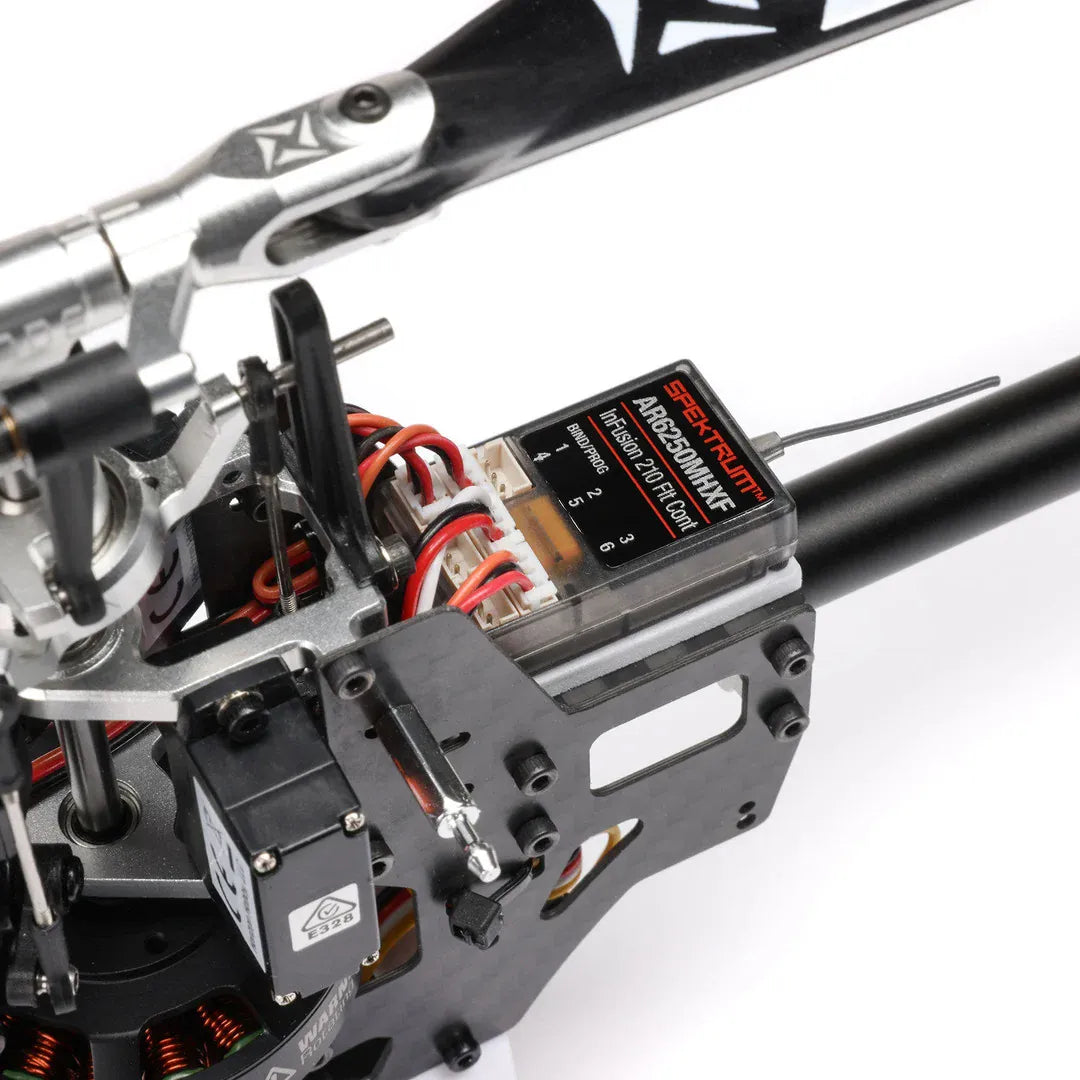

The factory-installed and expertly-tuned AR6250MHXF flybarless flight controller features exclusive Spektrum AS3X and optional-use SAFE technologies. The updated SAFE technology features angle limits and improved self-leveling to help prevent crashes, plus it can be turned on and off at any time in any flight mode with a separate channel/switch. That means you can easily “bail out” at the flip of a switch if you ever need to! AS3X smooths out the effects of wind and turbulence with no limits or self-leveling in all flight modes so you can fly inverted and perform aerobatics too.

Telemetry Capable

The InFusion 210 is equipped with a Spektrum Smart Lite ESC, flight controller, and a receiver that provides – with Smart and non-Smart batteries – real-time overall flight battery voltage, motor RPM, and other telemetry information to compatible Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/G3 and 8 G2, the DX9, NX6 to 20, the iX12 to 20, and others) while you fly.

Durable Precision

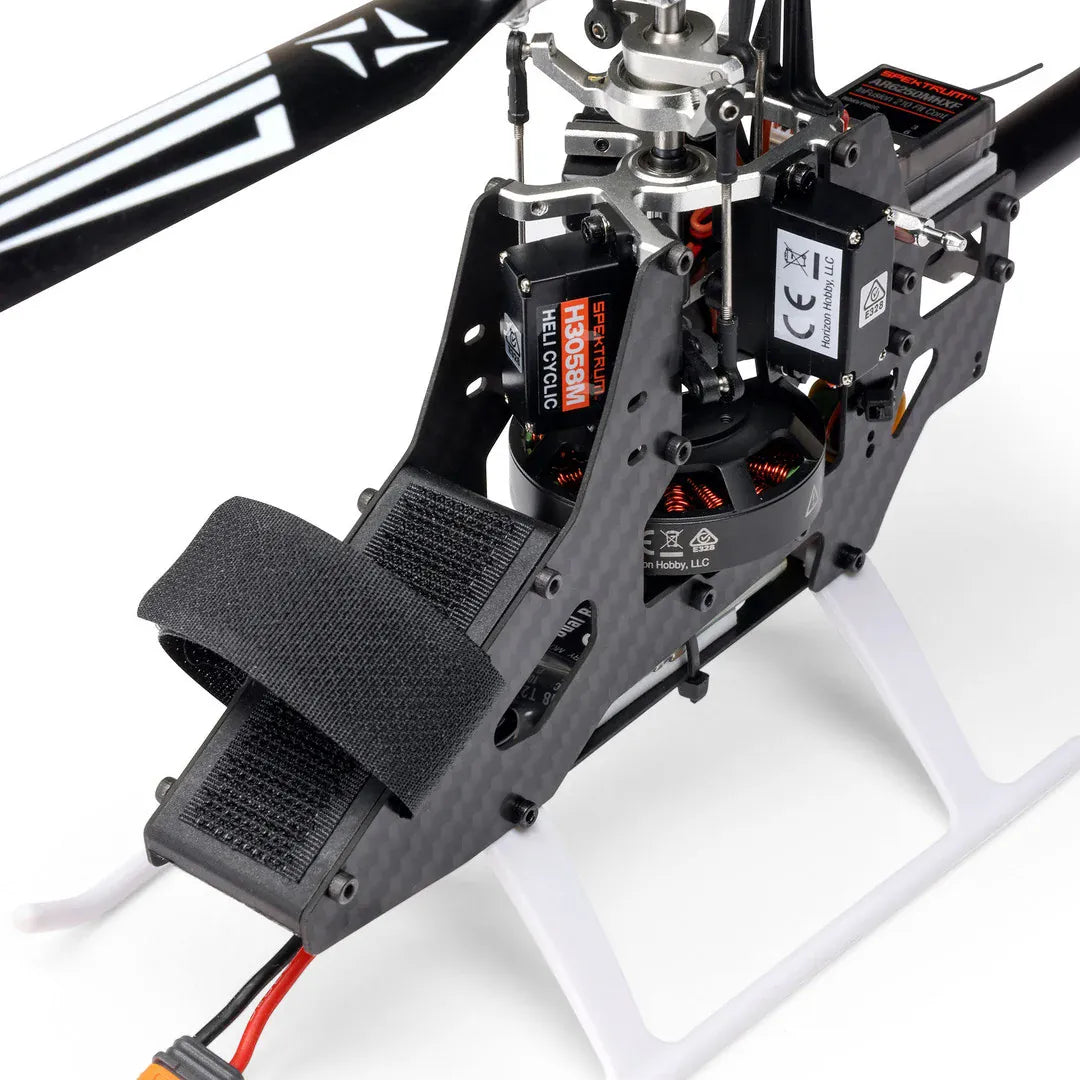

The digital, metal-geared cyclic servos – along with a nearly all metal and carbon fiber airframe – deliver excellent durability, precision, and unlimited capabilities for smooth hovering and sport flying to all-out 3D aerobatics.

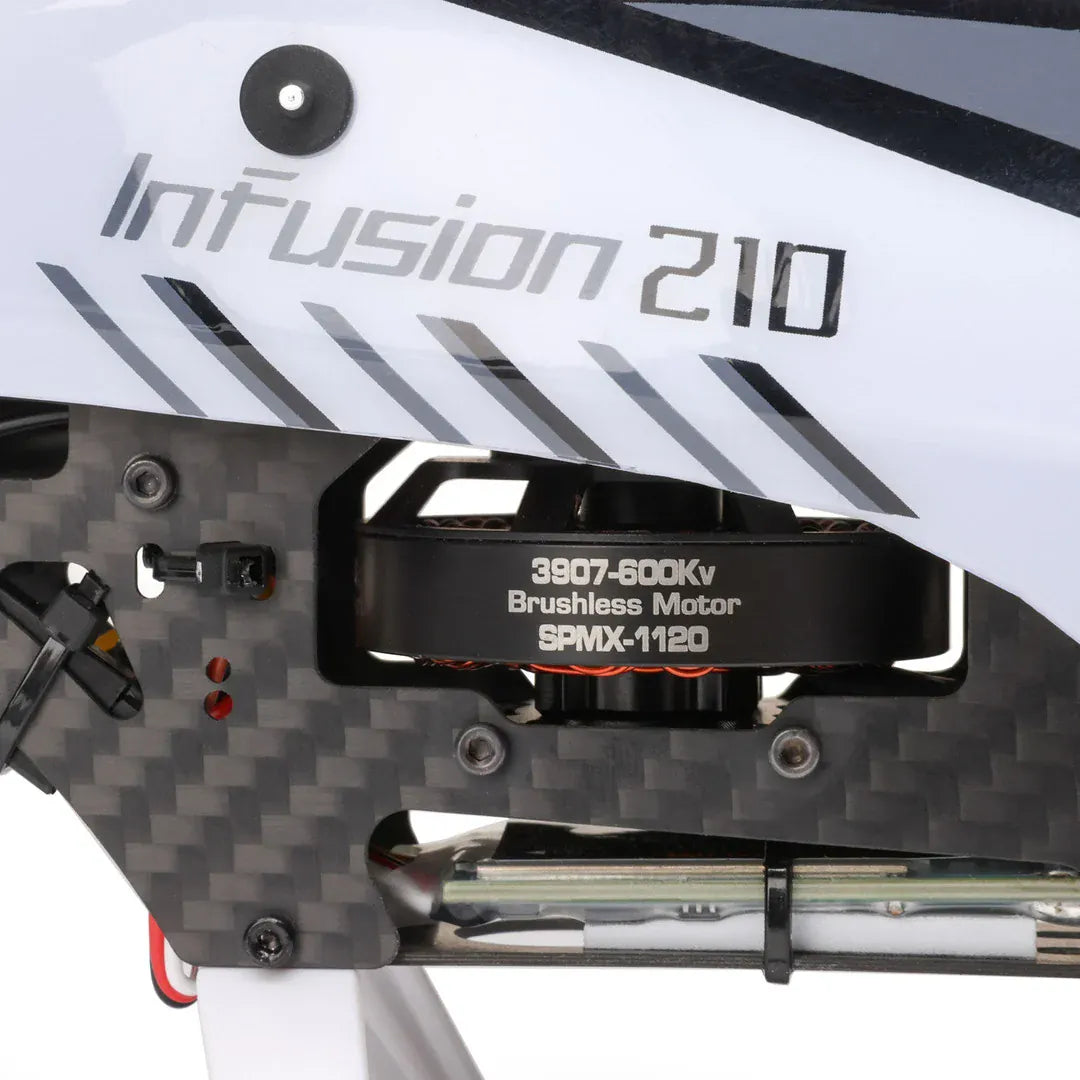

High Power

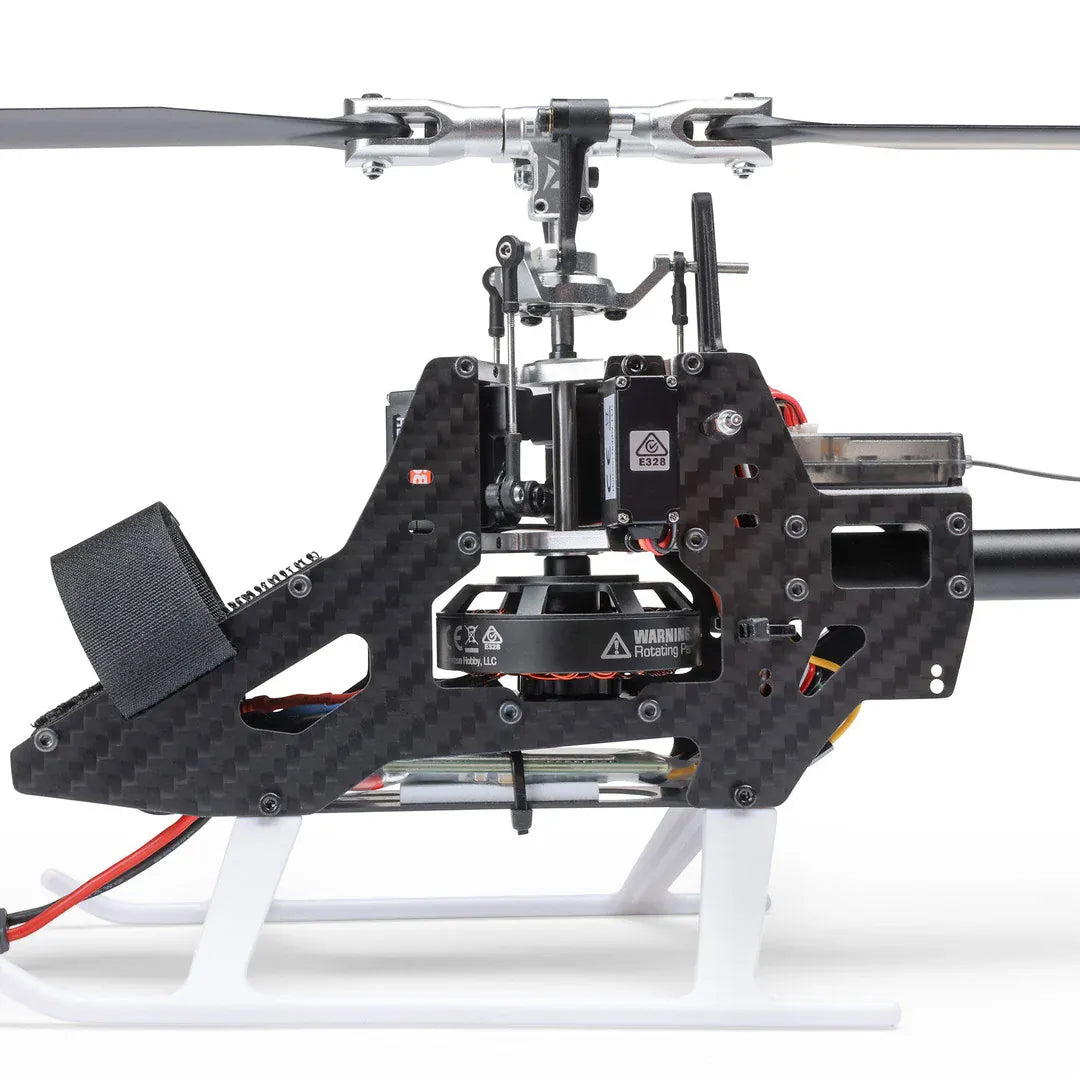

An oversized, direct-drive main motor delivers instant power and a lower parts count overall. The direct-drive tail motor and an oversized aluminum tail boom keep the heli firmly locked in through even the most aggressive maneuvers.

Optional Belt-Driven Tail

In a class-leading first, an optional Belt Drive Conversion kit (BLH-2929, sold separately) is available that includes a factory-assembled tail assembly that's driven off the direct-drive main motor – along with a digital and metal geared servo plus all other required hardware – to deliver even more precise, powerful, and symmetrical tail control.

Fully Assembled

The InFusion 210 arrives 100% factory-assembled, flight-tested, and ready to fly right out of the box! It's equipped with industry-leading Spektrum 2.4GHz technology that's ready to bind to most 6–7+ channel Spektrum DSMX/DSM2 equipped transmitters that are programmable for helicopters.

Option Parts

You can customize and personalize the InFusion 210 with alternate color aluminum parts, landing gear, and tail fins. There are also optional fiberglass canopies available in red, white, and blue plus orange, white, and blue to match Fusion series helicopters.

Replacement Parts

If you damage any airframe parts or components and can't repair them a full line of replacement/spare parts is readily available.

Contents

• Blade InFusion 210 with
• Brushless Outrunner Tail Motor (installed)
• Brushless Outrunner Main Motor (installed)
• Spektrum Digital, Metal-Geared Servos (installed) x 3
• Spektrum AR6250MHXF Flybarless Flight Controller and (1) Receiver with AS3X and SAFE
• Spektrum Dual 15A Main and 8A Tail Brushless Smart Lite ESC (installed)
• Main Blade Holder
• Product Manual

Requires

• Full-range 6–7+ channel Spektrum DSMX/DSM2 compatible transmitter (programmable for helicopters)

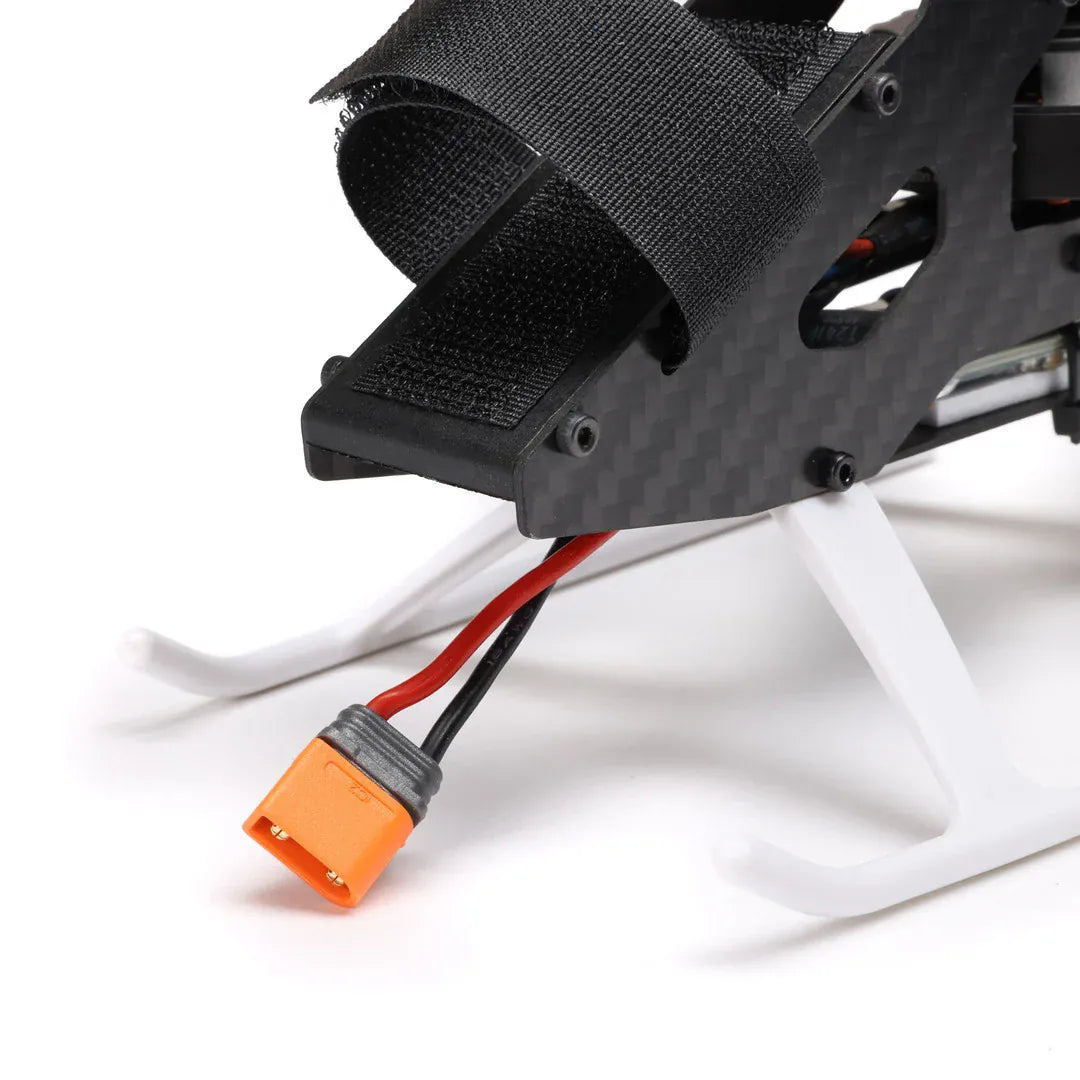

• 3S 11.1V 850–1000mAh LiPo battery with IC2 connector (or use a suitable IC2 adapter, sold separately)
• Compatible LiPo charger (plus a suitable IC2 adapter/charge lead, including SPMXCA320 or SPMXCA532, sold separately)

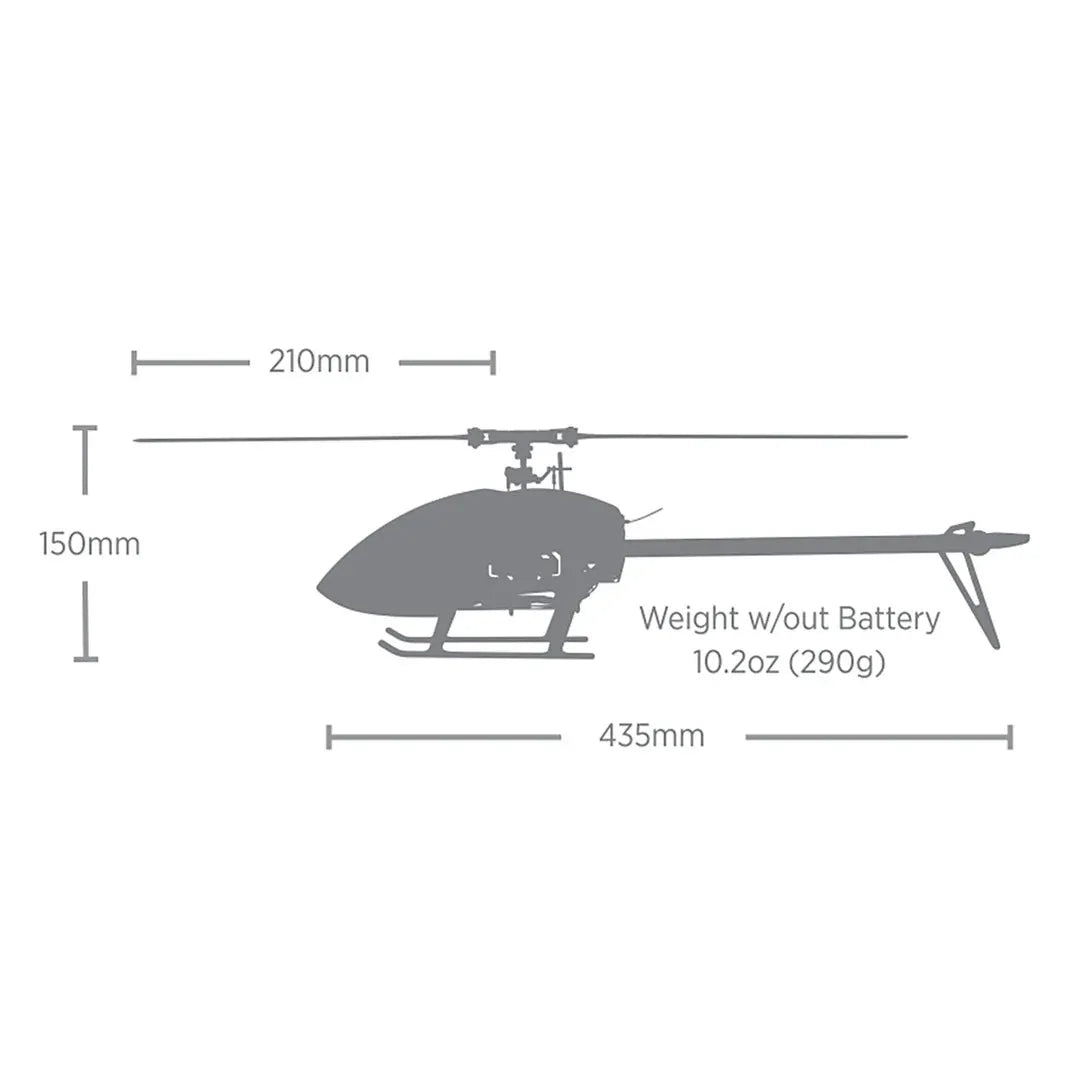

Specs:

Main Blade Material

Composite

Product Height

5.9" (150 mm)

Tail Motor Type

4200Kv Brushless Outrunner

Tail Rotor Diameter

3" (76 mm)

Canopy/Body Material

Plastic

Product Width

2.56" (65 mm)

Gear Ratio

1

Skill Level

Level 2

Power Type

Electric

Tail Blade Material

Plastic

Charger

Sold Separately

Approximate Assembly Time

No Assembly Required

Main Rotor Diameter

19.09" (485 mm)

Motor Size

3907-600Kv

Product Weight

Without Battery: 10.2oz (290g) / With Recommended 3S 850mAh Flight Battery: 12.66 oz (359g)

Main Motor Type

Brushless

Completion Level

Bind-N-Fly Basic

Recommended Motor Battery

850mAh 3S 11.1V 30C LiPo

Tail Drive

Direct Drive

Receiver

Included

Product Length

17.1" (434 mm)

Battery

Sold Separately

Main Frame Material

Carbon Fiber

Main Rotor Head Type

Collective Pitch Flybarless

Main Rotor Blade Length

8.2" (208 mm)
