Product details

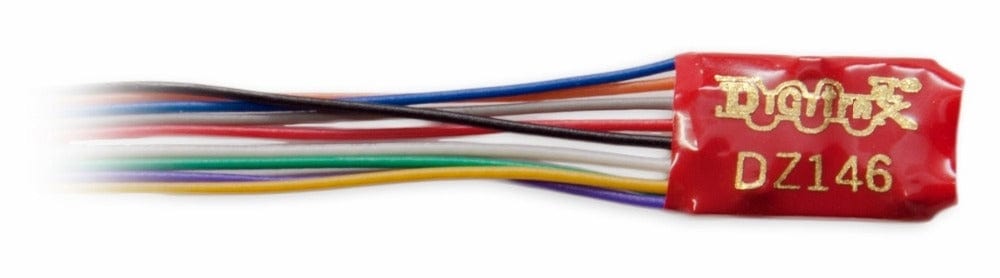

This is the Digitrax DZ146 1 Amp Z / N / HO Scale Wired Mobile Decoder.
Wired Motor & Function Decoder that fits many N and HO Scale Locos.
Size: .55” x .4” x .148”
14mm x 10.23mm x 3.77mm
Z/N/HO Scale
1.0 Amp/1.5 Amps Peak
4 FX3 Functions, 0.5 Amp
- FX3 Function outputs for prototypical lighting effects and on/off control:
- Constant Brightness Lighting with directional or independent control.
- Optimized selectable LED or incandescent lamp operation
- Realistic Effects like Ditch lights, Mars lights, strobes, and many more
- Configurable Pulse Function available on all function outputs.
- FX3 & Standard Function Qualifiers operate functions based on direction,
- F0 on or off, direction and F0, and whether loco is moving.
- Function Mapping for custom function setup.
- Master Light Switch turns off all lights & functions with one keystroke.
- Advanced Consist Function Controls.
- Digitrax LocoMotion® System-Your locomotives look like the real thing.
- The Digitrax LocoMotion System makes them run like the real thing, too!
- Scaleable Speed Stabilization (Back EMF) with simple setup & 256 level resolution.
- Torque Compensation.
- 128 Speed Step operation (14 or 28 steps can also be used).
- Momentum with acceleration and deceleration.
- Normal Direction of Travel is user selectable.
- Switching Speed feature for easier and faster access to yard speeds.
- 3 Step Speed Tables set start, mid and max voltage for custom control.
- 28 Step Speed Tables with 256 level resolution for precise control.
- Program CVs using any Digitrax Compatible Control system without havingto buy any extra equipment.
- 2 Digit and 4 Digit Addressing.
- Basic, Advanced & UniVersal Consisting.
- SuperSonic motor drive for silent operation.
- Direct mode programming.
- Decoder Reset CV with or without speed table reset.
- Transponder Equipped ready for transponding on your Layout.
- Motor Isolation Protection helps prevent damage to your decoder.
- Automatic Analog Mode Conversion when running on DC layout.
- Decoder Lock for individual programming of multiple decoders in one loco.
Specifications
- Current Rating-Motor: 1.0 Amp/1.5 Amps Peak
- Size: 0.55” x 0.4” x 0.148” (14mm x 10.23mm x 3.77mm)
- Installation: Wired
- Function Outputs: 4
- Function Type: FX3
- Features: Series 6
- Current Rating-Functions: 0.5 Amps for all functions
