Digitrax SDXH167D Series 7 Premium Sound Decoder
Digitrax SDXH167D Series 7 Premium Sound Decoder is backordered and will ship as soon as it is back in stock.
Please note: Card payments may require additional verification (click to learn more)
Couldn't load pickup availability
-
Description
-
Returns
-
Shipping

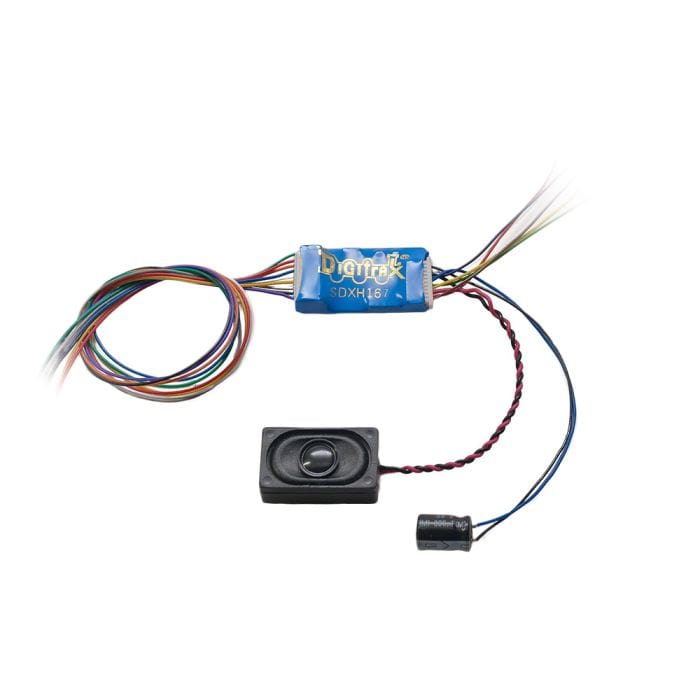

This is the Digitrax SDXH167D Series 7 Premium Sound Decoder
Decoder Features:
- 8 CV-Selectable Steam & Diesel Sound Schemes Included
- Mobile Decoder with SoundFX v3
- Fits many HO locomotives
- Digitrax 9-Pin Harness
- Motor 1.0 Amp/2 Amps Peak
- 6 FX3 Functions, 200ma Output
- New sound .spjs loadable with Digitrax USB programmer
- 10-Pin sound harness with 8 Ohm 16 x 26 x 9mm Box Speaker
- 300uF Capacitor
Digitrax SoundFX® Sound System Your locomotives will sound in scale like the real thing with SoundFX
- Your locomotives will sound “in scale” like the real thing with SoundFX v3
- Customizable with 16, 12 or 8 bit .wav file sounds
- Works with all SoundFX 8 and 16 bit sound projects
- Up to 4 simultaneous voices
- Download sounds with a Digitrax Sound Programmer and SoundLoader II
- 4 megabit On Board Sound Memory
- Cam input-synchronized steam-chuff option for steam locos
- Scalable Speed Stabilization configured for sound operation
Easy Programming and Installation
- Smart Power Management-no more booster or programmer shutdowns!
- Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment.
- Digitrax Easy Connect 9 Pin Plug for Track, Motor and Function Control.
- Direct mode programming.
- Decoder Reset CV with or without speed table reset.
Series 7 Decoder Features
- Works with PX112-10 Power Extender, up to 15V maximum on track
- Digitrax FX3 Functions-Control lights and functions for prototypical lighting effects and on/off control
- Configurable FX3 Pulse Function available on all function outputs
- Digitrax LocoMotion® System – Lets your trains run like the real thing!
- 2 Digit and 4 Digit Addressing
- Basic, Advanced & UniVersal Consisting
- SuperSonic motor drive for silent operation
- Direct and Operations Mode programming
- Decoder Reset by CV8, with or without speed table reset
- Transponder Equipped ready for transponding ID on your layout
- Power-on Motor Isolation Protection, helps prevent damage to your decoder
- DCC Compatible
- FCC Part 15, Class B RFI compliant
- Operates on DCC track voltage 9V minimum to 18V maximum
