Description

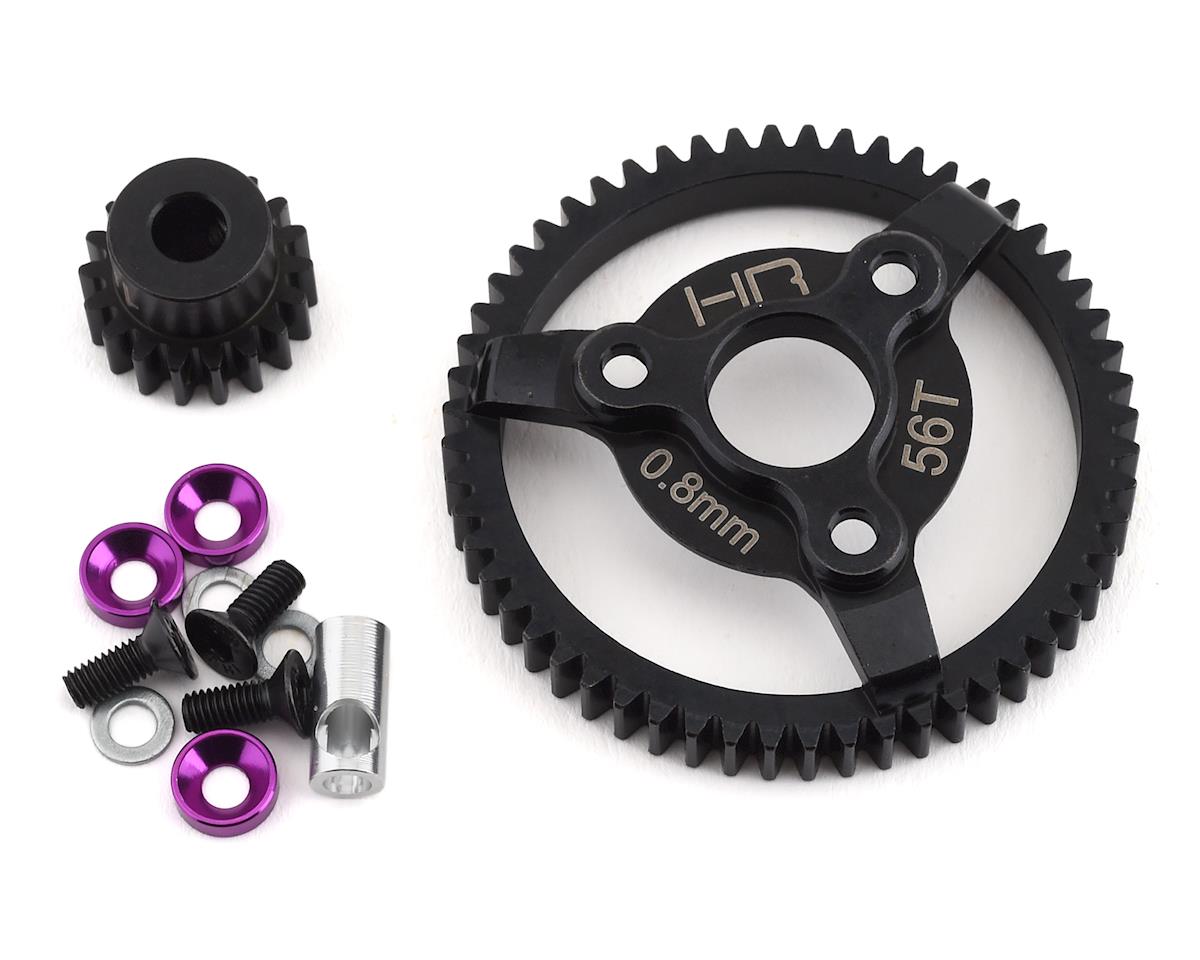

This is an optional Hot Racing 32 Pitch Steel Pinion and Spur Gear Set for use with the following Traxxas 2WD models: Bandit, Rustler, Slash and Stampede.
Features:
- CNC machined and lightened hardened steel construction
- Replaces stock nylon spur gear
- Rugged 0.8 Module/32pitch teeth for total reliability on brushless power
- Aluminum pinion sleeve to allow for either 1/8 inch or 5mm motor shafts
- Black oxide coated gear for durability and corrosion resistance
- Purple anodized countersunk aluminum washers
- High strength hardware
Specifications:
Number of Teeth: 18T/56T
Gear Pitch: 32 pitch (0.8 module)
Mounting Holes: 3
Tooth Face width: ~5mm

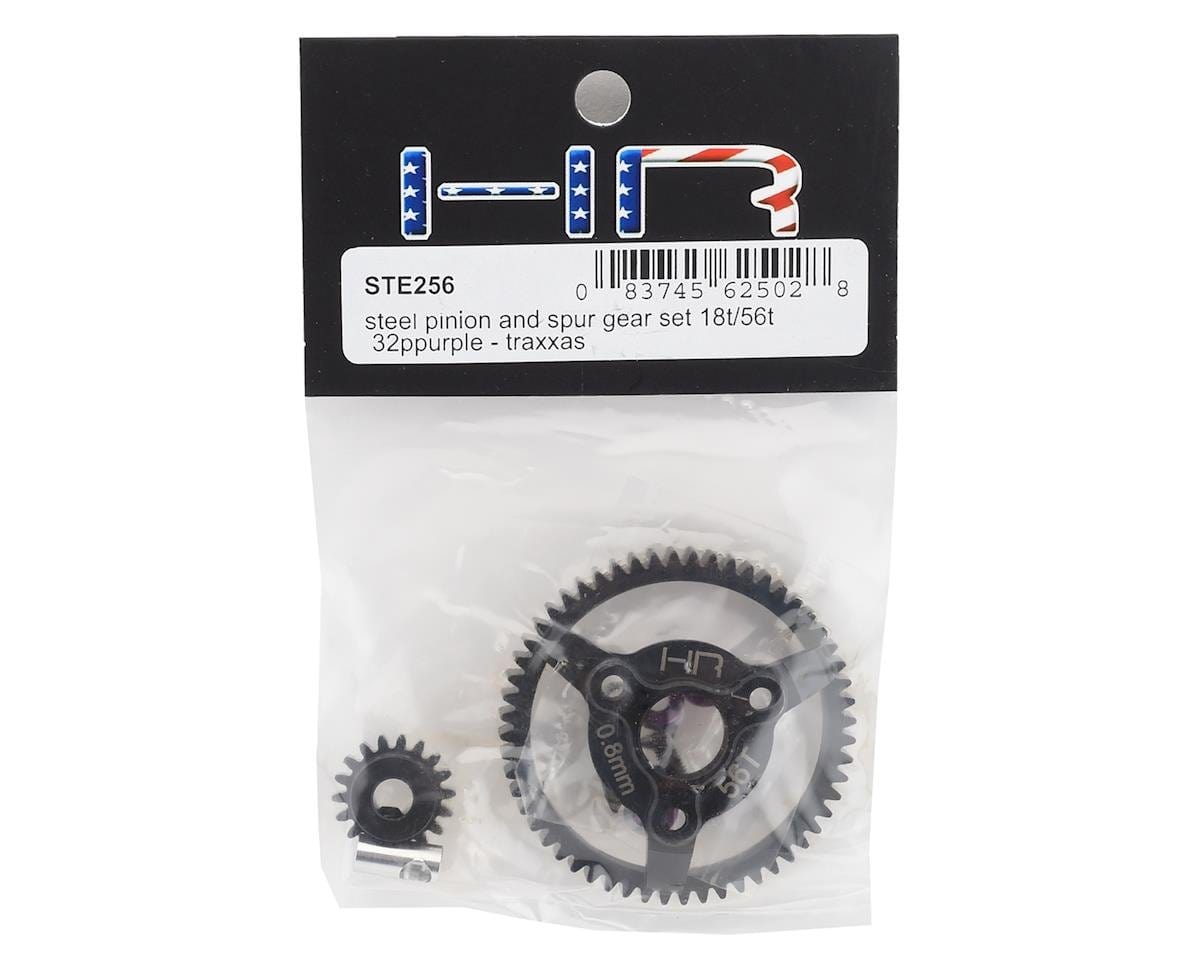

Includes:
- (1) 18 tooth 32 pitch (0.8 Mod) pinion gear
- (1) 56 tooth 32 pitch (0.8 Mod) spur gear
- (3) mounting screws
- (3) purple anodized countersunk washers
- (1) pinion adapter sleeve
- (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur backing plate)
NOTES:
- Consider using Hot Racing motor lock plate HRATE18L06 for secure motor mounting
- Motor should no way exceed 180F. ESC should not exceed 160F. Excessive temperatures will shorten the life of the motor and ESC.
