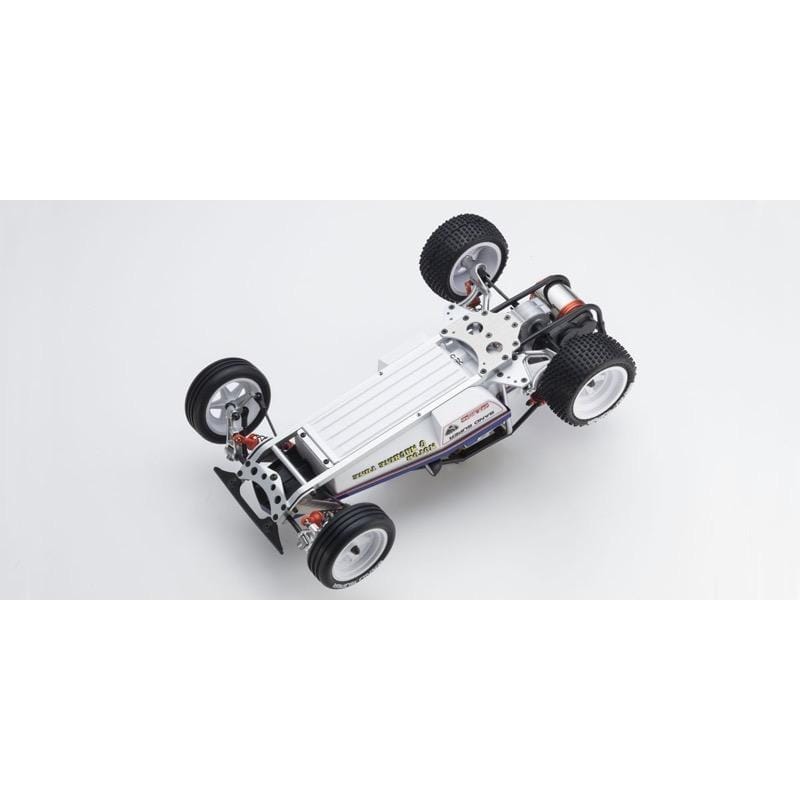

Kyosho 30616 1/10 EP 2WD Turbo Scorpion Buggy Kit
Kyosho 30616 1/10 EP 2WD Turbo Scorpion Buggy Kit is backordered and will ship as soon as it is back in stock.
Please note: Card payments may require additional verification (click to learn more)
Couldn't load pickup availability
-
Description
-
Warranty
-
Returns
-
Shipping
This is a Kyosho 30616 1/10 EP 2WD Turbo Scorpion Buggy Kit RC Car
More performance and style with improvements to each key component, this machine is more than just a reproduction!
As the 5th model to make its return as part of the vintage series, the ever-popular Scorpion released in 1982 was re-launched 2 years ago and has undergone a detailed overhaul to match modern performance with retro styling. The new Turbo Scorpion remains true to the essence of the unique Scorpion design throughout, but features Scorpion-style wheels in the larger 2.2 inch modern standard wheels for improved off-road performance. In addition, 12mm oil shocks based on the Optima deliver rock-solid running stability and excellent damping characteristics that work in combination with high-grip front and rear tires with a 20mm wider front tread and 10mm longer wheelbase than the original Scorpion to realize improved control and handling performance. With a thorough modernization, the new Turbo Scorpion is ready and willing to accept modern-day power sources and compete on modern race circuits. The standard Turbo Scorpion is a fully optioned chassis configuration and is ready to take the punishment that goes with hard driving.
Features
-
Turbo Scorpion updated to meet the demands of the modern off-road racing scene.
-
Kit includes pre-assembled gearbox.
-
Features same racy-style mini bumper as the original.
-
Rear section reinforced with Rear Sus Post L, strengthened by added flange.
-
Features accurate recreation of the original loop-mount light buckets. Optional LED lights can be simply bolted on.
-
Screwed surfaces are countersunk for flat finish.
-
Decals included in kit are die-cut. Stretch for easy application and beautiful body finish.
-
Recreation of the original body design. Roll bar position moved back 6mm and compatible with the original light buckets from the first Scorpion.
-
Stylish design features modern standard 2.2 inch wheels with a 20mm wider front tread & 10mm longer wheelbase than the original Scorpion.
-

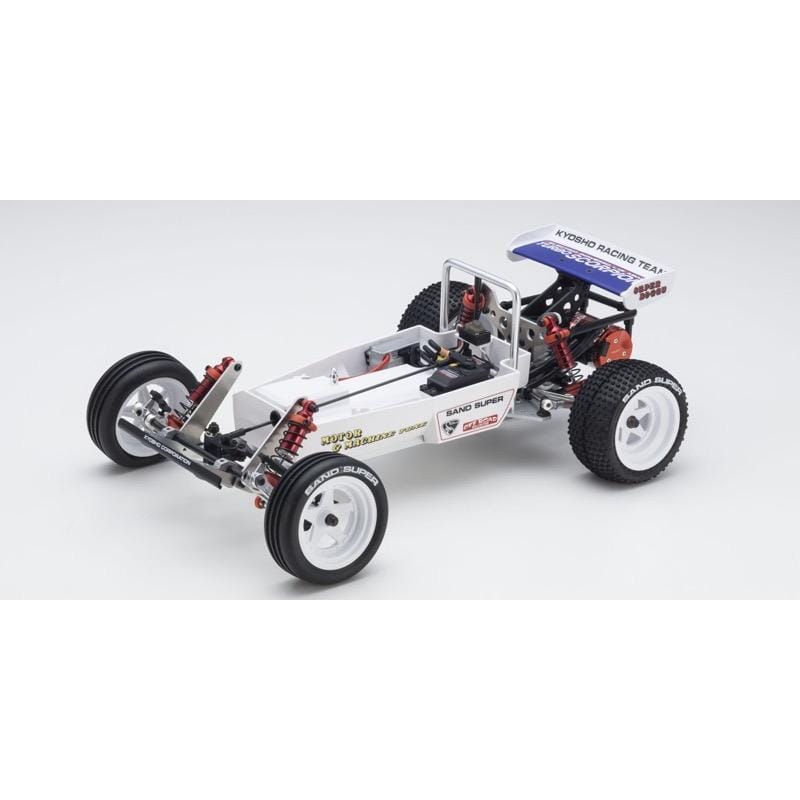

Ladder frame is made from strong and lightweight A6061T6. The radio box is compatible with various battery types and with the same white color as the original recreates that racy style.
-
Forged A6061T6 suspension arms deliver superior strength, rigidity and durability and combine with 12mm oil shocks based on the Optima to realize high-level performance.
-
Optimal use of nylon and sintered alloy in the 48 pitch gears realizes low noise and high efficiency. Optional ball diff for the Ultima RB can be installed.
-
Gear cover enclosing two-piece aluminum diecast gearbox with built-in gear diff features a slipper clutch to protect gears from damage.
-
Soft compound removes understeer from ribbed front tires. Block-pattern rear tires maintain sure-footed grip and traction.
-
Equipped with modern standard 2.2 inch wheels in the 5-spoke style of the original Scorpion era that are normally sold as an optional upgrade for the vintage series.
-

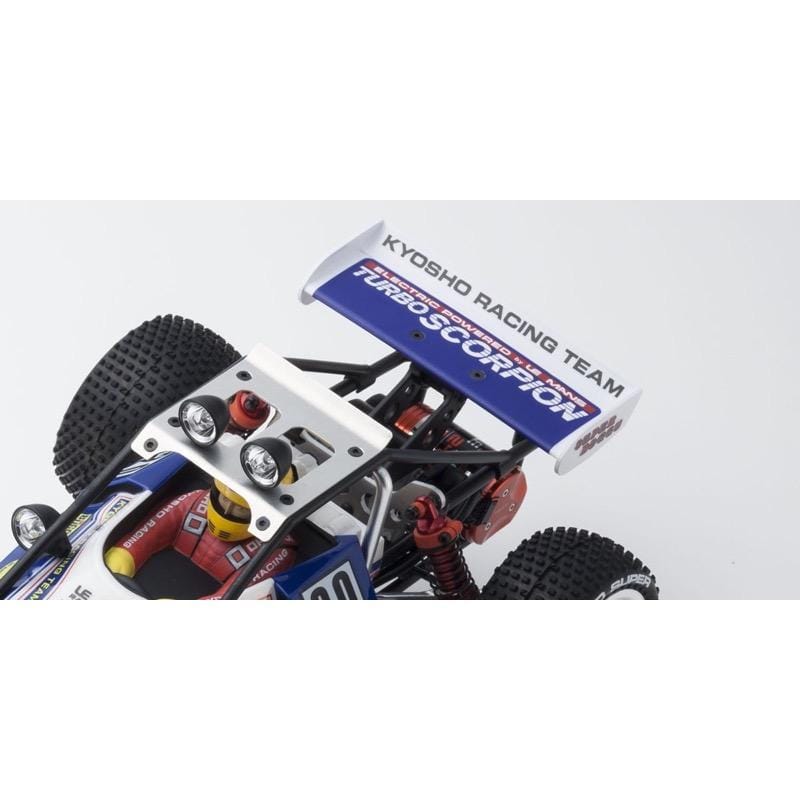

White rear wing included matches vintage color scheme with reinforced nylon resin wing stay. Kit also includes resin parts that allow the wing angle to be adjusted.
Specifications
- Length 408mm
- Width 256mm
- Height 145mm
- Wheelbase 273mm
- Tread (F/R) 218mm/215mm
- Tire(F/R) Φ82×27mm / Φ86×42mm
- Gear Ratio 6.9 : 1 / 8.3 : 1 (select from 2-type)
- Weight 1,500g (approx.)
- Motor 540-type (sold separately)
Contents
-
Pre-assembled kit (gear box is pre-assembled)
-
Polycarbonate clear body
-
Decals
-
Chassis parts
-
L type hexagonal wrench
-
Cross wrench
-
Shock wrench
-
Shock oil
-
Grease
Needed To Complete
-
2ch 1 servo R/C system for cars
-
540 class motor
-
ESC compatible with motor used
-
Battery for chassis compatible with ESC used
-
Battery charger
-
Paint for polycarbonate body
-
Batteries for transmitter
-
Tools (1.5, 2, 2.5mm hexagonal wrench driver)
Manuals
All RC Vehicles sold by Hobbytech Toys come with a 30-day manufacturer’s warranty specifically covering electronics. For all other parts, warranty coverage is assessed on a case-by-case basis.
Hobbytech Toys is committed to fair treatment when it comes to honoring warranties. However, it is important to note that warranties do not cover damages resulting from accidents or crashes. Breakages or failures caused by misuse, abuse, or inadequate maintenance are also not considered warrantable.
No drivetrain, suspension, or gears come with any warranty unless they are incorrectly fitted by the manufacturer. Due to the nature of how RC Vehicles are operated, Hobbytech Toys cannot provide warranties for damages incurred during regular operation.
By opening and using your RC vehicle, you accept our terms outlined above. If you do not accept the terms, please return your unopened and unused product for a full refund.
While bringing the part into our store is the preferred method for quick and accurate assessment, we understand that not all customers may be local. In such cases, we will make every effort to assess or diagnose the item without requiring it to be sent back to our store. However, in some instances, postage back to us may be necessary.
Please be aware that postage costs are generally not covered by our warranty policy. Nevertheless, to maintain fairness, we will cover the shipping costs for replacement parts from our warehouse or store to your designated address if the item is deemed faulty.
Product Warranty Does Not Cover Modified Products – Modifying the product in any way voids the warranty offered by our manufacturers. This includes painting, gluing, cutting, soldering, modifying electrical connectors on Motors / ESCs / Batteries, or modifying a product in any way. If you attempt to return a product which has been modified, your warranty claim will be denied, and the product will be returned at your expense
General tips for getting the most from your RC product
- Read the manual. This will give you all the information needed about any building required, pairing the radio and more. Keep the manual in a safe place for future reference.
- Check that steering, flaps, rudder etc are operating correctly before use - Test all Transmitter functions & range test before use as well. Inspect and check that all nuts, bolts and screws are tight.
- Only use good quality batteries in the transmitter. We recommend and stock GP batteries but any good quality, non-rechargeable battery will work best.
- If you are using a Lipo battery, ensure that the Lipo cut off mode is set in your ESC.
- Be mindful of other people, animals, and property in the area around your RC vehicle.
- Always unplug & remove the battery from your RC vehicle when not in use.
- Turn your transmitter on first and ensure the throttle is down or in the neutral position before plugging your battery in.
- Always unplug or turn off your RC vehicle before the transmitter/remote is turned off, the transmitter/remote should always be turned on while the RC vehicle is switched on.
- Reverse polarity (plugging the battery in the wrong way) damage is not covered by warranty.
- Once the RC vehicle starts to appear to be slowing down it is time to stop. Don’t keep using the RC vehicle until it comes to a dead stop as this will damage the battery.
- Liquid ingression and/or water damage is not covered under warranty.
- Warranty for cars does not cover user error or physical damage – see below.
- Electronics will not be covered under warranty if the factory installed gearing or connectors have been changed
- Even though the manual/box says waterproof it is more a case of splash proof and not total immersion. Riding through puddles is considered immersion by many manufacturers and the resultant water damage may not be covered by warranty. Consult your vehicles manual for clarification. READ THE FINE PRINT regarding maintenance required after getting your RC Car wet.
- Never clean your car with water, only use compressed air or a suitable brush or cloth
- Only use the shock oil and other lubricants recommended by the manufacturer
- Manufacturers only guarantee items free from manufacturing defects. Any damage during a race or use is not a manufacturing defect. It is not covered by warranty.
- Rock crawlers that go through water will usually need to be pulled apart, cleaned, re-greased and be re-assembled as the water will damage the running gear of the car.
- Water in the tyres will cause the foam inserts to rot, this can be avoided by blocking the vent hole of the wheel or avoiding water. Water damage is not covered by warranty.
