This is a Phoenix Model Edge RC Plane, .46 Size ARF [PHN-PH092]
The Edge 540 is the most common aircraft used in the Red Bull Air Race World Series, in fact, all champions of the World Series have flown this aircraft.
Features
- Designed for compatibility with both GP and EP flight
- Covered in genuine ORACOVER®
- Bolt on two piece wing for easy transport and setup at the field
- Removable canopy for easy change lipo battery and set up radio
- Strong Light Weight Construction
- High quality hardware package included
Product Information
The Edge 540 is the most common aircraft used in the Red Bull Air Race World Series, in fact, all champions of the World Series have flown this aircraft.

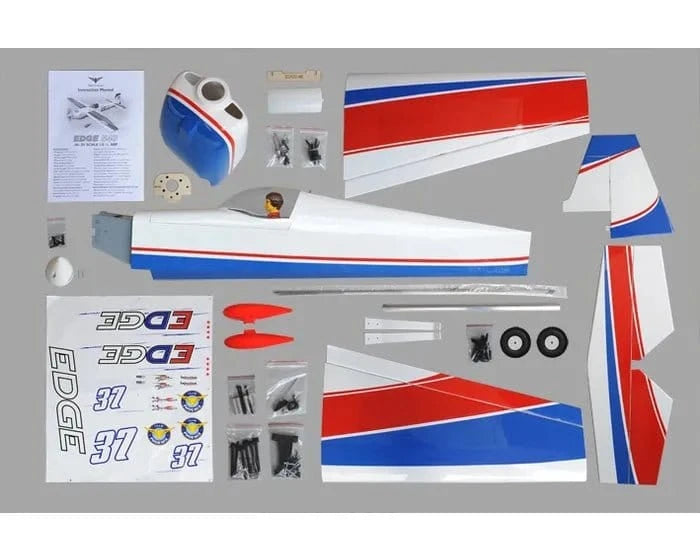

Phoenix’s Edge 540 is naturally slower but is engineered to perform equally thrilling manoeuvres! The scale-like model is able to perform flat spin, knife edge and much other difficult aerobatics. The Edge 540 is expertly handcrafted from balsa and plywood using the only epoxy and CA glues. You can fly this plane after few hours of installation. All the hardware are included (servo wire, fuel tank, wheel/landing gear, etc). You only need to separately purchase the nitro engine and radio system.
Specs
Wingspan 1407mm (55.3 in)
Length 1353mm (53.2 in)
Flying weight 2800-3200 gr
Wing area 35.3 dm2
Wing loading 80g/dm2
Wing type Naca airfoils
Covering type Genuine ORACOVER®
Gear type Aluminum Hi-grade for main gear and spring wire for tail gear (included)
Spinner size Plastic 58mm (included)
Radio 4 channel minimum (not included)
Servo 5 standard servo2 aileron; 1 elevator; 1 rudder; 1 throttle (not included)
Recommended receiver battery 4.8-6V / 800-1200mAh NiMH (not included)
Servo mount 21mm x 42 mm
Propeller suit with your engine
Engine .46-.55 / 2-stroke or .52/4-stroke glow engine (not included)
Motor brushless outrunner 1000-1400 W, 480 KV (not included)
Experience level Intermediate
Plane type Scale Aerobatic
RECOMMENDED MOTOR AND BATTERY SET UP
Motor RIMFIRE .46-.55 (not included)
Lipo cell 6 cells / 4000 – 5500mAh (not included)
Esc 50-80A (not included)
