RCGF STINGER 35cc 2 Stroke Gasoline Engine
Similar Items
View AllProduct details

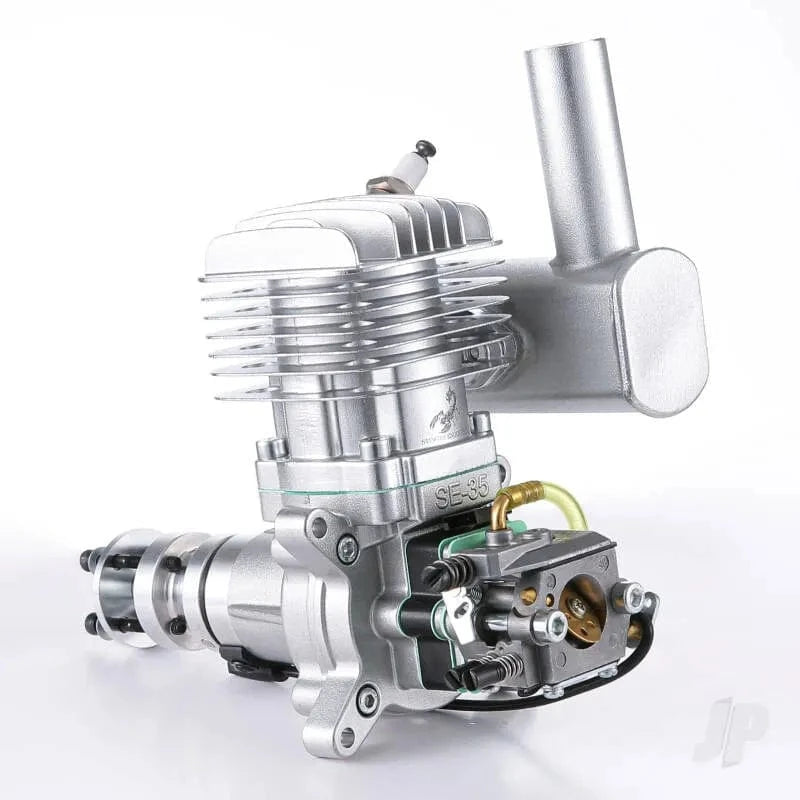

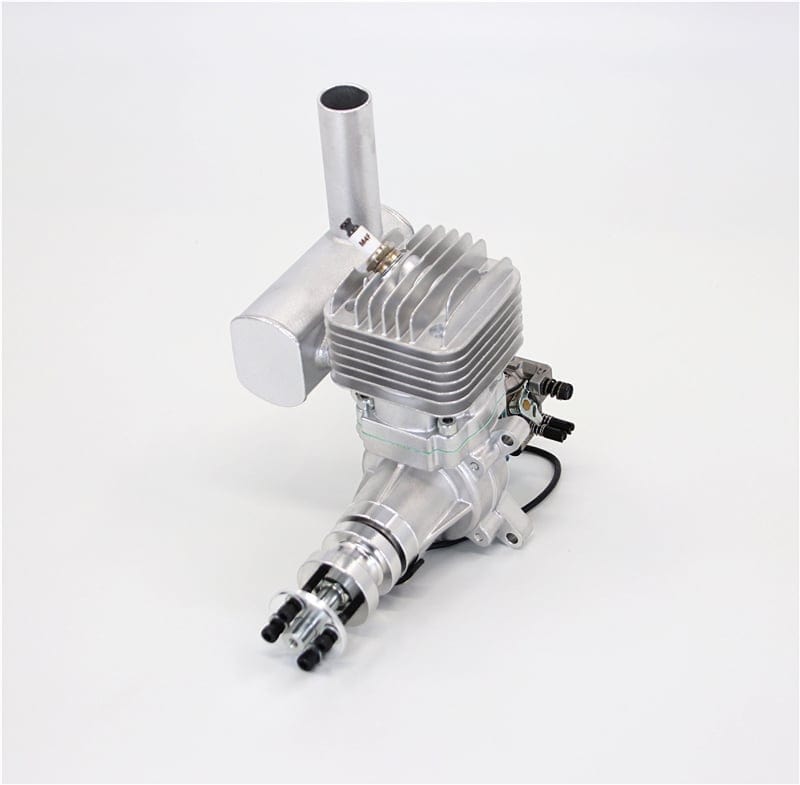

This is the RCGF STINGER 35cc 2 Stroke Side Exhaust Gasoline Engine.
RCGF engines have proven themselves the world over for quality and reliability. Following on from the popular RCGF 35cc rear exhaust comes this side exhaust version which is perfect for where a rear exhaust is difficult or not practical to install. It still comes with the DA style ported head which gives plenty of power and it is very easy to tune while still maintaining a smooth idle. The supplied electronic ignition adjusts the timing automatically to give peak performance throughout the entire rev range.
The rear induction carburetor is perfect for scale airplanes with tight engine cowls. The engine includes standoffs for mounting to engine boxes and firewalls, spark plug, muffler and electronic ignition module. Just add an ignition battery, prop, and mount it up to your favorite airplane.
A feature of RCGF engines is that every one is test run and the Walbro carburetor is tuned before it leaves the factory. However, due to different altitudes and weather conditions slight adjustments will be necessary when you run your engine for the first time.
Features:
• All cast aluminum crankcase
• Walbro rear intake pumper carb
• 4 bolt prop mount
• Compact side mounted muffler with gasket
• Auto advance electronic ignition module
• Mounting standoff spacers included
Specs:
Type: 2 cycle gasoline engine
Piston Displacement: 35cc
Bore and Stroke: 39 x 30mm
Max Power Output: 4.2hp @ 9000rpm
Rev Range: 1500~9000rpm
Power Supply (for ignition unit): 4.8~6.4V
Suggested Propeller: 18x8, 18x10, 19x8, 20x8
Spark Plug: NGK CM6
Carburetor: Walbro
Cooling System: Air cooled
Ignition: DC-CDI computer controlled auto advance electronic ignition system
Weight: 1240g (inc muffler and ignition)
Recommended Fuel/Oil Ratio: 30:1 90 Octane unleaded gasoline and 2T Oil
Included:
RCGF 35cc side exhaust gas engine
Electronic CDI ignition unit
Side exhaust muffler with gasket
NGK CM6 spark plug
Set of stand offs
Set of prop bolts
Power harness
Instruction manual
Required:
4.8~6V 1200mAh or larger capacity battery
Suitable propeller
2 stroke 30:1 gasoline mix
