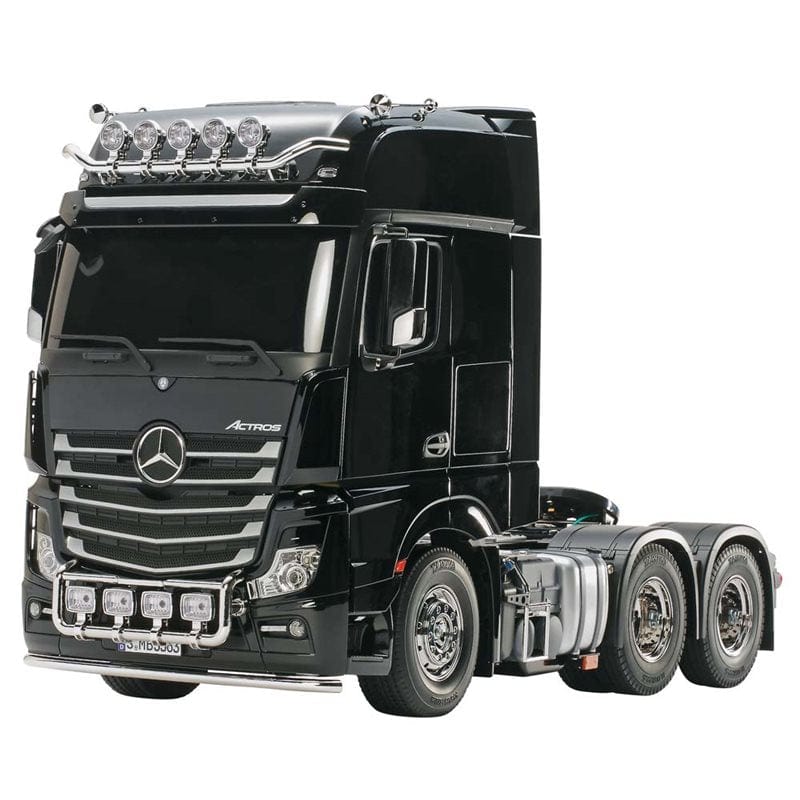

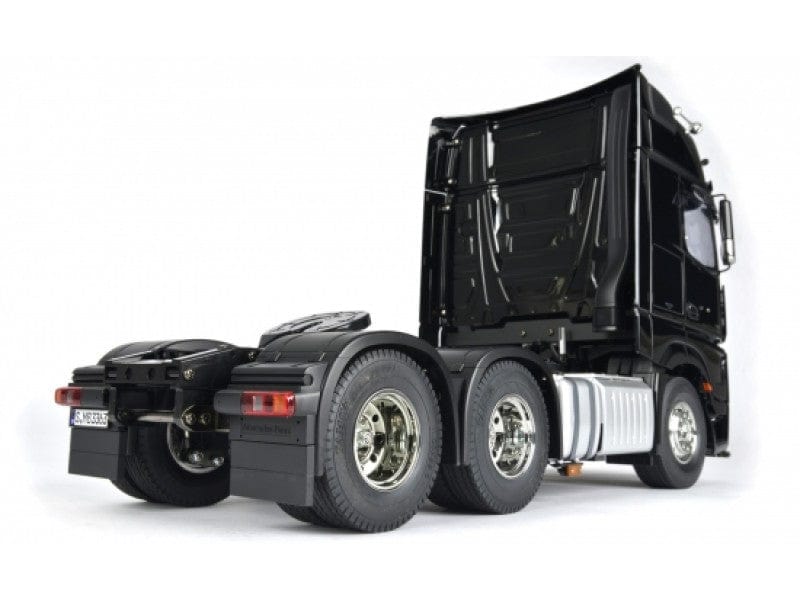

Tamiya 1/14 Mercedes Benz Actros 3363 6X4 Gigaspace Truck Kit

by:

$639.99
SKU TAM56348
Free Shipping

This is a highly accurate 1/14 scale radio control model that recreates the Mercedes Benz Actros 3363 3-axle truck. The Actros series debuted in 2011 and was named 2012 Truck of the Year. Powered by a 15.6-liter inline-6 turbocharged diesel putting out a max of 630hp, the actual 3363 can haul up to 250 tons!
The Tamiya rendition faithfully captures the truck's modern form with the use of ABS plastic body parts and a number of metal chassis components. One look at the detailed interior and auxiliary equipment, such as air tanks, will confirm that the body features replica-quality realism, which is further enhanced with metal transfers depicting emblems and numerous metal-plated parts. The chassis is built for durability as it uses aluminum side channels with resin cross members. Drivability is accomplished by power from the front-mounted motor and is transmitted via a propeller shaft to the rear axle; built-in differential gears guarantee smooth cornering. Gear changes can be made via a separately-sold 4-channel transmitter.

The Actros' realism can be further heightened with separately-available trailers that can be attached to its coupler and make the model over a meter in length!

Specifications:
Scale: 1/14
Construction type: Assembly kit
Terrain use: On-Road
Drive-train: 4-axle semi
Drive type: Gearbox
Drive line: Dog bone
Differential type: Gear
Suspension: Leaf spring
Steering mechanism: Bell-crank
Shock damper: Friction damper
Shock damper: material Aluminum
Tire type: Rubber
Tire tread: Radial
Body material: ABS Plastic
Chassis material: Aluminum and plastic
Electronic Speed Control (ESC): Not included
LED Light buckets: Yes
LED lights: No
Motor: 540-brushed type
Bearings: Metal bushings
Adjustable camber: Fixed
Adjustable toe angles: Front only
Adjustable ground clearance: Fixed
Adjustable gear ratio: 3-speed transmission
Adjustable wheelbase: Fixed
Adjustable track width: Fixed
Adjustable shock angle: Fixed

Special features:
Length: 538mm, Width: 195mm, height: 305mm
The body of the Actros 3363 is recreated accurately using newly-molded parts differentiating it from the 1851 spec model
The tried and tested Tamiya 3-axle chassis utilizes a tough ladder frame with aluminum side channels and resin cross members. A realistic drivetrain setup sees the front mounted motor powering twin rear axles.
3-speed transmission can be controlled via 4ch R/C transmitter. Item 7255252 is the perfect radio to compliment the Actros kit
Metal leaf spring dampers with built-in coil springs provide durable suspension
Coupler is included to enable connection with any currently available Tamiya 1/14 scale trailers
Compatible with the tractor truck option parts (TROP) Items 56531, 56532 and 56536. Use with Multi-Function Control Unit MFC-03 (Item 56523) (or MFC-01, Item 56511) for realistic LED lights and sounds
Compatible with the tractor truck option parts (TROP) Items 56531, 56532 and 56536. Use with Multi-Function Control Unit MFC-03 (Item 56523) (or MFC-01, Item 56511) for realistic LED lights and sounds

Needed To Complete:
4-channel radio gear
2x Servo's
Electronic speed control
TS plastic model paint
7.2v battery and charger
Building Tools
