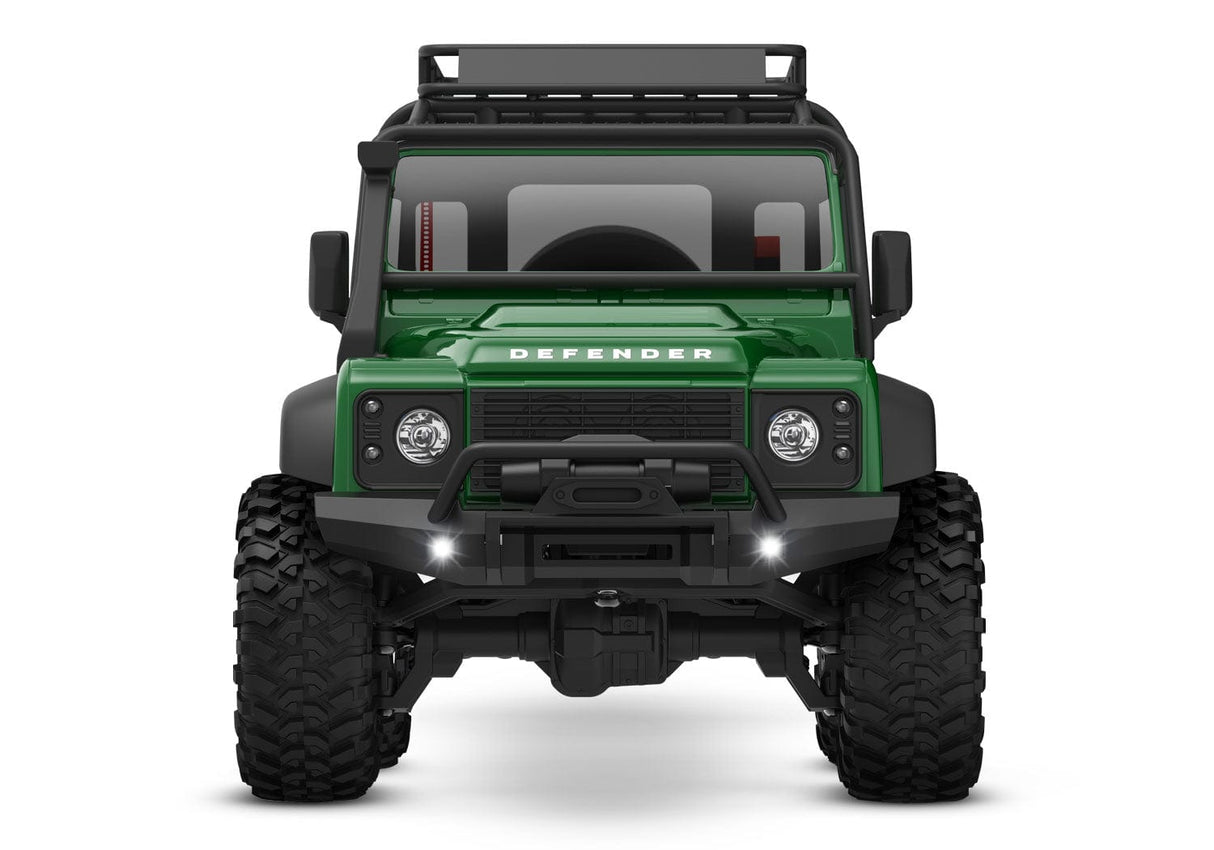

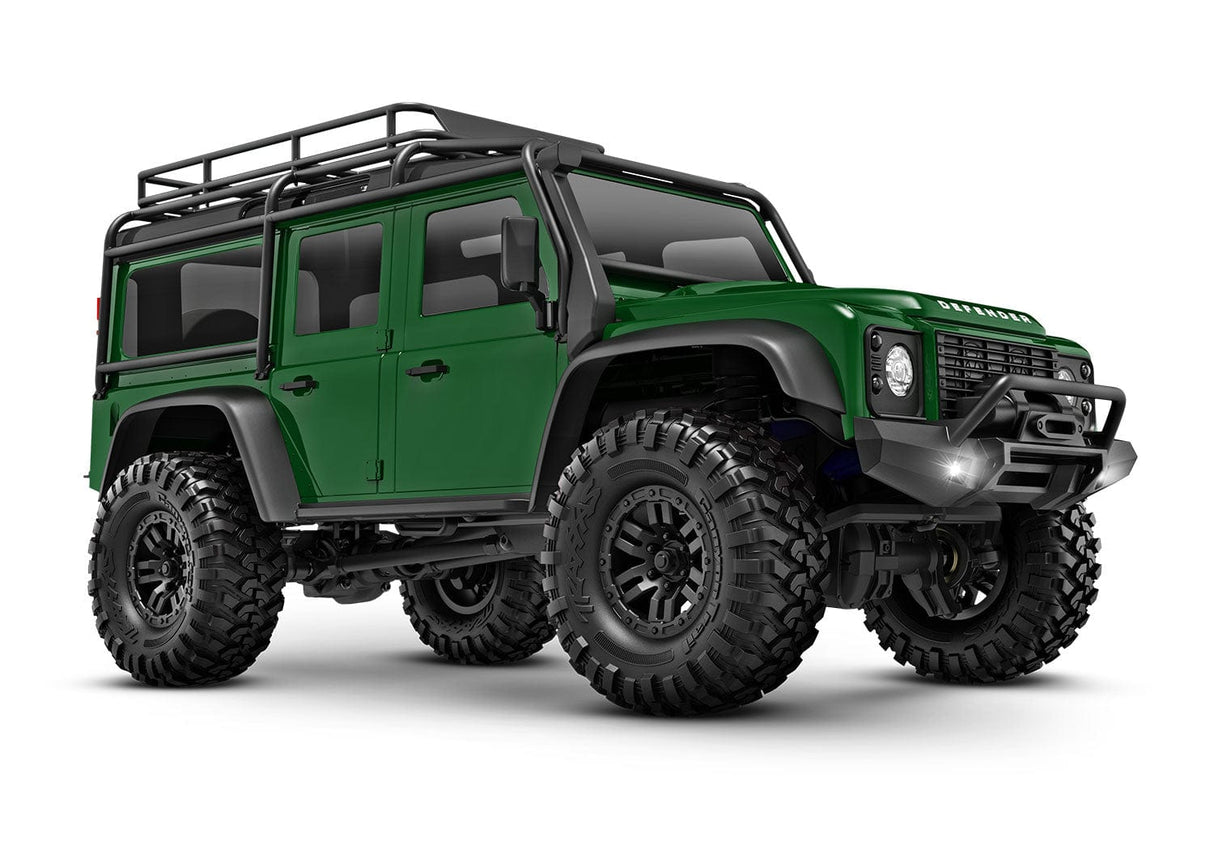

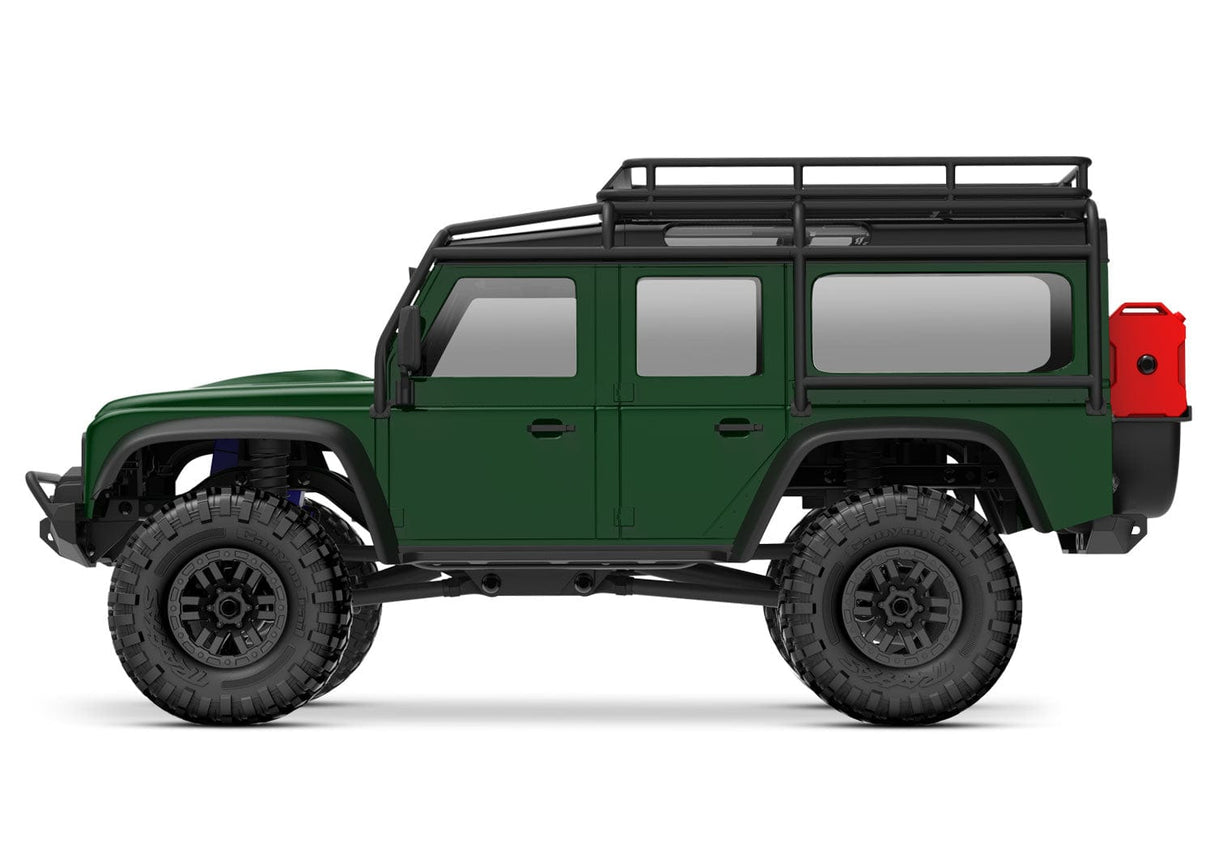

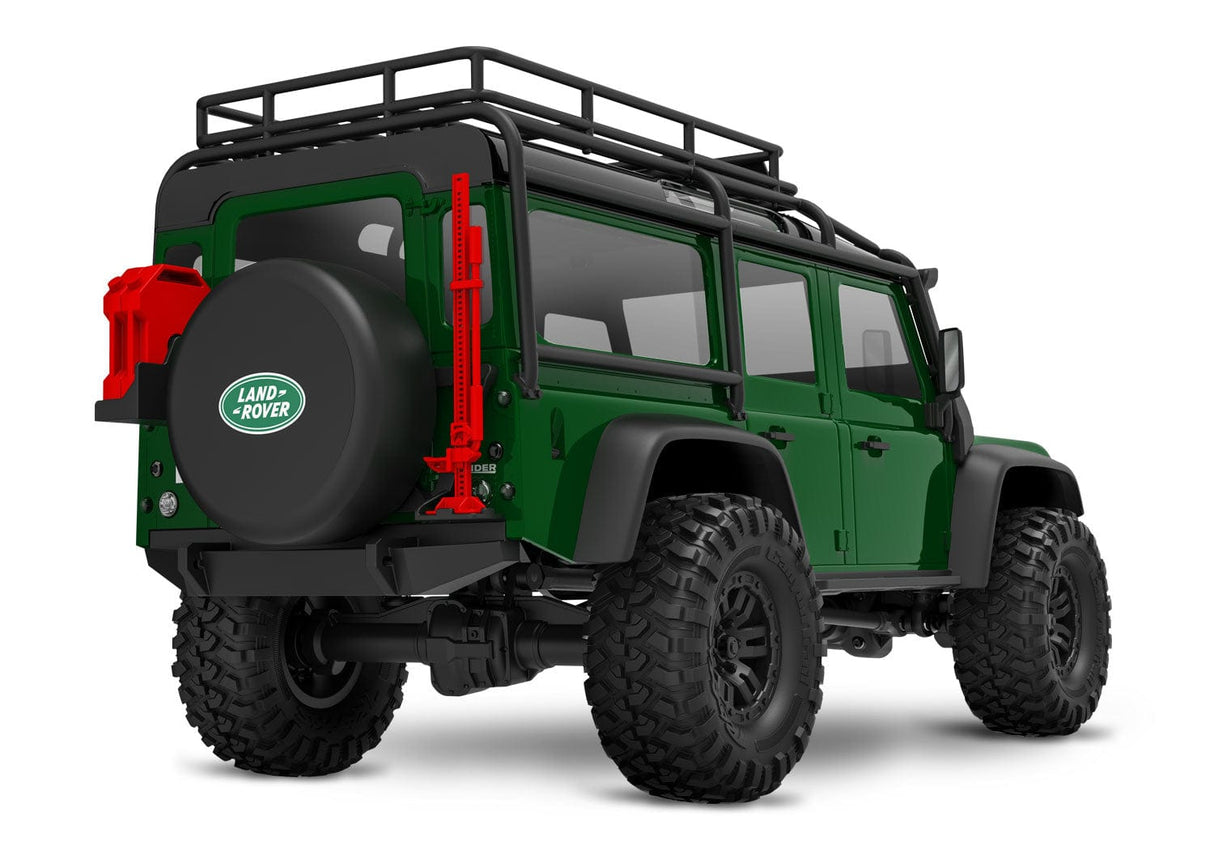

Traxxas 97054-1 TRX4M 1/18 Land Rover Defender RC Crawler - Green

BIG FUN AND ADVENTURE IN A SMALLER TRX-4!

Introducing TRX-4M, a new way to experience all the fun, adventure, and scale realism of the TRX-4 in a 1/18 platform. TRX-4M bridges the gap between the small crawler scene and 1/10 scale quality and performance. Oil-filled shocks, steel frame rails, and a smooth running drivetrain give it true outdoor capability over rocks and through grass and streams. The tight turning radius and precise throttle control give it fantastic indoor maneuverability.

THE RIGHT SIZE FOR FUN

TRX-4M is the perfect size to fit in a backpack for fun on the go. It’s small, powerful, and maneuverable so just about any space becomes an instant trail or crawling course. Whether it’s a mountain of books indoors or a rock garden in the backyard, TRX-4M is always ready for big fun and adventure.

ALL-TERRAIN VERSATILITY

TRX-4M is equipped to take on tough off-road terrain with grippy soft-compound tires, precision-engineered 4-link suspension geometry, and smooth oil-filled shocks. High center ground clearance, big approach angles, and low CG give the TRX-4M impressive capability everywhere it goes.

45° STEERING ANGLE

A full 45° steering angle gives TRX-4M an exceptionally tight turning radius and extreme maneuverability in small spaces where every inch counts. A heavy-duty 2065T steering servo delivers powerful steering authority, even on thick carpet.

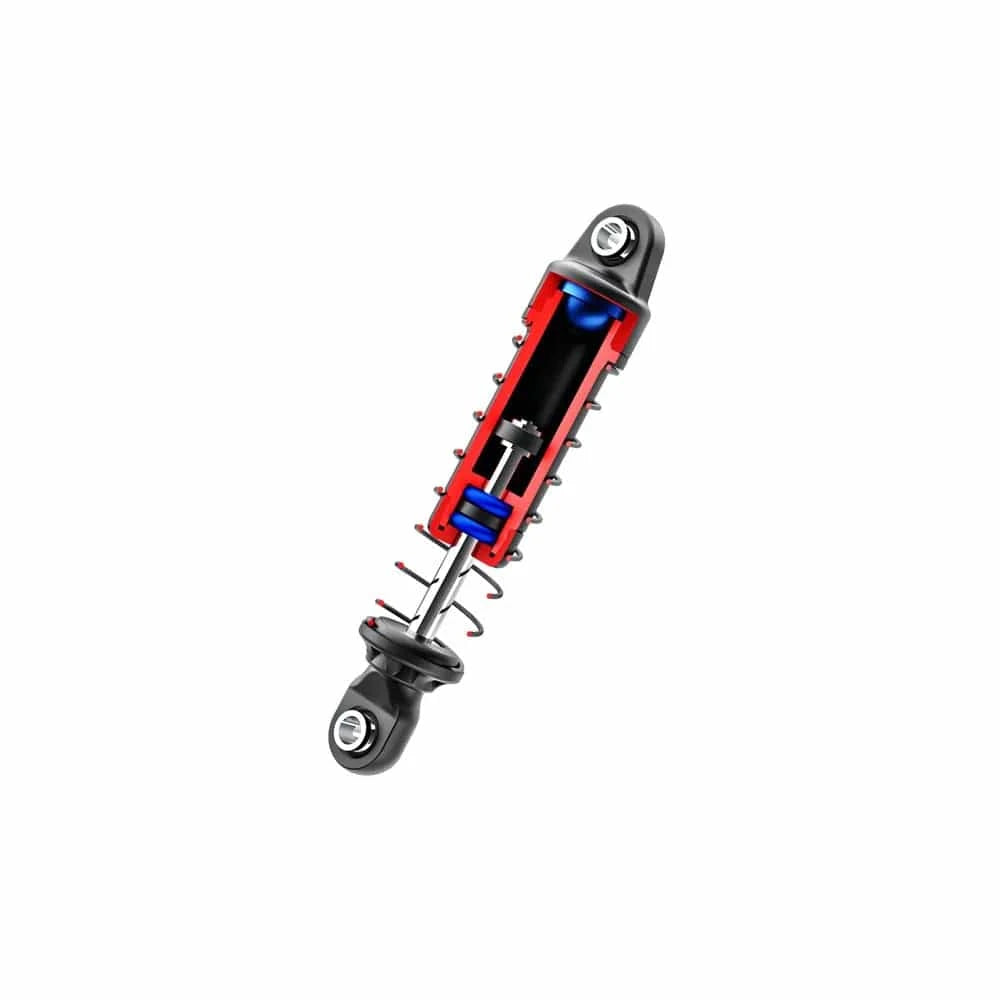

OIL-FILLED GTM™ SHOCKS

TRX-4M’s oil-filled GTM shocks offer smooth suspension damping to keep the wheels firmly planted on uneven surfaces. The added control also keeps the body from bouncing around on rough terrain for a more realistic driving experience.

DETAILED ABS BODY WITH CLIPLESS MOUNTING

The innovative clipless body removes and installs in just seconds with no clips to lose or frustrating hook and loop tabs. Tough, highly detailed ABS bodies feature molded-in color with a deep glossy finish that won’t chip or scrape off.

WATERPROOF ELECTRONICS

TRX-4M is the truck that goes where you want to go, without boundaries or restrictions. Only Traxxas’ fully-waterproof innovation gives you the freedom to drive through wet grass, puddles, and streams that force others to turn around.

INNOVATION

TRX-4M captures all the functionality of a full-size TRX-4 in a smaller 1/18 size for an all-new driving experience.

Features

Clipless ABS Body

• Highly-detailed licensed bodies: Molded-in color won’t chip or flake, tough fender flares and rock sliders. Realistic side mirrors, door handles, & wipers. LED bumper lights

• Heavy-duty latching clips: Hold tightly on the trail, release in just seconds.

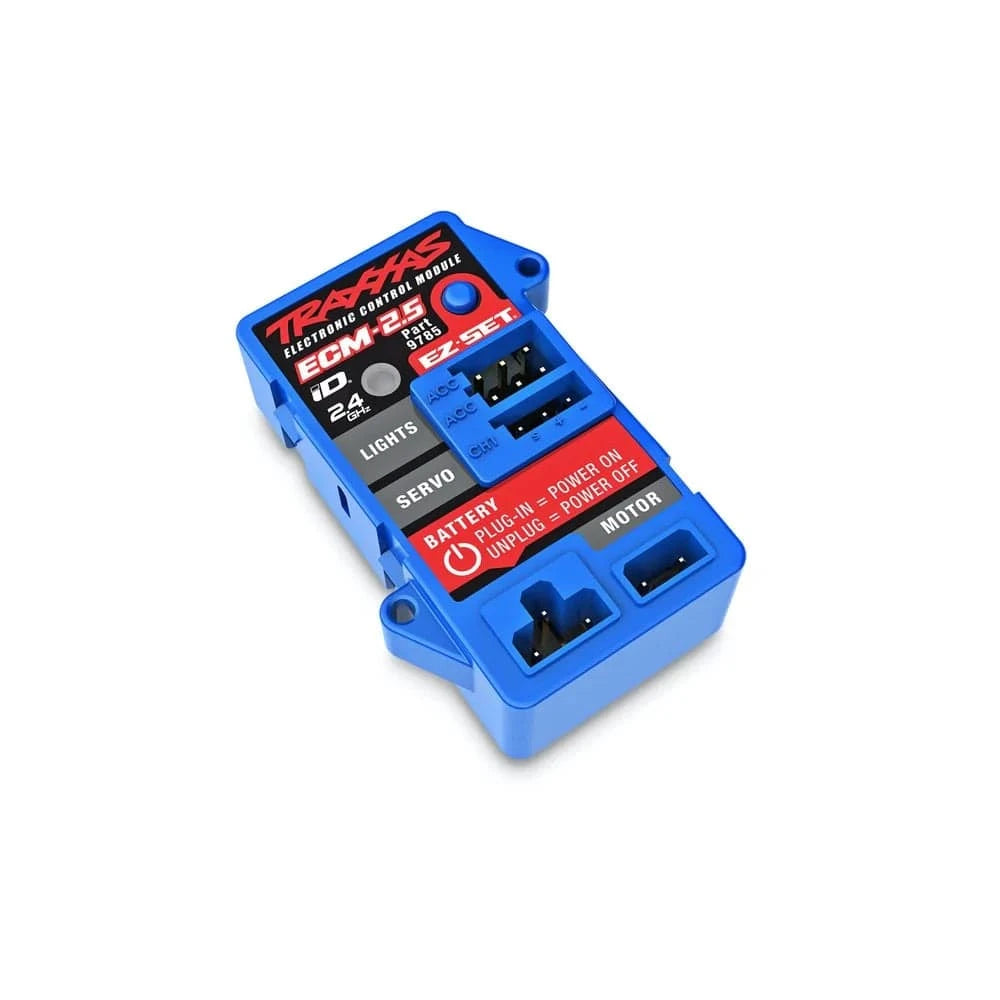

ECM-2.5™ Electronic Control Module

• Incorporates ESC, receiver, and LED controller in one chassis

• Fully waterproof for all-weather fun

• Three drive profiles

1. Sport Mode – forward / brake / reverse

2. Trail Mode – forward / brake / reverse / with trail-tuned drag brake in neutral

3. Crawl Mode – forward / instant reverse - no neutral with 100% hill holding brake

• Traxxas EZ-Set® one-button setup

• Built-in Pro Scale® LED functionality

• Two-stage low voltage protection (LVD)

• Motor overload protection

TQ™ 2.4GHz Transmitter

• Full-size 2-channel transmitter

• All-day comfort with precise long-range control

Motor

• Powerful Titan® 87-turn brushed motor

• Fixed gear mesh doesn’t require adjustment

• Forward mounting position for improved crawling dynamics

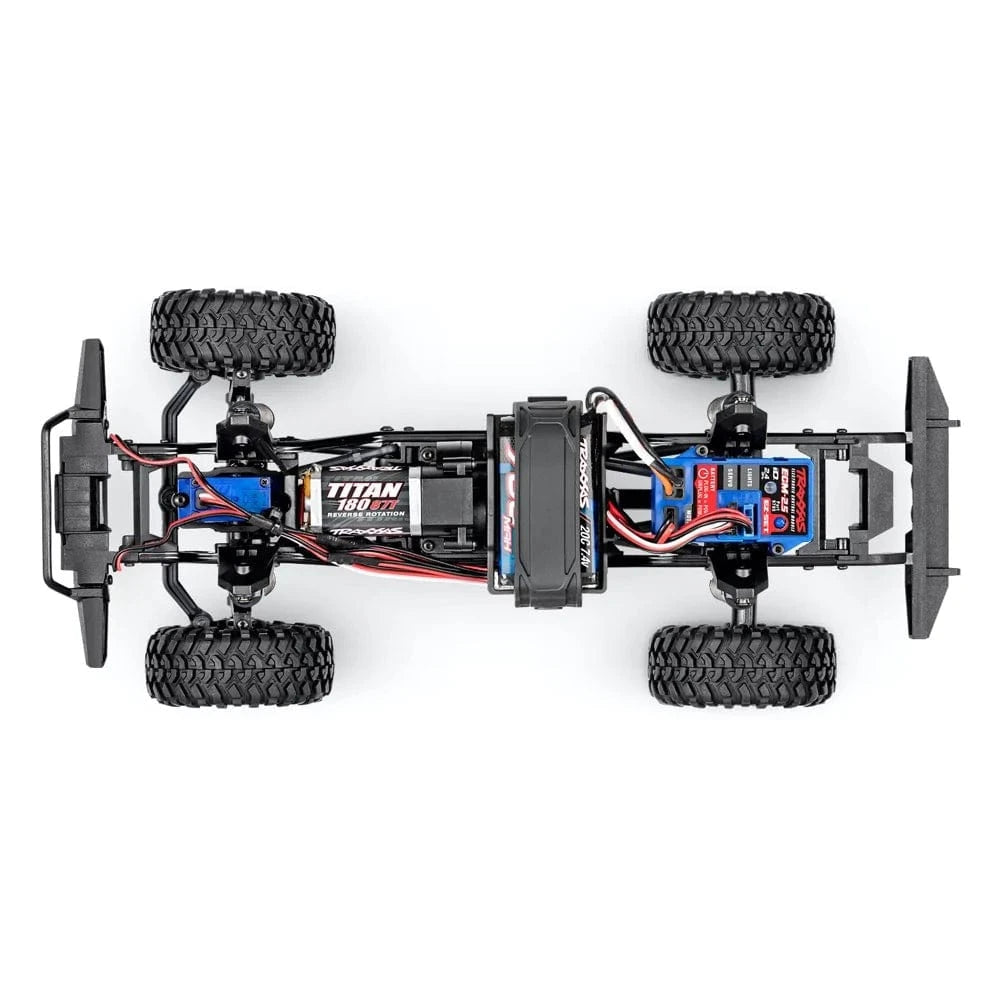

Heavy-Duty Steel Ladder Frame

• Deep C-channel design

• Thicker center section for maximum rigidity

• Rails run from bumper to bumper

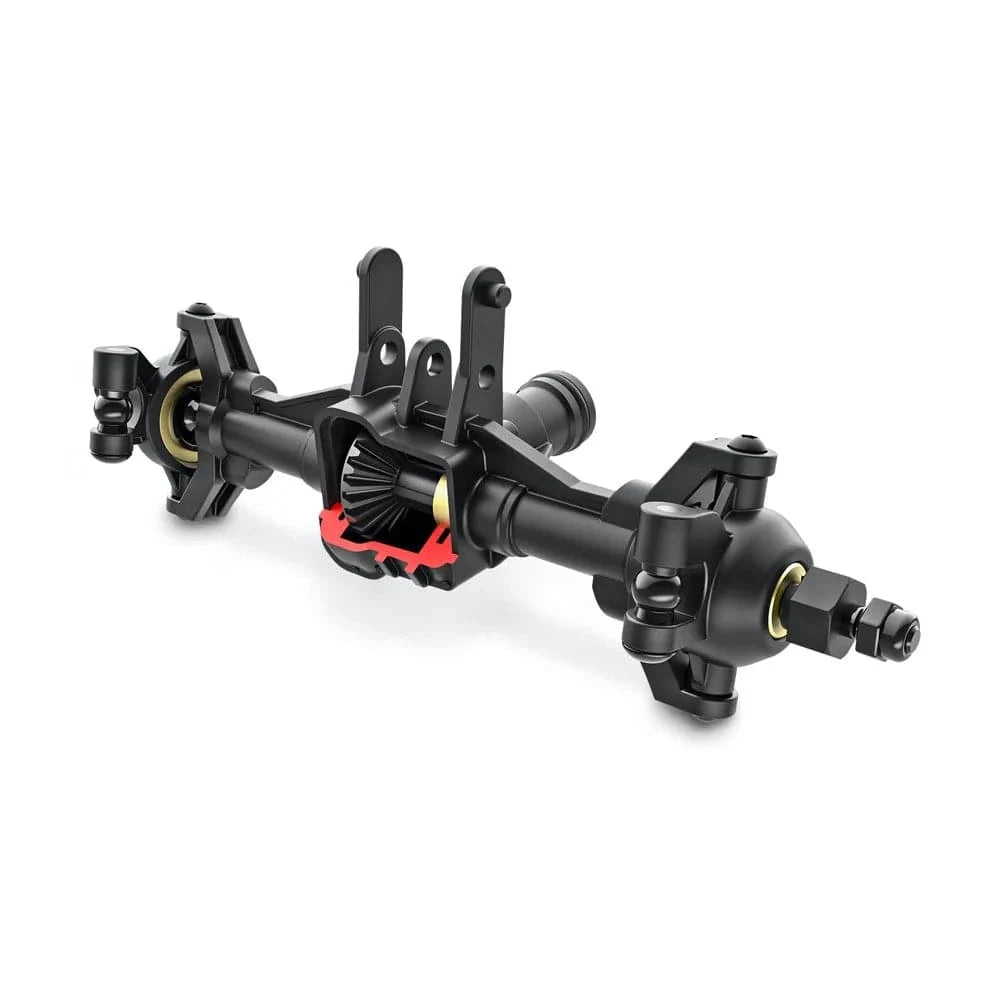

Drivetrain

• Full-time shaft-driven 4-wheel drive

• Solid steel axles

• Spool-equipped front and rear axles

• Heavy-duty CV center driveshafts

Low-CG Battery Tray

• Concentrates weight lower for improved stability

• Wide rubber strap secures battery in place

Optional Transmission Ratios (sold separately)

• Optional Low Range or Speed Gearing transmissions

• Modular design swaps out in minutes

Steering

• Heavy-duty 2065T steering servo: Metal main gear

• Superior 45° steering angle

• Direct steering (no servo saver)

Suspension

• Triangulated 4 link front and rear

• Heavy-duty rod ends

Oil-Filled GTM™ Shocks

• Provides smooth controlled damping

• Realistic driving body movements

• Adjustable pre-load spacers

• Easily refreshed with available rebuild kits

Wheels and Tires

• Highly-detailed 1" Replica wheels: 7mm hex

• Pre-mounted tires: BF-Goodrich® Mud Terrain T/A® KM3 (Bronco), Canyon AT (Defender), Trail-tuned rubber compound

Battery and Charger Included

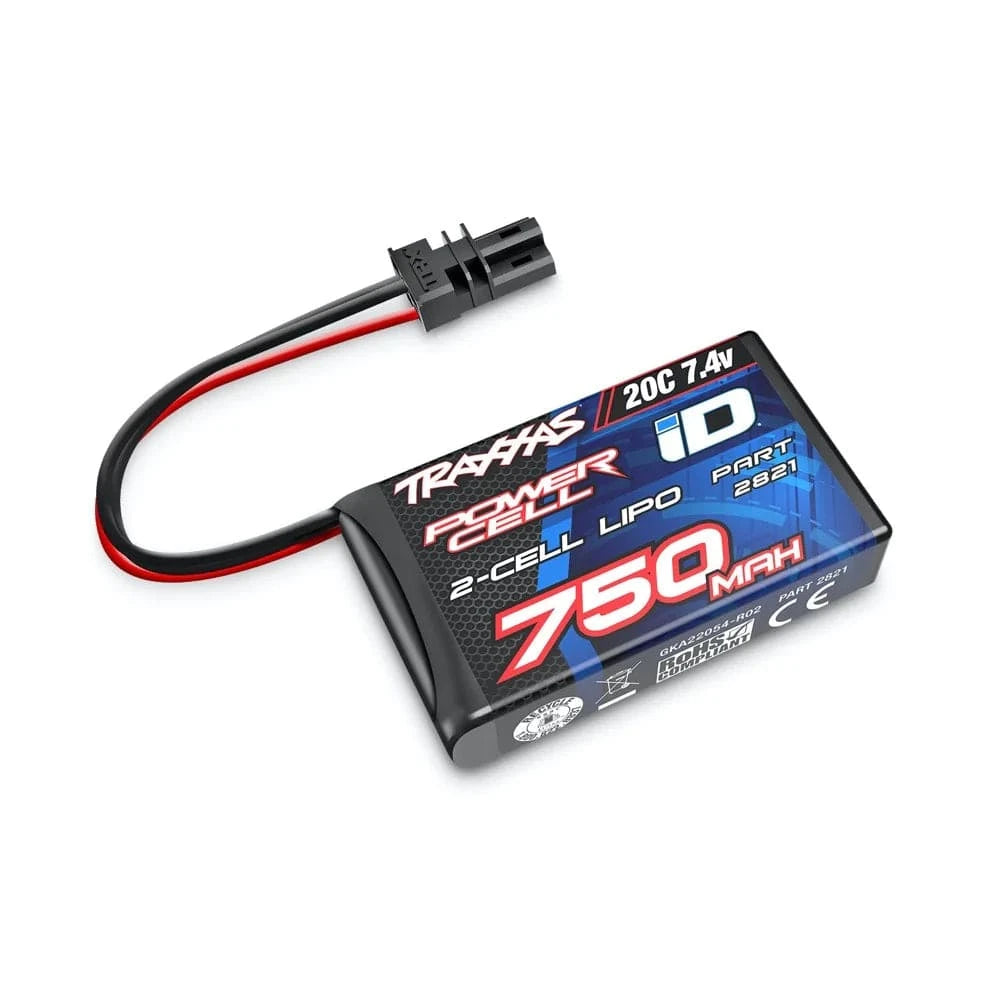

• High-capacity 2-cell LiPo battery: 7.4 volts, 750mAh for over an hour of run time

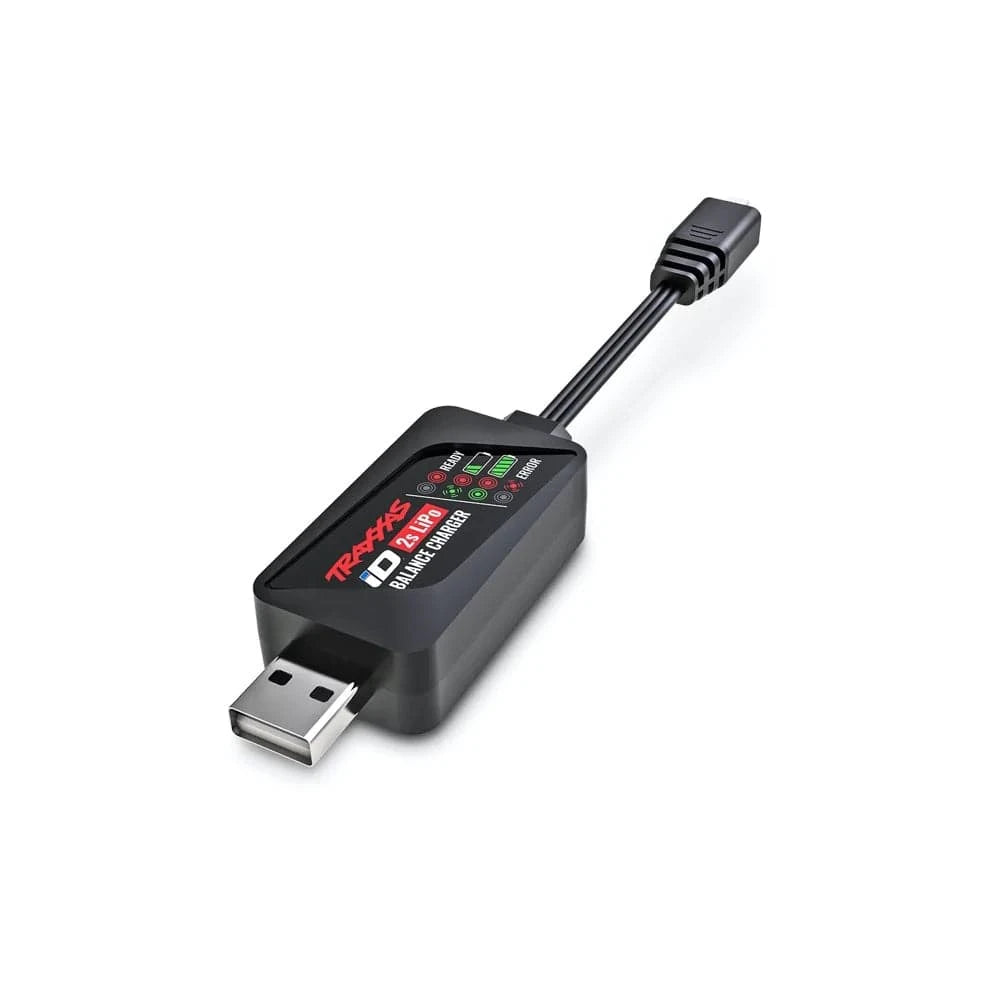

• 2-amp USB-powered fast charger

• iD® technology for faster, safer charging

Low-Maintenance Self-Lubricating Bushings

Durable Hex hardware

Motor Specs

• Type: High-torque brushed motor

• Size: 180

• Weight: 33g (1.16oz)

• Dimensions: 1.66” (42mm) overall length, 1.34” (34mm) can length, 0.81” (21mm diameter)

• Turns: 87T reverse rotation

• Voltage: 8.4V

ECM Specs

• Input Voltage: 2s LiPo

• Case Size: 1.26in W x 1.79in D x 0.60in H

• Weight: 0.92oz (26g)

• BEC Voltage: 6.0 VDC

• BEC Current: 1A

• Low Voltage Detection (LVD): 2-Stage

• Transistor Type: MOSFET

• Motor Overload Protection: 2-Stage

Profile Selection

• Sport Mode: 100% FWD, 100% Brakes, 100% REV

• Trail Mode: 100% FWD, 100% Brakes, 100% REV, Trail-Tuned Brake on Neutral

• Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral

Contents

• MODEL 97054-1: TRX-4M Scale and Trail™ Crawler with Land Rover Defender Body: 1/18 Scale 4X4 Trail Truck, Fully-Assembled, Ready-To-Drive®, with TQ™ 2.4GHz 2-channel Transmitter, and ECM-2.5 Waterproof Electronics.

• TRX-4M® Ready-To-Race® model

• Licensed ABS hard body

• Titan® 180 87-turn motor

• ECM-2.5™ Electronic Control Module

• TQ transmitter

• 7.4 volt 750mAh 2-cell LiPo battery

• 2-amp USB fast charger with iD®

• High quality maintenance tools

Needed To Complete

• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
