Servo leads and extensions are essential accessories in remote-controlled vehicles and aircraft, providing the necessary electrical connections between servos, receivers, and other components in your RC system. They come in various lengths, configurations, and types to accommodate different setups and requirements. Here's a closer look at servo leads and extensions and their key characteristics:
1. Servo Leads:
-

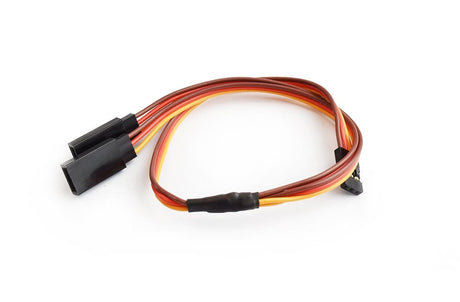

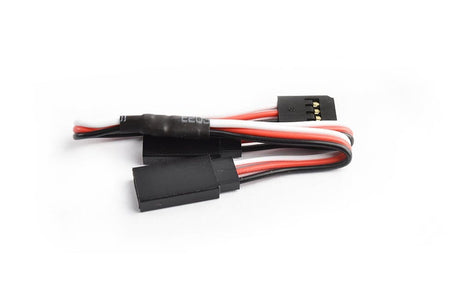

Definition: Servo leads are the standard cables used to connect servos to the receiver or other control devices in an RC system. They consist of multiple wires encased in a protective sheath, with connectors at each end for easy connection.
-
Length: Servo leads are available in various lengths, typically ranging from a few inches to several feet. Choosing the appropriate length depends on the distance between the servo and the receiver or control device, ensuring a tidy and organized wiring setup without excess slack or tension.
-
Connector Types: Servo leads feature standard connector types compatible with most RC receivers and servos. The most common connector types include Futaba J connectors (also known as JR connectors) and universal connectors (compatible with multiple brands).
-
Color Coding: Servo leads often feature color-coded wires for easy identification and connection. The standard color code for servo leads is red (positive), black or brown (negative), and white or yellow (signal).
2. Servo Extensions:
-

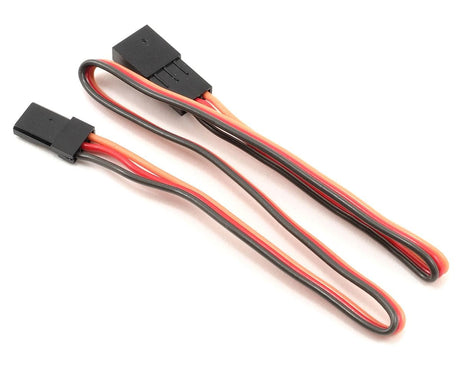

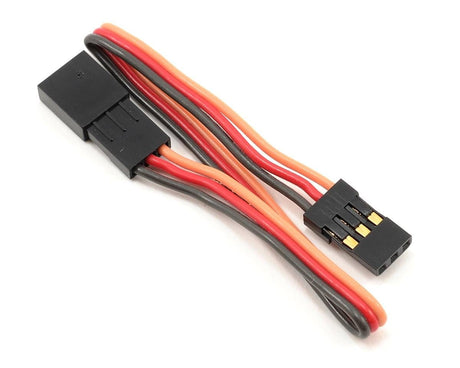

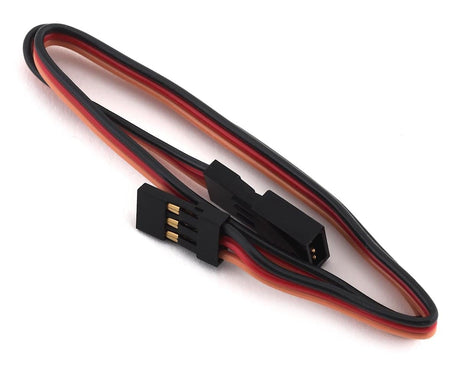

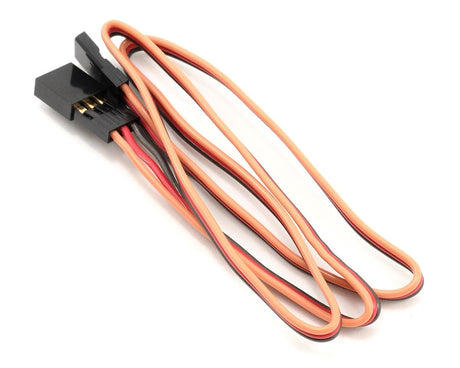

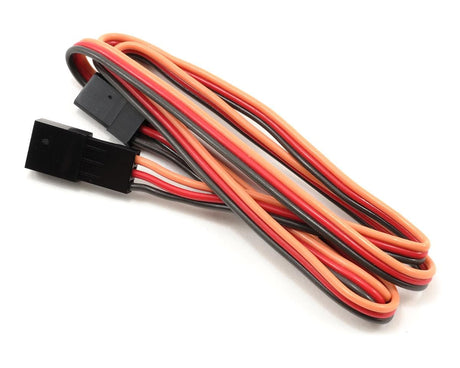

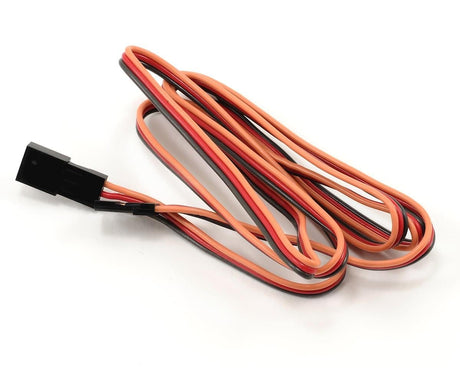

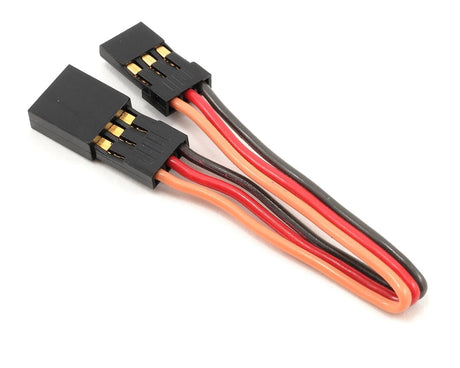

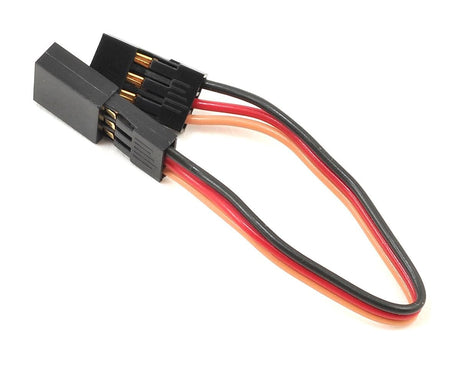

Definition: Servo extensions are cables with male and female connectors at each end, allowing for the extension of servo leads to reach components located further away in the RC system.
-
Length: Servo extensions are available in various lengths to suit different installation requirements. They typically range from a few inches to several feet, providing flexibility in wiring setup and component placement.
-
Connector Types: Servo extensions come with the same connector types as servo leads, ensuring compatibility with most RC receivers and servos. They feature male connectors at one end to plug into the receiver or control device and female connectors at the other end to connect to the servo leads.
-
Versatility: Servo extensions are versatile accessories that can be used in a variety of applications, including extending servo leads for servos mounted in hard-to-reach locations, routing wires through fuselages or wings in aircraft, and connecting additional devices such as lighting systems or retractable landing gear.
3. Twisted vs. Flat Extensions:
-

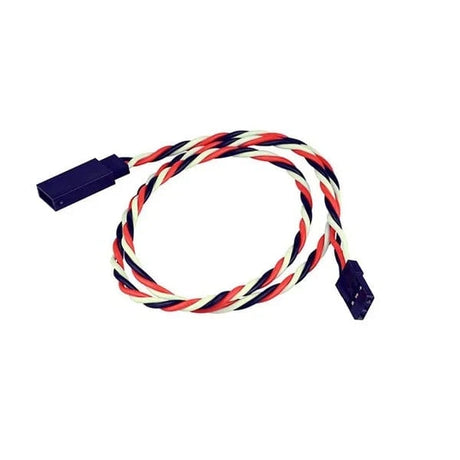

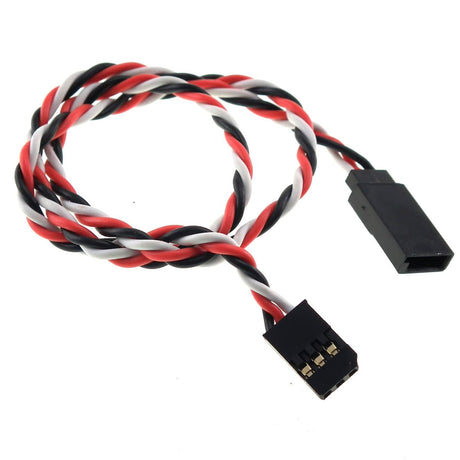

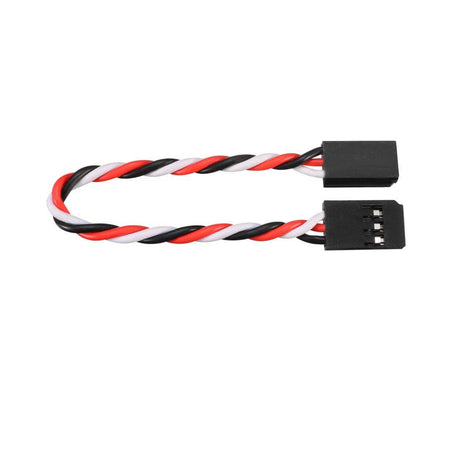

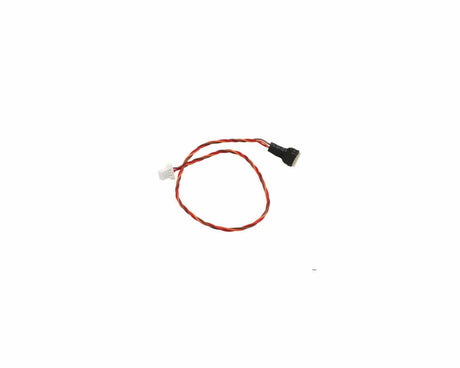

Twisted Extensions: Twisted servo extensions feature wires twisted together to reduce electromagnetic interference (EMI) and crosstalk, ensuring clean and reliable signal transmission between components.
-

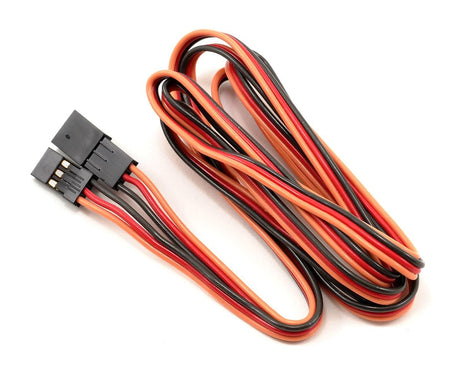

Flat Extensions: Flat servo extensions feature wires arranged side by side in a flat configuration. While not as effective at reducing EMI as twisted extensions, flat extensions offer a sleek and low-profile design that may be preferable for certain installations where space is limited.
4. Customization and Assembly:

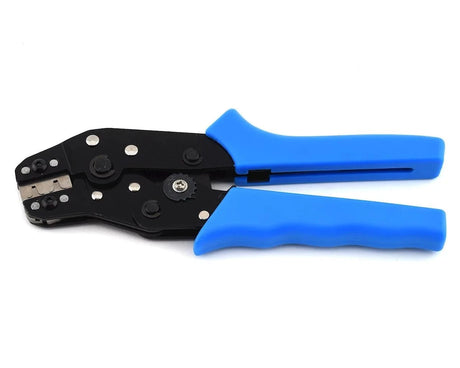

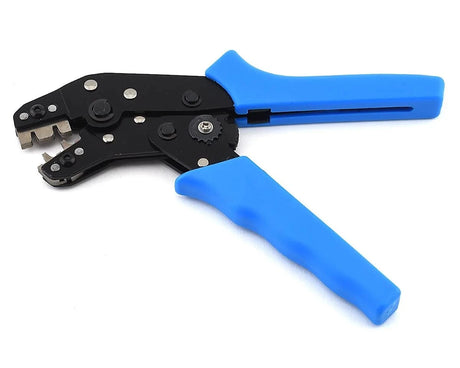

- Some hobbyists may choose to customize servo leads and extensions by trimming or splicing them to achieve the desired length or configuration. However, caution should be exercised to maintain proper polarity and signal integrity, and soldering skills may be required for more complex modifications.
5. Compatibility:
- It's essential to ensure compatibility between servo leads/extensions and your specific RC system components, including receivers, servos, and other devices. Most manufacturers provide compatibility information and recommendations for servo leads/extensions compatible with their products.
Overall, servo leads and extensions are indispensable accessories in RC systems, providing the necessary electrical connections to ensure reliable and precise control of your RC vehicle or aircraft. Choosing the right length, type, and configuration of servo leads/extensions helps optimize wiring setup, minimize signal interference, and maintain the integrity and performance of your RC system.
