Product details

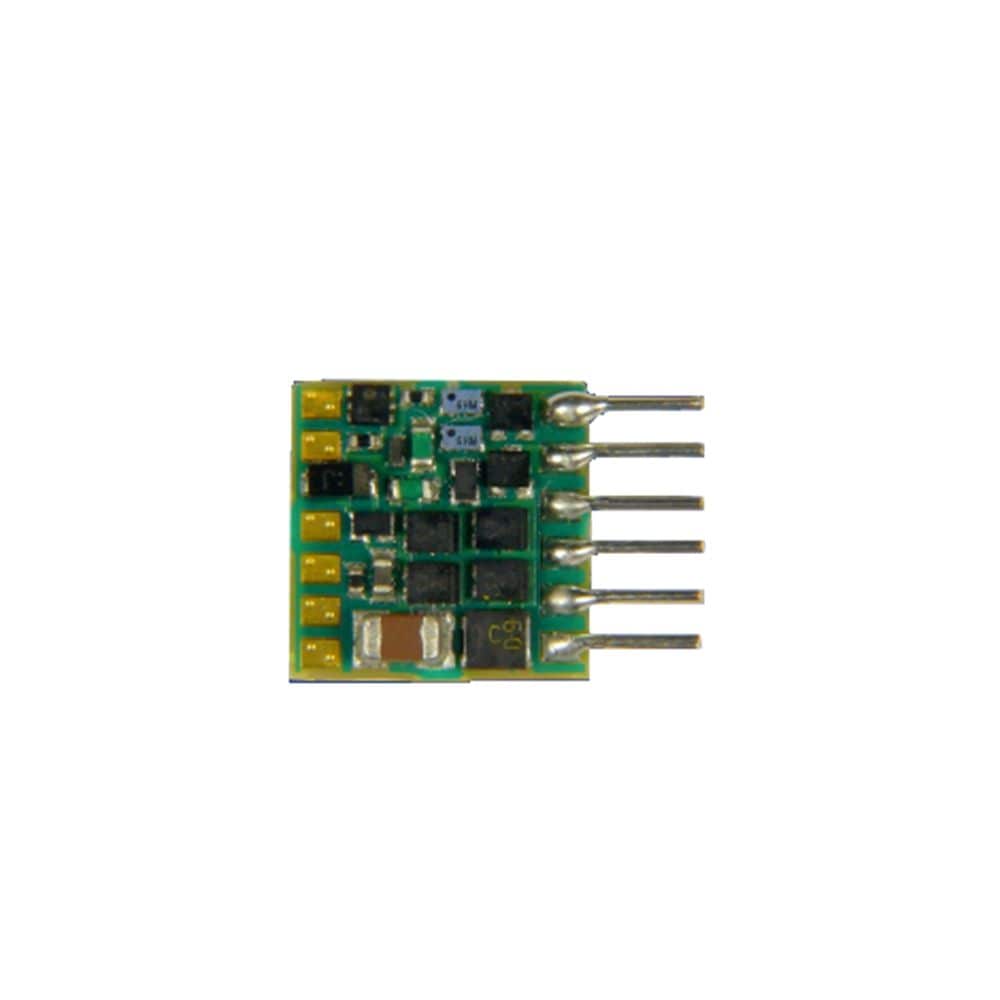

A 6 Pin (NEM651) DCC Decoder suitable for models fitted with a 6 Pin DCC decoder socket and where minimal space is available for the decoder for instance the Graham Farish Class N Scale 03 and 04 Diesel Shunters and the Bachmann Narrow Gauge OO9 Scale Quarry Hunslets.

Highlights include:

  • Multi-mode (NMRA-DCC format Motorola protocol and DC Analogue) with Back EMF function
  • 6 powered function outputs
  • 0.7A continuous load
  • Suitable for models equipped with DC motors (including coreless motors)
  • Brake Button function for realistic control of braking (operates on F2)



Operating Modes

  • Multi-mode (NMRA-DCC format Motorola protocol and DC Analogue) with Back EMF function
  • 14 28 and 128 speed steps
  • Short and Long addresses

Motor Control Features

  • Suitable for models equipped with DC motors (including coreless motors)
  • 0.7A continuous load
  • Variable pulse width frequency motor regulation (up to 40kHz)
  • Motor output overload protection; Back EMF (de-selectable)

Function Outputs

  • 6 powered-function outputs with overload protection (4 outputs connect via solder pads)
  • 500mA load per output
  • 500mA total load of all function outputs
  • Shunting speed and momentum key selectable

Dimensions

  • 8mm x 8mm x 2.4mm

Default Address

  • Address 3

Programming

  • DCC Service Mode & DCC PoM (Programming on Main)

Additional Features

  • RailCom Feedback system
  • Upgradable firmware

 This decoder is manufactured on behalf of Bachmann Europe by Zimo. For full technical specifications and instructions please refer to the Zimo user guide for MX616N at http://www.zimo.at/web2010/documents/MX-small-decoders_EN.pdf
