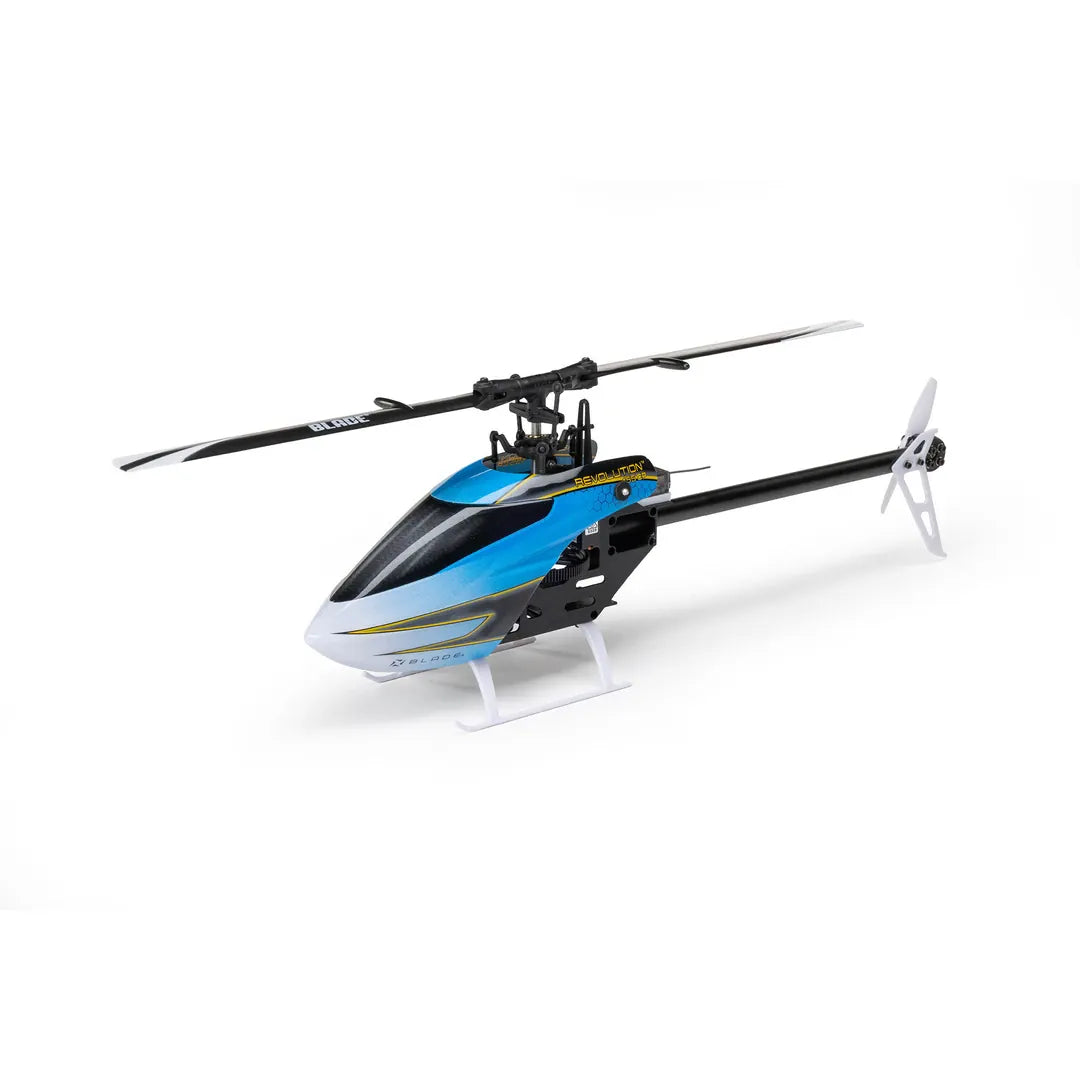

Blade Revolution 155 CP RC Helicopter BNF Basic

Learn to fly Collective Pitch (CP) helicopters and advance into scale, sport, aerobatic, and 3D flying with the Revolution 155 CP – an updated version of the extremely popular Blade® 150 S that’s more affordable, easier to fly, and more capable for first-time to experienced heli pilots! The RTF version includes everything you need to fly plus a copy of the RealFlight® Trainer Edition RC flight simulator, and both versions include a Spektrum™ receiver that features a convenient Smart Transmitter File (STF) compatible with all NX and iX series transmitters.

Blade Revolution 155 CP BNF Basic with SAFE

For nearly a decade, the Blade 150 S helped many pilots learn to fly and advance their collective pitch helicopter skills. The Revolution 155 CP builds on that legacy with meaningful updates that make it more affordable, easier to fly, and more capable than ever. It features exclusive and innovative SAFE (Sensor Assisted Flight Envelope) technology that offers angle limits and improved self-leveling to help prevent crashes in Normal mode, and no limits in all other flight modes – plus Panic Recovery to “bail out” at the push of a button if you ever need it!

Updates and upgrades compared to the 150 include:

• Improved flight controller tuning for better self-leveling performance when switching back to Normal (SAFE) mode
• Updated composite frame design with optimized servo geometry and upgraded servos for improved flight performance
• More powerful and lighter tail motor plus new tail prop for improved tail performance and yaw control
• New color scheme plus optional canopies

The Revolution 155 CP arrives 100% factory-assembled and flight-tested, so it's ready to fly right out of the box. The Ready-To-Fly (RTF) version includes everything needed to fly in one box so it's a perfect choice for first-time to experienced pilots looking for maximum convenience and value. Plus, the included Spektrum DXS 2.4GHz transmitter can be used with other Bind-N-Fly® (BNF) and BNF Basic aircraft after you learn to fly the Revolution 155 successfully! A Bind-N-Fly (BNF) Basic version is also available for pilots who want to use their current Spektrum transmitter along with batteries and chargers they may already own. And both versions include a Spektrum flybarless flight controller and receiver loaded with a Smart Transmitter File that allows you to import all settings for NX and iX series transmitters automatically during the binding process to make it easier and faster to get flying with your favorite or upgraded transmitter.

The RTF version also includes a “full” copy of the RealFlight Trainer Edition RC flight simulator that runs on a wide variety of PCs (Personal Computers) from low-cost laptops to “gaming” desktops running Windows® 10 or 11. This simulator features many of the most popular Horizon Hobby trainer airplanes and helicopters, including the Revolution 155, along with built-in Virtual Flight Instructor lessons. It also includes additional features including nearly two dozen “Next Step After a Trainer” (Skill Level 2) aircraft and variants plus 4 flying sites/fields that are unlockable reward content after you fly the trainer models for just 2–4 hours. Other added features include a fresh and modern user interface that's even easier and more intuitive to use, multiplayer options so you can train and fly with others online, the option to turn on wind, unlock float flying, and more! This helps new pilots learn to fly successfully by practicing on a desktop PC at home or on a laptop just about anywhere else. Simply use a USB-C cable to connect the updated and upgraded DXS controller/transmitter to a compatible USB port on your computer to fly!

And the fun doesn't stop after you learn how to fly! In the Stunt/Idle Up flight modes the Revolution 155 CP is capable of performing basic aerobatic maneuvers including loops, rolls, inverted (upside down) flight, and more. It's even capable of all-out 3D aerobatics whether you're an experienced pilot or are just learning to perform them.

Features

• Micro-sized to fly indoors in large rooms and garages, and outdoors in yards, parks, sports fields, and beyond
• Equipped with improved SAFE technology that helps prevent crashes and makes it easy to learn how to fly
• Panic Recovery mode at the push and hold of a button to prevent loss of control and crashes
• Receiver loaded with a Smart Transmitter File that allows you to import all settings for NX and iX series transmitters during the binding process
• Compatible with affordable 3S 450mAh LiPo batteries with reliable IC2 connectors (or use a compatible IC2 adapter)
• Spektrum Dual Smart ESC provides real-time battery voltage, motor RPM, and other data to compatible transmitters
• Factory-installed Spektrum AR6250MHXG flybarless flight controller featuring exclusive AS3X and updated SAFE technologies
• Improved flight controller tuning for better self-leveling performance when switching back to Normal (SAFE) mode
• Factory-installed digital, metal-geared cyclic servos with precise ball-link equipped linkages
• Updated composite frame design with optimized servo geometry and upgraded servos for improved flight performance
• More powerful and lighter tail motor plus new tail prop for improved tail performance and yaw control
• Practice flying this aircraft in the RealFlight RC flight simulator (included with the RTF version and sold separately for the BNF Basic version)
• Customize and personalize with different colors of canopies including one option to match the Revolution 235
• No FAA registration or Remote ID required (under the 250-gram weight limit)
• Full line of replacement/spare parts available

Contents

Blade Revolution 235 CP with:

• Brushless Outrunner Tail Motor (installed)
• Brushless Outrunner Main Motor (installed)
• Spektrum Digital, Metal-Geared Servos (installed) x 3
• Spektrum AR6250MHXG Flybarless Flight Controller and (1) Receiver with AS3X and SAFE
• Spektrum Dual Brushless 10A Main and 6A Tail Smart Lite ESC
• Main Blade Holder
• Product Manual

Requires

• Full-range 6+ channel Spektrum DSMX/DSM2 compatible transmitter (programmable for helicopters)
• 3S 11.1V 450mAh LiPo battery with IC2 connector (or use a suitable IC2 adapter, sold separately)
• Compatible LiPo charger (plus a suitable IC2 adapter/charge lead, including SPMXCA320 or SPMXCA532, sold separately)

Skill Level 1 – No Experience Required

Skill Level 1 aircraft, like this one, are perfect for beginners and first-time RC (Radio Controlled) helicopter pilots because no prior experience is required to fly them!

Bind-N-Fly Basic Completion Level Advantage

Already own a Spektrum™ transmitter? Bind-N-Fly (BNF) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos and a Spektrum 2.4GHz receiver installed so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly (transmitter, battery and charger sold separately)!

Exclusive Technologies

The factory-installed and expertly-tuned AR6250MHXG flybarless flight controller features exclusive Spektrum AS3X and SAFE technologies. The updated SAFE technology features angle limits and improved self-leveling to help prevent crashes in Normal mode. AS3X smooths out the effects of wind and turbulence with no limits or self-leveling in all other flight modes so you can fly inverted and perform aerobatics too. Plus, you can use Panic Recovery to “bail out” at the push and hold of a button if you ever need it!

Telemetry Capable

The Revolution 155 is equipped with a Spektrum Smart ESC, flight controller, and a receiver that provides real-time overall flight battery voltage, motor RPM, and other telemetry information to compatible Spektrum AirWare equipped transmitters (including the DXS, DX6e and 8e, DX6 G2/G3 and 8 G2, the DX9, NX6 to 20, the iX12 to 20, and others) while you fly.

Learn to Fly Successfully with SAFE® Technology

If this is your first RC helicopter, Horizon Hobby-exclusive SAFE (Sensor Assisted Flight Envelope) technology prevents over-control and crashes while also offering multiple flight modes to deliver more control and capabilities as your skills progress

Normal (SAFE) Mode

In this flight mode, the helicopter has pitch and bank angle limits to prevent over-control that can result in a loss of orientation and crashes. When the control sticks are released, the helicopter automatically returns to level flight on its own allowing you to relax and enjoy just 'steering' the helicopter through the sky rather than focusing on keeping it level. This flight mode also makes it much easier to take off and land!

Stunt/Idle Up 1 (AS3X) Mode

There are no pitch or bank angle limits in this flight mode, so you have complete control! The head speed is higher and more constant than in the Normal mode which allows you to fly inverted (upside down) and perform basic aerobatic maneuvers including loops, rolls and more.

Stunt/Idle Up 2 (AS3X) Mode

In this flight mode there are no limits and the head speed is even higher so you can perform more aggressive and 3D aerobatic maneuvers.

Panic Recovery

If you lose control of the helicopter in the Stunt/Idle Up flight modes, simply press and hold the Panic Recovery button or switch to Normal mode and release the right-hand control stick. SAFE technology will automatically return the helicopter to upright and level flight!

Collective Pitch

The CP (Collective Pitch) main rotor head assembly offers smooth control to deliver a unique blend of hovering, sport, and aerobatic flying capabilities you can't get with FP (Fixed Pitch) mechanics.

Durable Precision

The upgraded digital, metal-geared cyclic servos along with an updated composite frame design featuring optimized servo geometry delivers added precision and capabilities.

High Power

The very powerful and efficient brushless main motor – plus the more powerful and lighter tail motor with a new tail prop for improved tail performance and yaw control – are connected to a factory-installed Spektrum Dual Smart ESC and are compatible with popular and affordable 3S 450mAh batteries with durable and reliable IC2 connectors (or use a compatible IC2 adapter).

Fully Assembled

The Revolution 155 arrives 100% factory-assembled, flight-tested, and ready to fly right out of the box! It's equipped with industry-leading Spektrum 2.4GHz technology that's already bound to the DXS controller/transmitter included with the RTF version, and both versions bind to most 6+ channel DSMX/DSM2 equipped transmitters.

Replacement Parts

If you damage any airframe parts or components and can't repair them a full line of replacement/spare parts is readily available.
