ESU 58828 LokSound V5 Micro DCC Blank Decoder Next18
ESU 58828 LokSound V5 Micro DCC Blank Decoder Next18 is backordered and will ship as soon as it is back in stock.
Please note: Card payments may require additional verification (click to learn more)
Couldn't load pickup availability
-
Description
-
Returns
-
Shipping

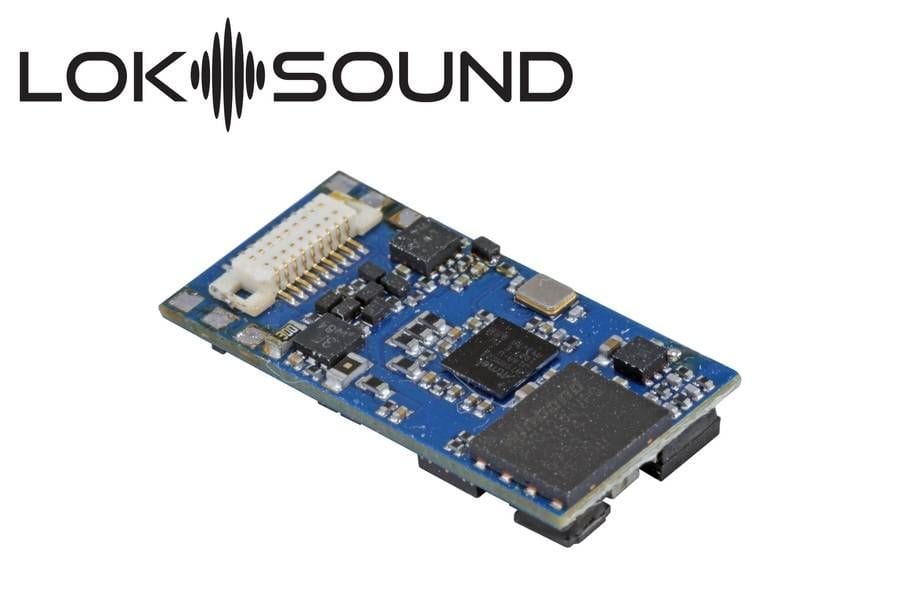

This is the ESU 58828 LokSound V5 Micro DCC Blank Decoder Next18.
The LokSound 5 DCC Micro is the smallest sound decoder Tony's offers. The 58828 has the Next18 connector plug and can be used to directly plug onto the Mainboard Next18 part 51955. With a footprint of 21mm x 10 mm it is one of the smallest full featured sound decoders available. The V5 DCC Micro is also suitable for H0 locomotives where space is an issue. LokSound V5 DCC Micro decoders are equipped with a Next18 interface and are available with adapter plugs to suit all popular digital interface types.
Consult your locomotive manual to determine the appropriate type of decoder.
“Full Throttle” Decoder Operation for Diesels
It is often challenging to make a scale model perform like it has the mass of a 260,000lb locomotive pulling 5,000 tons or more! Some of this can be done with BEMF - when the loco “feels” a load, it will automatically rev up to work harder to pull this actual load. But this is often a flawed method in modeling. Today, model train car wheels are so free rolling the cars often do not simulate sufficient drag to replicate a typical prototype situation. Also, often we do not sufficiently weigh our cars to represent a scaled-down version of the prototype.
One of the biggest problems with BEMF controlled load is in our modeling and operations we often “simulate” loads inside a closed car. The payload inside a prototype car can weigh as much as 100-tons more than the car itself. This is especially important at operating sessions. Empties in and Loads out or vice versa. There is no way for a decoder to know the proposed weight of the cars it is pulling. Our “car cards”, showing whether a car is loaded or empty, are seen only by the operator, not by our decoders!
To compensate for what the decoder cannot know, we have created Full Throttle decoder features! FT features include “Drive Hold”, “Run 8”, “Coast”, improved “Dynamic Brakes” and a new “Independent Brake” feature.
Operating Modes
The V5 decoder supports all DCC programming modes and thanks to RailCom® you may read out the CV values on the main, provided you have a command station supporting RailCom®. There are utility registers for command stations that only facilitate programming of CVs ranging from 1 to 255.
The LokSound 5 decoder supports the Märklin® braking sections, ZIMO® HLU braking commands or the Lenz® ABC system. Braking with DCC brake generators or with DC is also possible. The locomotive with a LokSound 5 decoder will also come to a halt when a Selectrix® braking diode is switched into the circuit. The ABC push-pull feature enables the automatic commuting between two stations.
The LokSound 5 decoder is suitable for analog DC operation, AC and DCC command control.
Sound
The LokSound V5 decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and for all practical purposes, one cannot detect any difference to the original. A dual class D audio power amplifier with 3W output power feeds the speakers with a permitted impedance of 4 – 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity.
The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail movements. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your locomotives.
Functions
Subject to the type of interface, every LokSound V5 Micro has at least 6 amplified outputs as well as one logic output with multiple lighting functions available. The brightness of each output may be adjusted separately.
Motor control
The LokSound V5 Micro decoder supplies up to 0.75A motor current and motor control has been improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz results in silent operation, particularly for coreless motors making motor hum a thing of the past. Load control can now be adjusted with up to 10 separate CVs and will manage even the most difficult motor control issues. The unique “Auto-Tune” function facilitates the automatic calibration of the decoder to perfectly match the motor.
