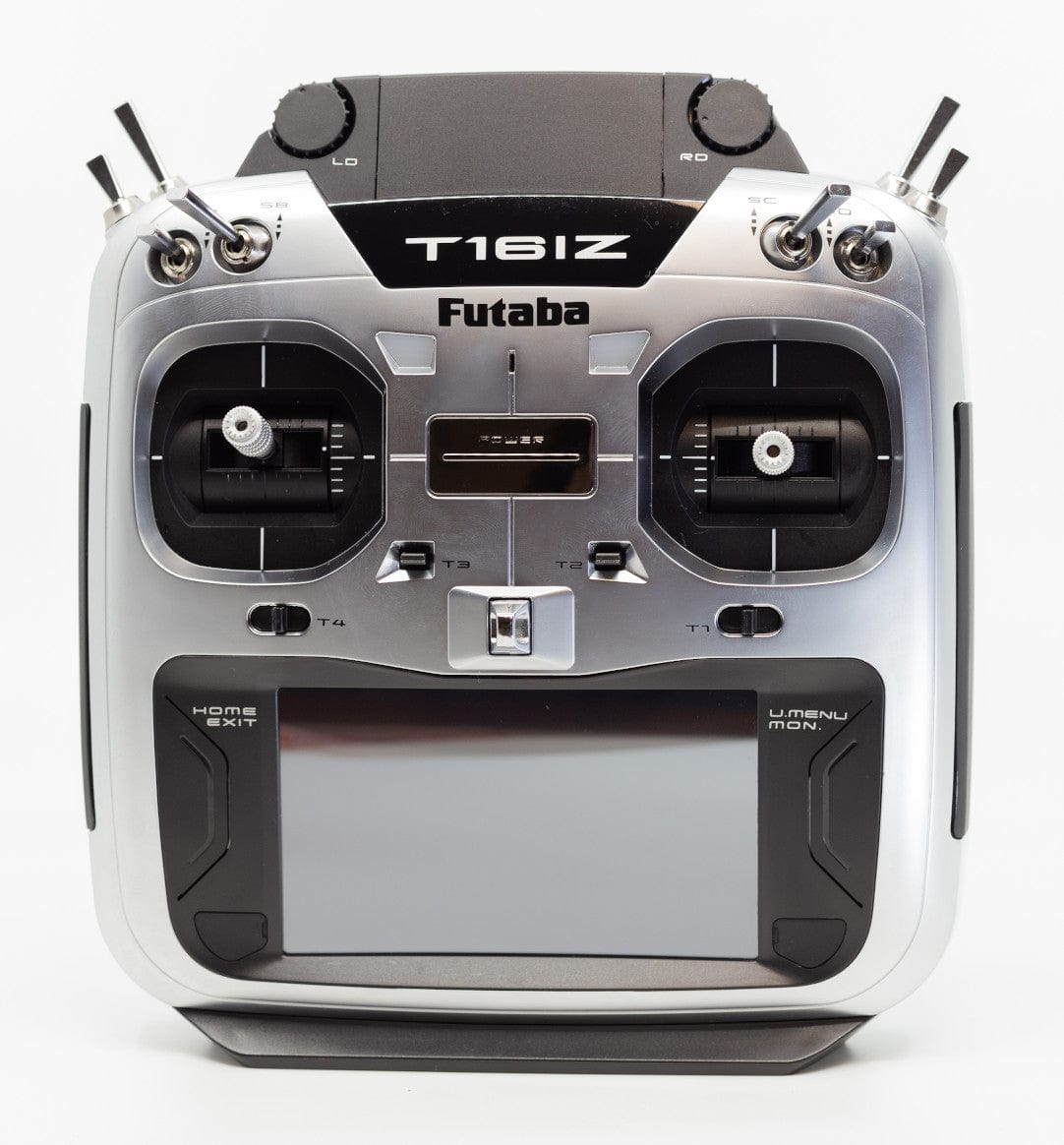

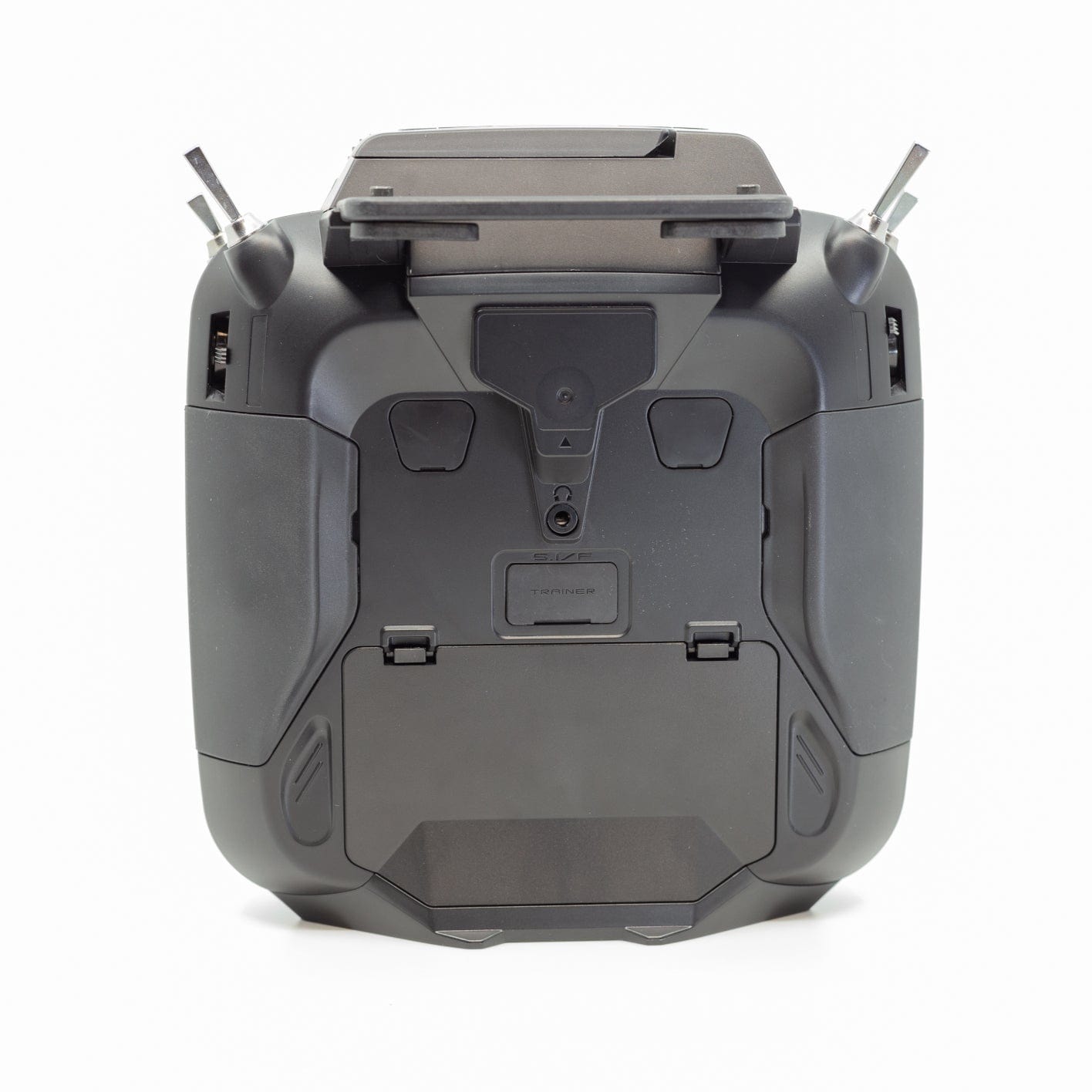

Futaba 16IZS Transmitter With R7308SB RX & USB Charger Mode 2
Futaba 16IZS Transmitter With R7308SB RX & USB Charger Mode 2 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
-
Description
-
Returns
-
Shipping
FEATURES
FASSTEST SYSTEM:
The 16IZ transmitter adopted the bidirectional communication system “FASSTest”. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system.
S.BUS2 SYSTEM:
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.
USB SIMULATOR CONTROL:
The T16IZ offers USB C compatibility for simulator control when used with Windows OS Joystick function.
COLOR TOUCH SCREEN LCD:
T16IZ has an updated HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
MULTI HOLDER:
T16IZ Offers Multi holder near the antenna/charging port. It allows for accessories to be mounted using an M3 style screw.
Voice Telemetry:
The T16IZ allows for audible telemetry data to be read aloud for easy understanding of crucial parameters while flying.
SECURE DATA (SD CARD):
Model data, music files, voice files, and picture files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T16IZ.
HIGH CAPACITY LITHIUM POLYMER BATTERY (2000 MAH):
The high capacity 2S Lithium Polymer battery gives you extended flight time.
EDITING:
The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you.
FUNCTIONS:
The internal processor the response time. Most of the mixing functions are operated by curves which give you very precise settings.
STICK:
Each stick offers our reliable single ball bearing for each axis. With our high cycle potentiometer this allows for finer and more precise operation.
VIBRATION FUNCTION:
Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.
R7108SB:
The system comes with the R7108SB S.Bus2 Dual Antenna Diversity receiver featuring bi-directional communication.
TRANSMITTER SPECS
TRANSMITTER FREQUENCY:2.4 GHz band
OPERATING SYSTEM:2-Stick, 18-Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System
POWER SUPPLY: 7.4 V LT2F2000B Lithium-polymer battery
RF POWER OUTPUT: 100 mW EIRP
RECEIVER SPECS (R7108SB)
SIZE: 24.9 mm x 47.3 mm x 14.3 mm
WEIGHT: 12.0 g
POWER REQUIREMENTS: 6.6 V LiFe Battery
CURRENT DRAIN: 75 mA
RF POWER OUTPUT: 25 mW EIRP
- Includes
- T16IZ Transmitter (Air Version includes ratcheting throttle, Helicopter Version includes smooth throttle)
- R7108SB
- LT2F2000B Lithium Polymer Battery and USB cable for charging
- Switch Harness
- Neck Strap
- Manual
