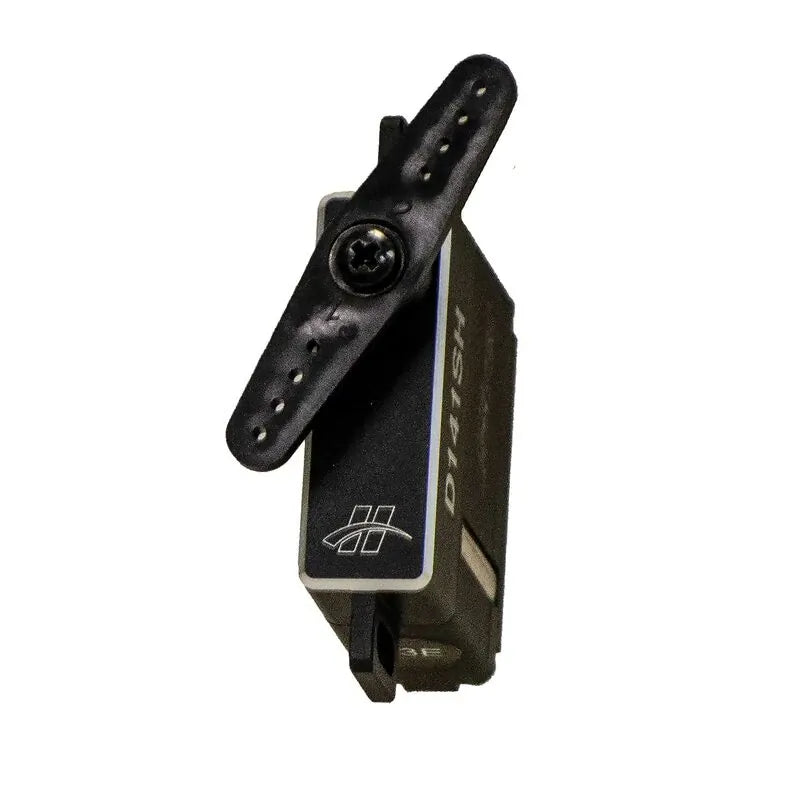

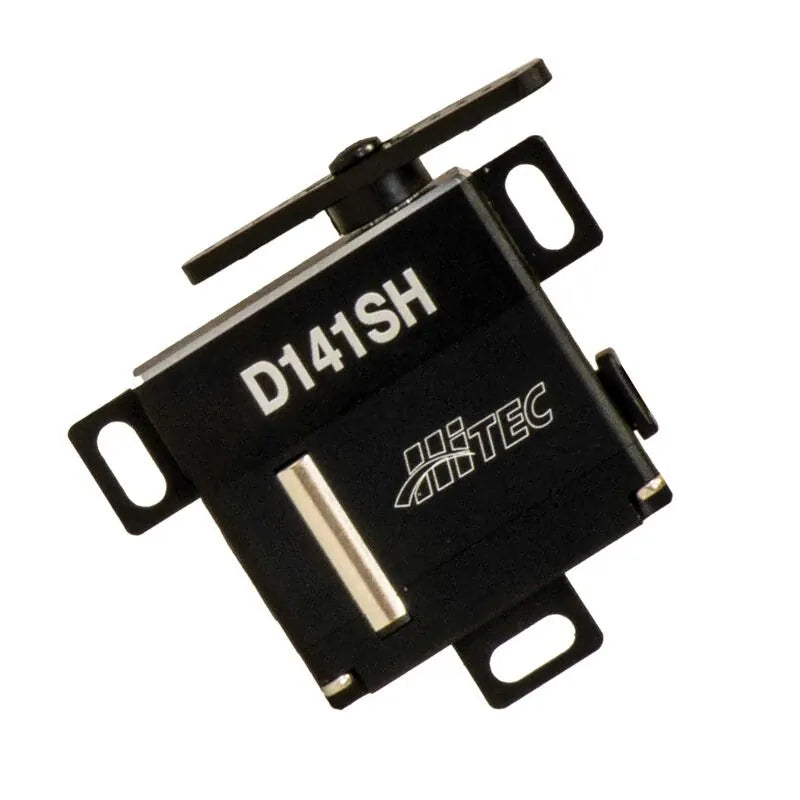

Hitec D141SH 10mm Digital Metal Gear Wing Servo
Product details
The Hitec D141SH is a slim 10mm digital wing servo with metal gearing, designed for compact wing installations in RC aircraft.
Features:
- Wide Operating Voltage 3.5~8.4V
- Coreless Motor
- Durable Steel Gears
- All Aluminum Case
- 32-Bit MCU Technology / 4096 Resolution
- High Response, High Resolution Circuitry
- Smart Sense Technology for Servo Analytics
- Full Programmability with DPC11 or HFP-30 (sold separately)
- H25T Industry Standard Output Spline
- Perfect for High-performance Larger Gliders
Programmable Functions
-
End Point Adjustments
-
Direction
-
Fail Safe
-
Dead Band
-
Speed (Slower)
-
Soft Start Rate
-
Overload Protection
-
Data Save / Load
-
Program Reset
Specifications:
- Operating Voltage Range (Volts DC)
- 3.5V ~ 8.4V
- Speed (Second @ 60°)
- 0.10 @ 7.4V
- Torque (oz. / in.)
- 97.21 @ 7.4V
- Torque (kg. / cm.)
- 7.0 @ 7.4V
- Current Draw at Idle
- 30 mA
- No Load Operating Current Draw
- 160 mA
- Stall Current Draw
- 2,500 mA
- Dead Band Width
- 2μs
- Dimensions (Metric)
- 30.0 x 10.0 x 29.5
- Weight (Ounces)
- 0.917
- Weight (Gram)
- 26
- Circuit Type
- N / A
- Motor Type
- Coreless
- Gear Material
- MP 1st Gear & 4 Steel Gears
- Bearing Type
- Dual Ball Bearing
- Output Shaft (type / Ømm)
- 25
- Case Material
- Metal
- Dust / Water Resistance
- IP65
- Connector Gauge (AWG) / Strand Count
- 24
