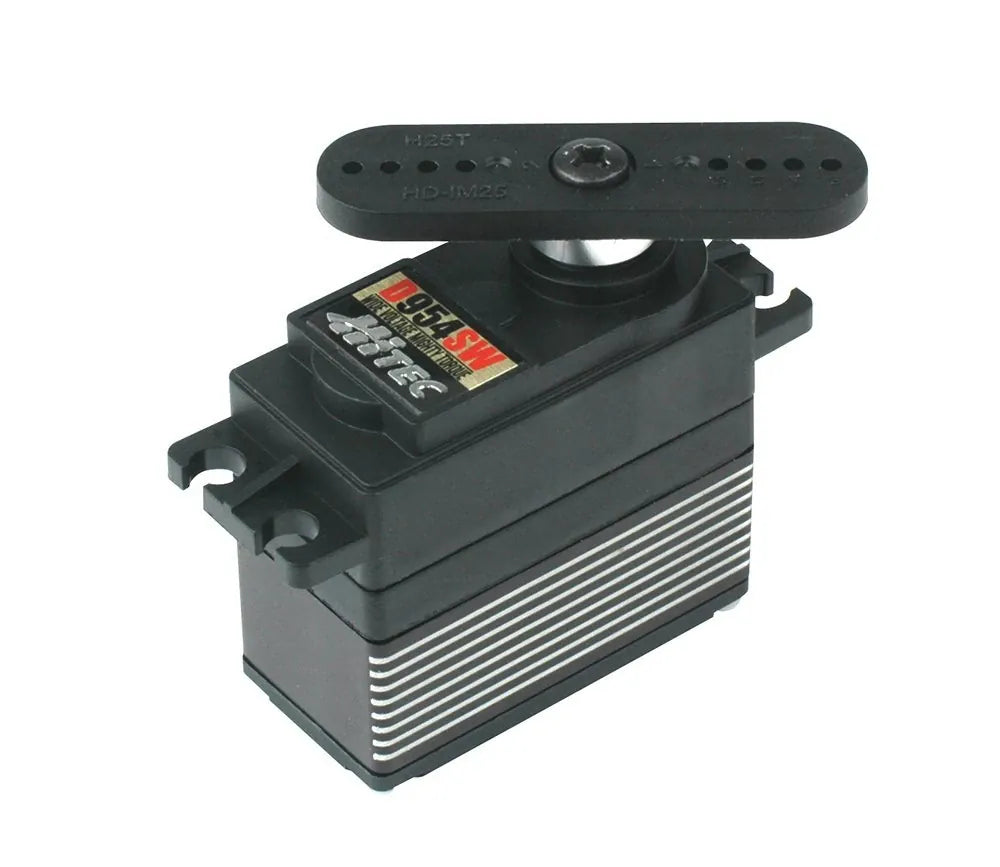

Hitec D954SW Digital HV High Torque Servo
Stock is located in our suppliers warehouse.
Please allow 10 - 15 days for stock to arrive.
Product details
The Hitec D954SW is a digital high-voltage high-torque servo for precision RC control applications.
The new D954SW servo from HITEC uses coreless motor and 7.4V highvalue. The 32bit MCU and 12bit ADC applied to high-end servo ensure smooth, accurate moderation and neutrality. In addition, the HFP-30 product has been programmed for optimal use in various environments. Wide (4.8 ~ 8.4) voltage function is available for various battery types, ensuring excellent servo operation characteristics even with voltage variations. The 3mm servo horn screw and 25T spline standard, which are standard on standard servo, are designed to be compatible with various servo accessories.
Features:
- High Resolution 32bit Digital Circuitry w/ 12bit ADC
- 1M Cycle, Long Life Potentiometers
- Wide Operating Voltage (4.8 ~ 7.4V)
- IP65 Rated Cases
- 25 Tooth Output Shaft
- Customization and Modification Options Available
Products Information:
The new D954SW servo from HITEC uses coreless motor and 7.4V highvalue. The 32bit MCU and 12bit ADC applied to high-end servo ensure smooth, accurate moderation and neutrality. In addition, the HFP-30 product has been programmed for optimal use in various environments. Wide (4.8 ~ 8.4) voltage function is available for various battery types, ensuring excellent servo operation characteristics even with voltage variations. The 3mm servo horn screw and 25T spline standard, which are standard on standard servo, are designed to be compatible with various servo accessories.
Programmable Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
Specifications:
- Operating Voltage Range (volts DC)
- 4.8V ~ 7.4V
- No Load Speed (second @ 60°)
- 0.19 ~ 0.12
- No Load Speed (RPM)
- 53 ~ 83
- No Load Speed (deg. per sec.)
- 316° ~ 500°
- Maximum Torque Range (oz. / in.)
- 251 ~ 405
- Maximum Torque Range (kg. / cm.)
- 18.0 ~ 29.0
- Maximum Torque Range (Ncm.)
- 176.5 ~ 284.4
- Current Draw at Idle (mAh)
- 30
- No Load Operating Current Draw (mAh)
- 500
- Stall Current Draw (mAh)
- 5200
- Dimensions (millimeters)
- 40.0 x 20.0 x 37.0
- Weight (grams)
- 68
- Motor Type
- Coreless
- Rated Motor Lifecycle
- 25,000 Cycles
- Position Sensor
- Mech Pot
- Position Sensor Rated Lifecycle
- 1 Million
- Gear Material
- MK 1st Gear & 3 Steel Alloy Gears
- Bearing Type
- Dual Ball Bearing
- Output Shaft (type / Ømm)
- 25 / 6
- Case Material
- Plastic / Aluminum
- Dust / Water Resistance
- Dust / Splash
