Description

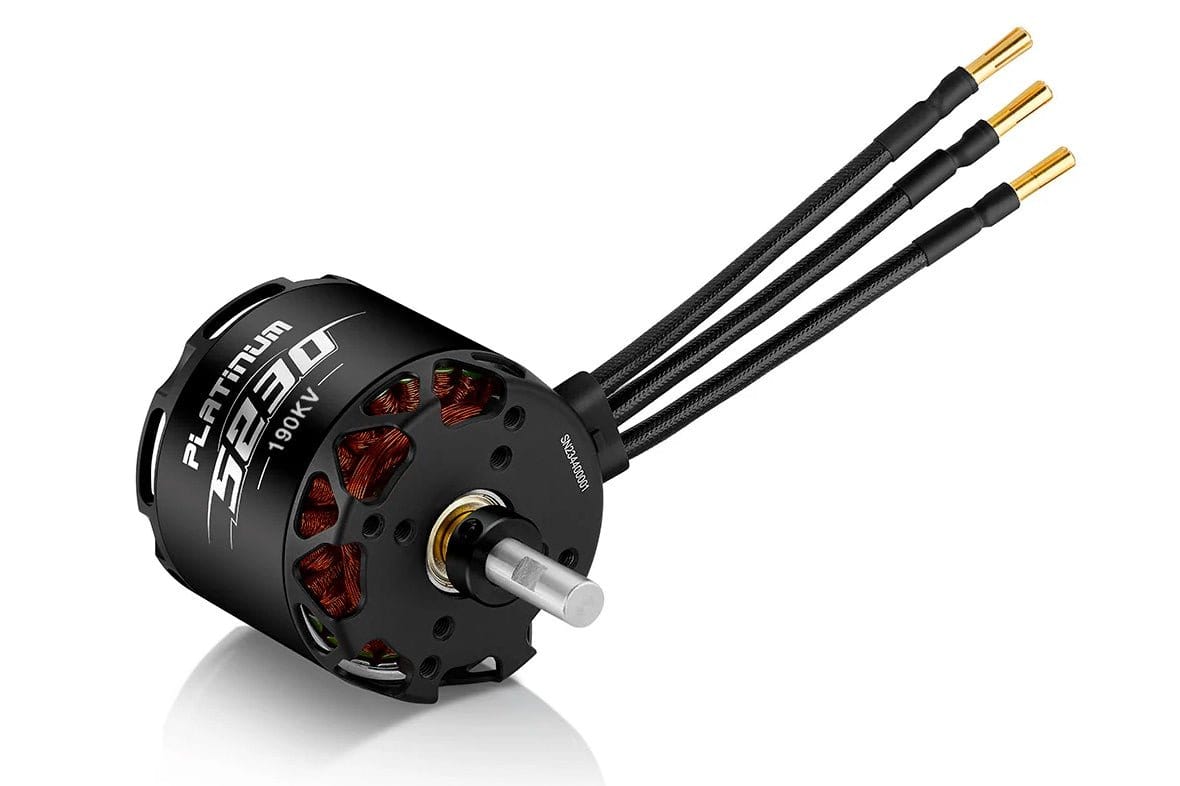

This is the Hobbywing Platinum 5230SL Brushless Outrunner Motor - 190KV [30416200]
Hobbywing Platinum 5230SL 190KV Fixed Wing Motor
Dual Dynamic Balance Technology to control motor vibration: The rotor and the complete machine undergo dynamic balancing. The rotor dynamic balancing is completed first, then the operating conditions are simulated. A secondary dynamic balance test is performed on the motor to ensure smooth operation and eliminate any imbalance in the assembly.
Unmatched efficiency and powerful performance: Efficiency is boosted by over 2.5% compared to competing motors with the same specifications.
Superior heat dissipation ensures the motor stays cooler: The motor's continuous running time is extended by over 30% compared to competing motors with the same specifications, offering longer performance even under heavy load.
Patented Propeller Locking System for Enhanced Flight Safety: The patented locking design of the propeller mount features an innovative system that effectively prevents the propeller from detaching due to a loose mounting nut, ensuring a safer flight.
Diamond-Shaped Anti-Slip Propeller Mountfor Enhanced Safety and Reliability: Diamond-Shaped Anti-Slip Design of the Propeller Mounting Seat The propeller mount seat features a diamond-shaped anti-slip design that effectively prevents the propeller from slipping or free spinning, ensuring greater safety and reliability.
Product Specifications
- Motor Size: Φ60.2 * 93.5mm
- Stator Size: Φ51.7 * 30mm
- Stator Process: High standard silicon steel sheet, 180°C high temperature resistance paint-coat
- Enamelled Wire: 200°C
- Props Mounting Dimensions: Φ22mm-3*M4
- Motor Mounting Dimensions: Φ30mm-4M4; Φ44mm-4M4
- Slot & Pole: 24N28P
- Dynamic Balance: ≤10mg
- Bearing: 1560ZZ, 698ZZ
- Motor Axle Diameter: Φ8mm
- Isolation Test: 500V AC high voltage resistance test
- KV: 190
- Battery (LiPo): LiPo-10~12S
- No-load Current: 3.0A / 44.4V
- Maximum Current (Non-hermetic, Ambient Temperature ≤ 25°C): 112.5A / 42s
- Max Power: 4985W / 42s
- Max Thrust: 14.99kg
- Resistance: 22mΩ
- Wire Size: Enamelled Wire Output
- Wire Length: 100mm
- Weight (With Wire): 582g
- Recommended ESC: PLATINUM 130A V4, PLATINUM 180A V5
- Recommended Propeller:
- 10S: 20x10E, 22x10E, 22x12E
- 12S: 20x8E, 20x10E, 22x10E
