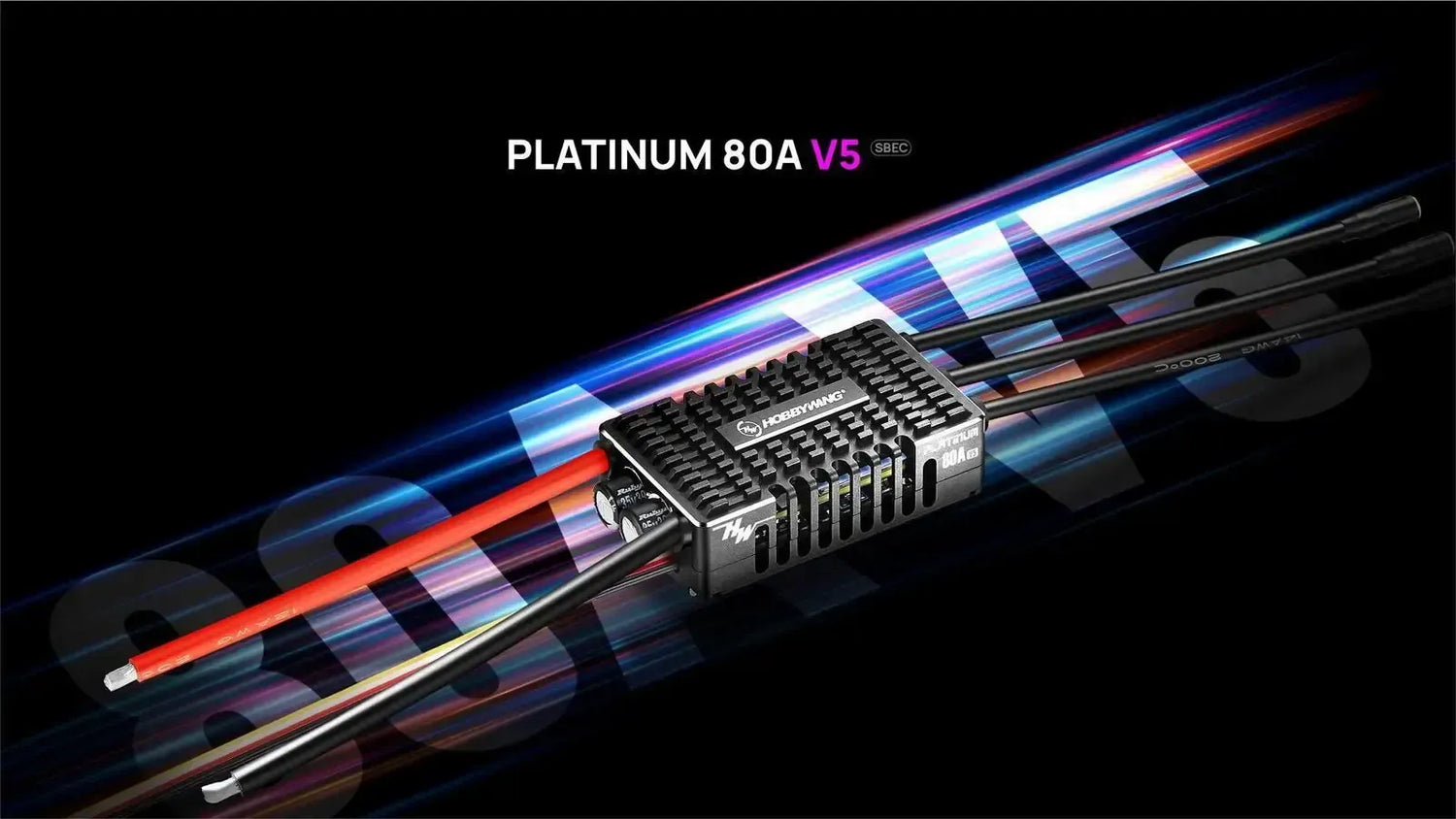

Hobbywing Platinum 80A V5 Brushless ESC
Hobbywing | SKU:
HW30203201
$199.99
Unit price
/
Unavailable
Buy now, pay later
Product details
This is the Hobbywing Platinum 80A V5 Brushless ESC
Product Information
- Product Name: Platinum 80A V5
- Product Number: 30203201
- Type: Brushless (BL)
- High Voltage/Regular: Regular
Specifications
- Continuous/Peak Current: 80A / 120A
- Input Voltage: 3-8S LiPo
- BEC Output: Switch Mode: 5-12V, Continuous 8A, Peak 20A
Wires & Connectors
- Input Wires: Red - 12AWG - 100mm, Black - 12AWG - 100mm
- Output Wires: Black - 14AWG - 100mm (x3)
- Input Connectors: None
- Output Connectors: 3.5mm Gold Connectors (Female)
ESC Programming
- Transmitter: Not Supported
- LED Program Card: Not Supported
- LED Program Box: Not Supported
- LCD Program Box: Supported
- OTA Programmer: Supported
- Program Port: Separate Program Port
Firmware
- Firmware Upgrade: Supported
Telemetry Function
- Supported Systems: Mikado VBar, Futaba S.Bus2, etc.
Size & Weight
- Size: 60.5 x 33 x 17.6mm (without fan)
- Weight: 77.5g (with wires, no fan)
Application Scope
- Suitable for 325-420 class electric helicopters (main blade length 325-420mm) or fixed-wing aircraft.
