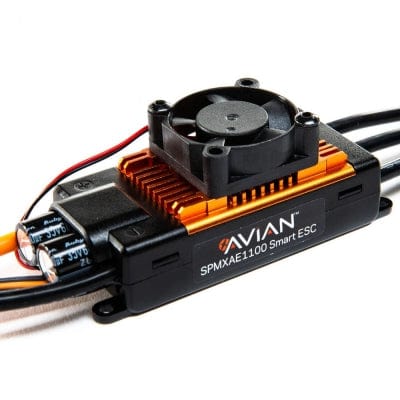

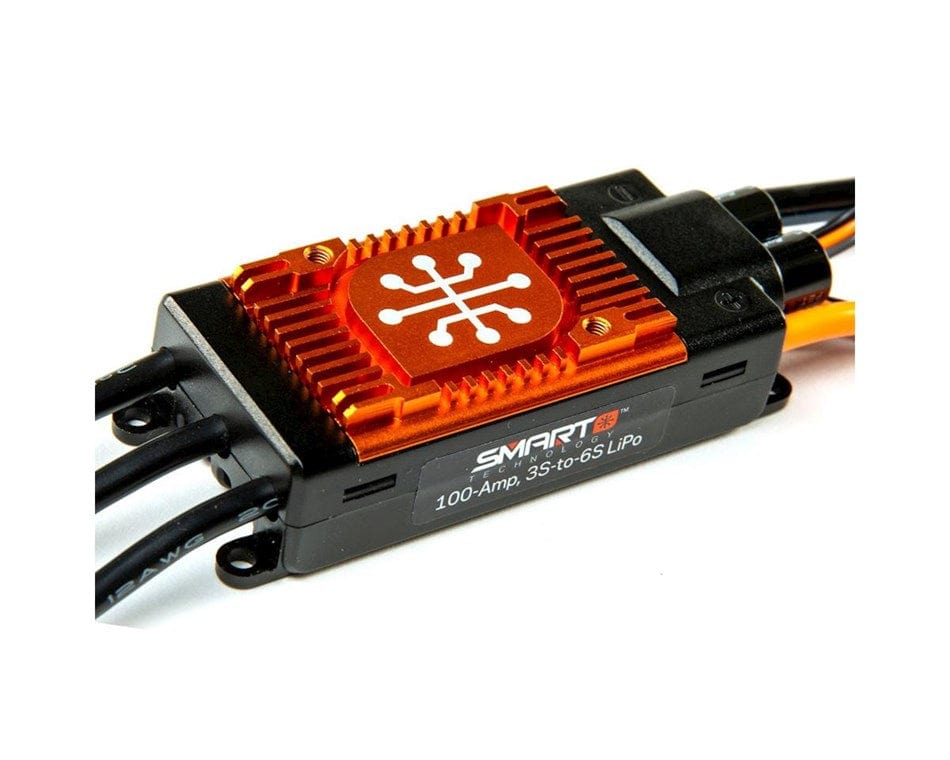

Spektrum Avian 100A Brushless Smart ESC

Spektrum Avian 100A Brushless Smart ESC is backordered and will ship as soon as it is back in stock.
Please note: Card payments may require additional verification (click to learn more)
Couldn't load pickup availability
-
Description
-
Returns
-
Shipping
Spektrum Avian 100 Amp Brushless SMART ESC. Like every component in the Spektrum Smart ecosystem, Avian Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.
Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.
Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Features:
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Multiple options for easy programming:
Smart ESC Programming Box
SmartLink USB Updating and Programmer application
Throttle stick programming
Multi-point protection:
Over-current protection
Automatic LiPo low-voltage cutoff
Thermal protection
Failsafe protection
Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
Compact for easy installation in most applications
Ready to install — no soldering required
Rugged plastic case
Heat dissipating design
Tabs included for a hard mount
Aluminum heat sink for high efficiency
Cooling fan
Adjustable high-power BEC
Dual BEC power connectors
Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
Limited 1-year warranty
Specifications:
Forward: Y
Reverse: N
Brake: Y
Time Delay Brake: Y
Continuous Maximum Current: 100A (120A Max Burst)
Input Voltage: 11.1 - 22.2V
Input Connector Types: IC5 with 12AWG, 150mm wire
Output Connector Types: 4.0mm Female Bullet with 12AWG, 150mm wire
Length: 3.0in (76mm)
Width: 1.4in (35mm)
Height: 1.3in (33mm)
Weight: 126g (4.4 oz)
Wire Gauge: 12AWG
Includes:
(1) Spektrum™ Avian™ Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product Manual
