Description

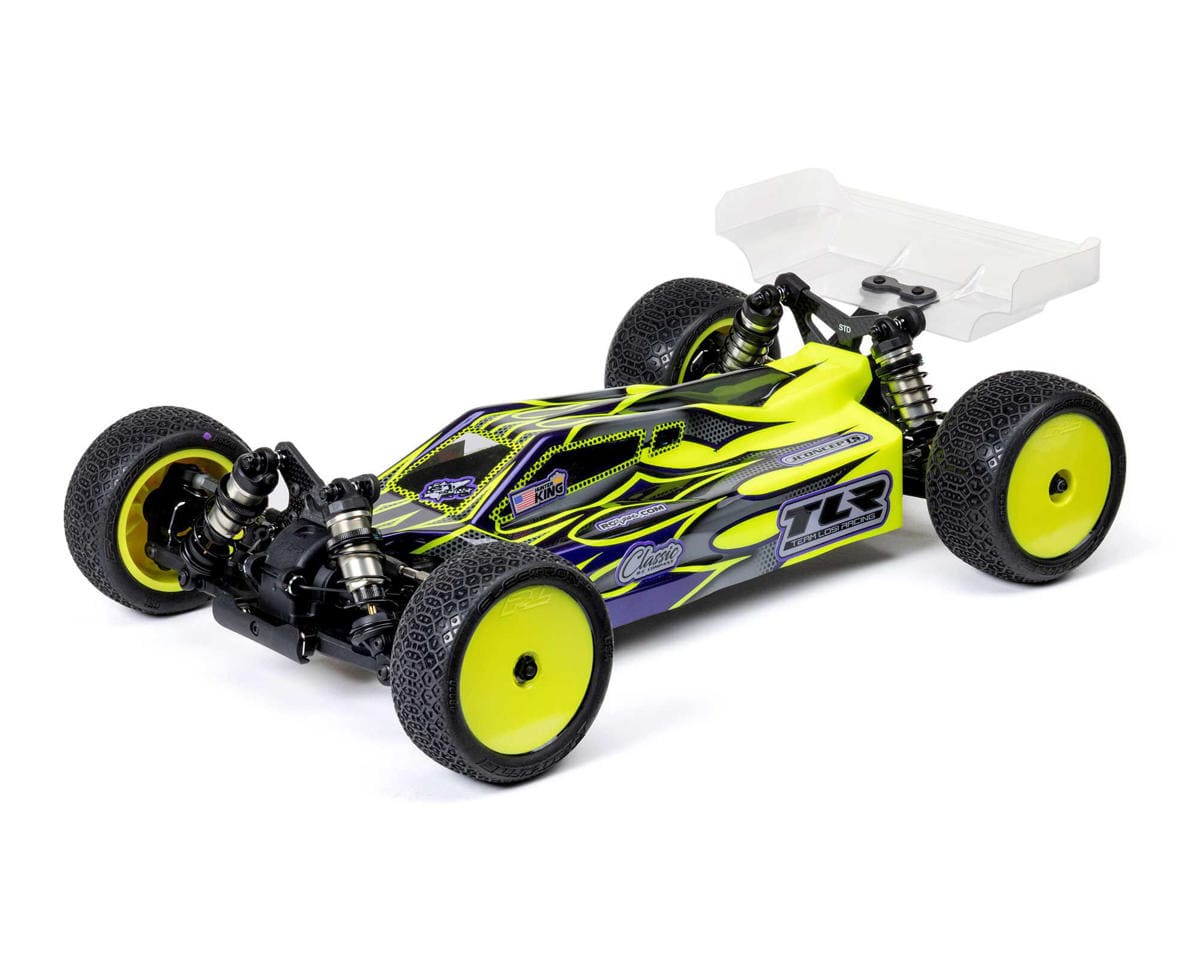

The TLR 22X-4 2.0 DC 1/10 4wd Race Buggy Kit is a genuine TLR 1/10 scale, 4WD drivetrain, buggy, kit intended for RC enthusiasts looking for a manufacturer-supported platform.
22X-4 2.0 DC - Championship Winning 4WD Performance!
The Team Losi Racing 22X-4 2.0 DC 1/10 4WD Buggy Race Kit is the next evolution of a championship-winning platform. Built on years of development from the legendary TLR 22 series, this kit is optimized specifically for modern high-grip dirt and clay tracks. With increased adjustability, refined geometry, and premium materials throughout, it’s designed to be faster, easier to tune, and simpler to maintain.
About the 22X-4 2.0 DC

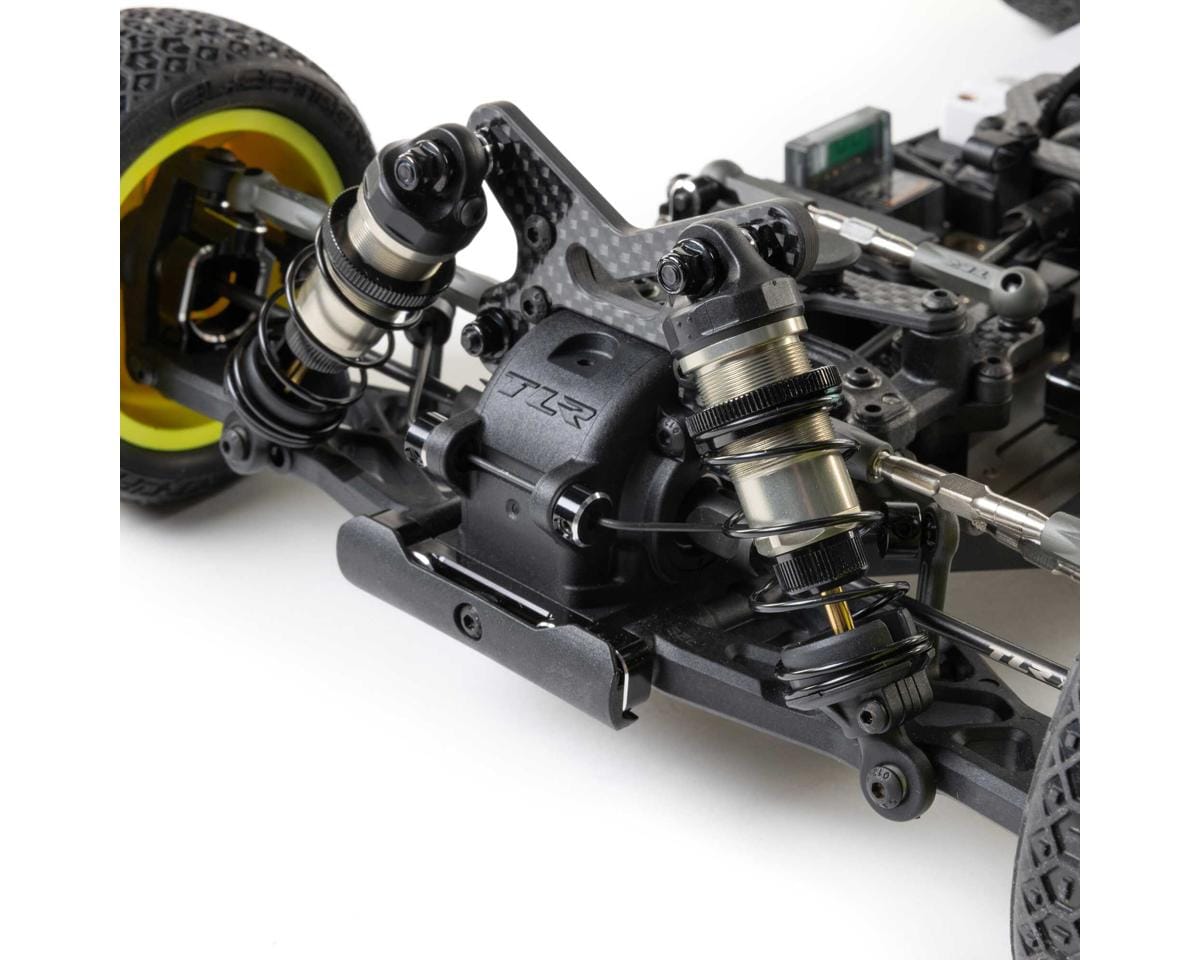

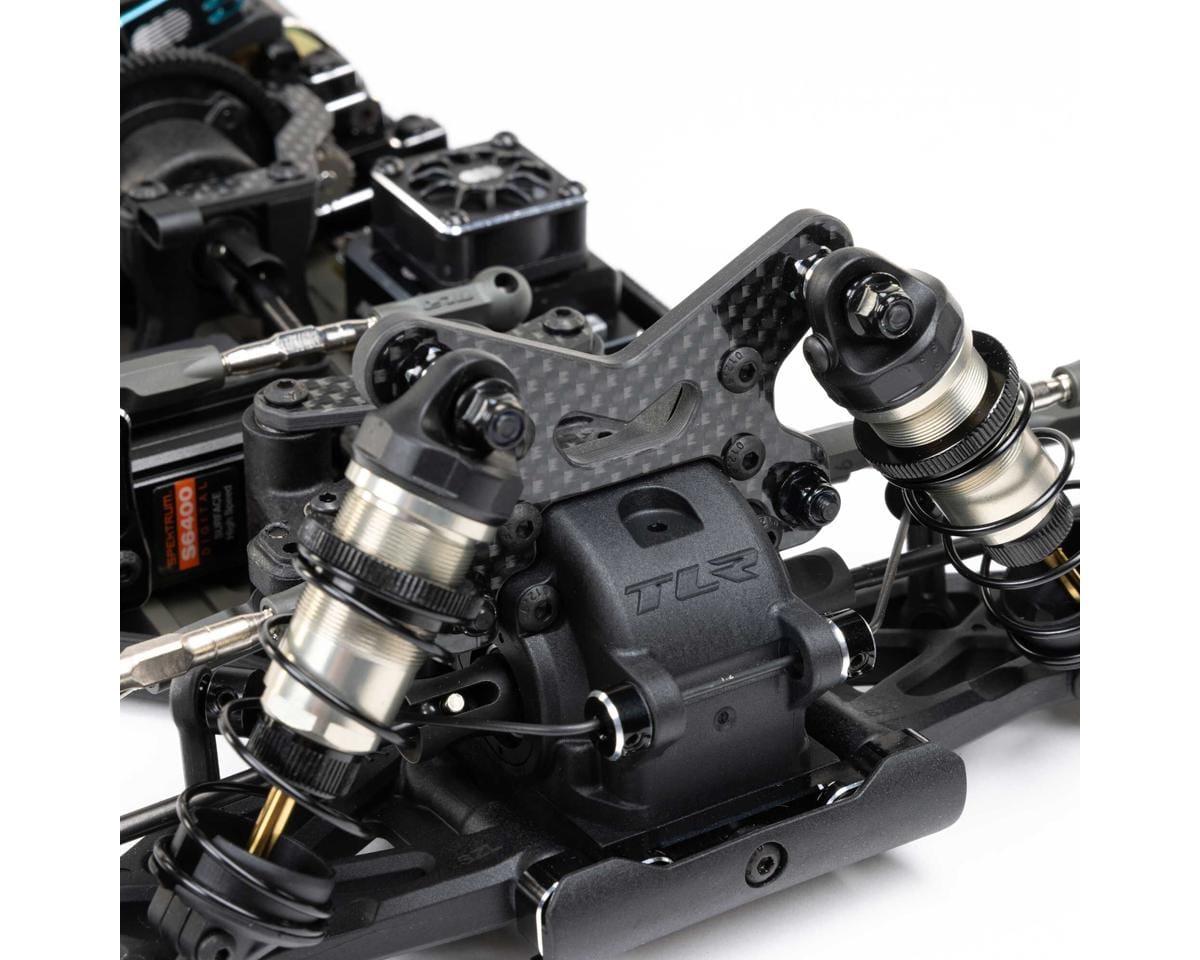

G3 13mm Big-Bore Shock Performance

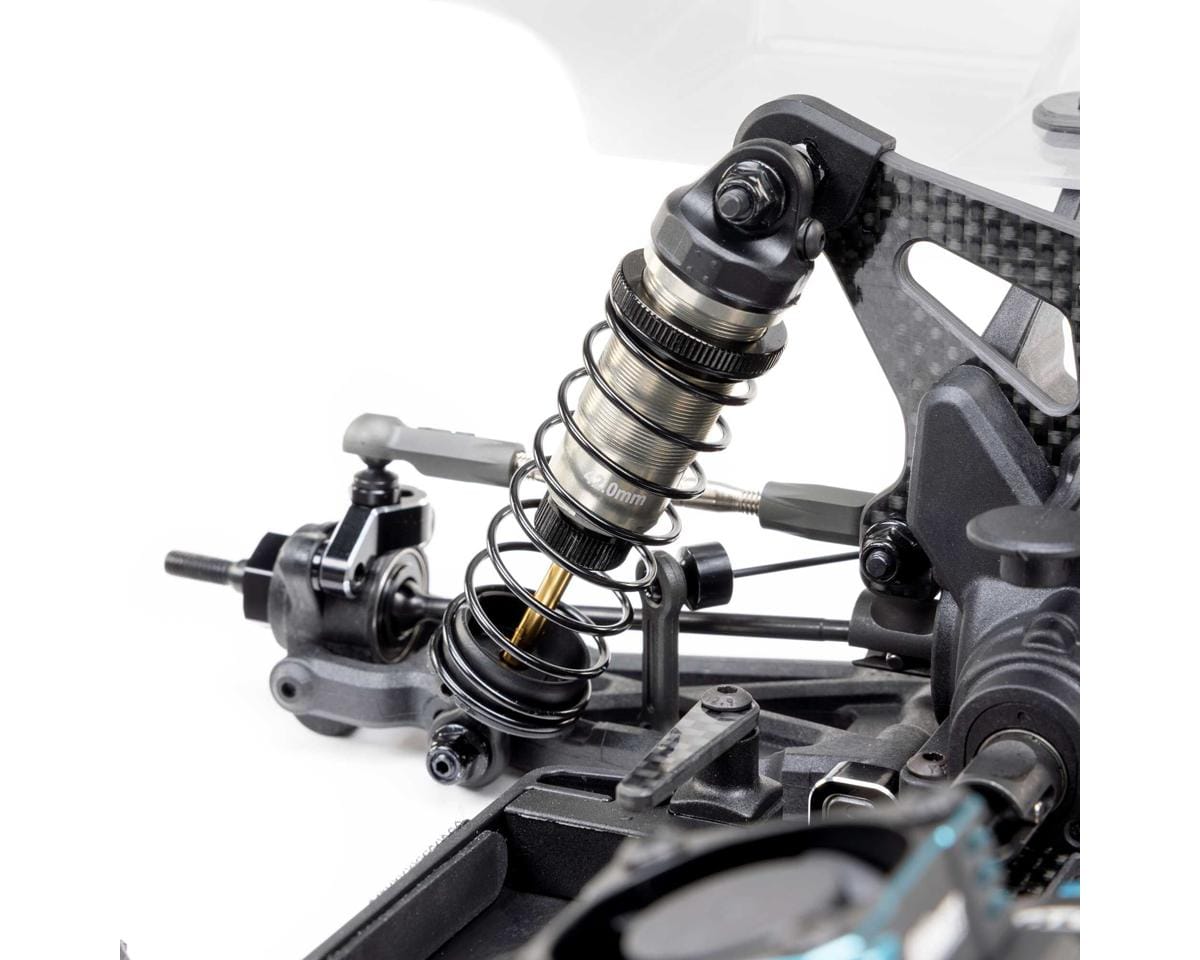

The 22X-4 2.0 DC comes equipped with larger G3 13mm big-bore shocks that deliver improved handling, consistency, and corner speed on today’s demanding tracks. Paired with 13mm springs and updated 3mm internals, these shocks provide smooth damping and excellent support over rough sections and high-grip surfaces. Optimized mounting locations and gullwing front arms help lower the center of gravity for enhanced stability. The result is predictable handling and increased confidence when pushing at race pace.
Maximum Tunability For Any Track
Designed to adapt to virtually any racing surface, the 22X-4 2.0 DC features adjustable differential heights, inner pivots, caster inserts, and Variable Height Axle (VHA) rear hubs. Racers can fine-tune anti-squat, toe, roll center, kick-up, and axle height to dial in side bite and forward traction. The included center differential and decoupled slipper system further expand tuning options for dirt and clay conditions. This level of adjustability allows drivers to optimize performance without purchasing additional upgrade parts.
Premium Materials And Race-Ready Components

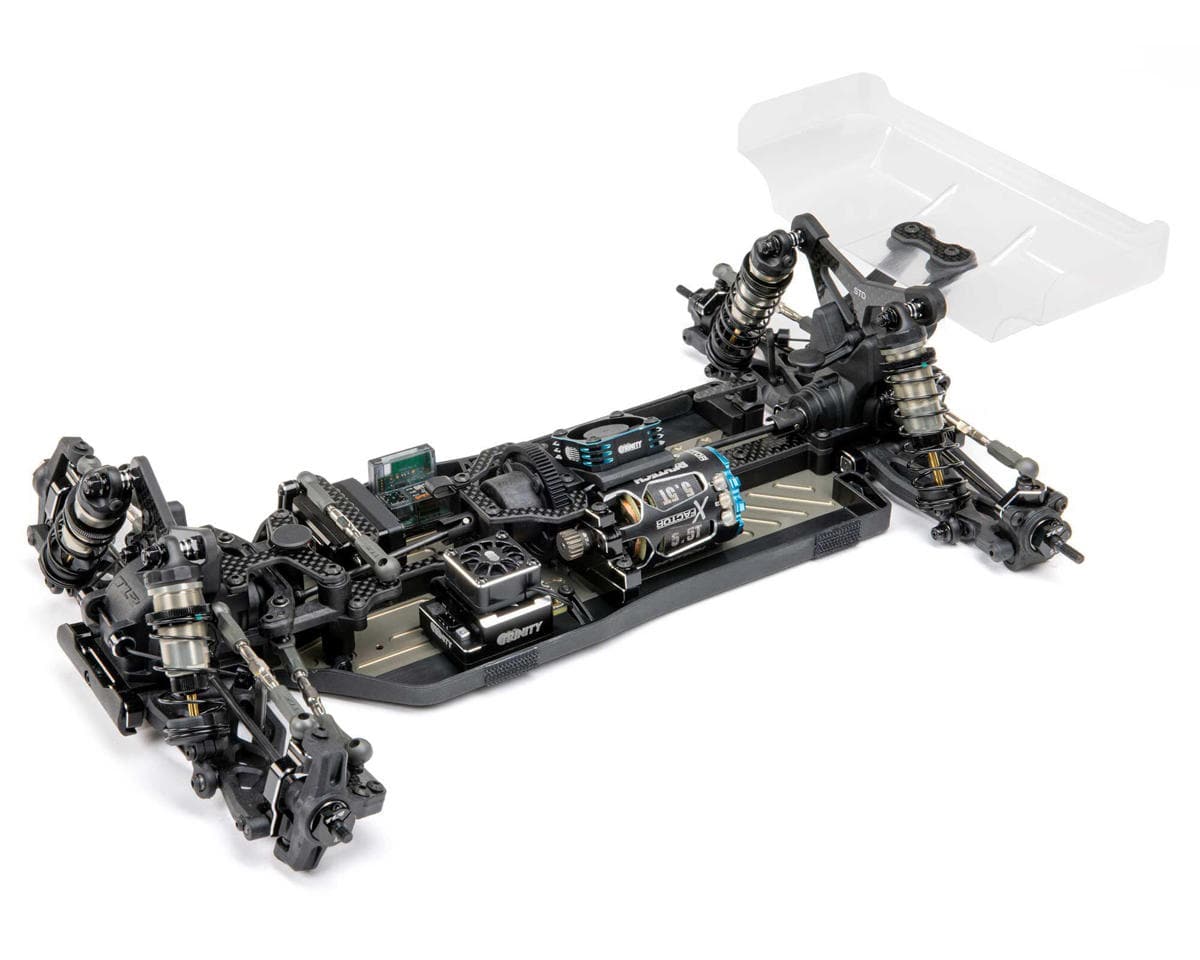

A hard-anodized 2mm 7075-T6 aluminum chassis forms the backbone of the 22X-4 2.0 DC, delivering strength, precision flex, and durability. Woven 4mm carbon fiber shock towers, aluminum option parts, and glass-filled composite components enhance rigidity while keeping weight low. The kit also includes a lightweight Pro-Line Sector body and Air Force 7” rear wing for optimal aerodynamics and balance. Every component is designed to maximize performance, durability, and race-day reliability.
Features:
- Hard-Anodized 7075-T6 Aluminum Chassis
- G3 13mm Big-Bore Aluminum Shocks
- Adjustable Differential Height Front And Rear
- High-Volume Gear Differentials
- Included Center Differential
- Variable Height Axle Rear Hubs
- 4mm Woven Carbon Fiber Shock Towers
- Adjustable Caster Inserts 6°–12°
- Dogbone Center Driveline
- Lightweight Pro-Line Sector Body And 7" Wing
Specifications:
| Scale | 1:10 |
|---|---|
| Drive | 4WD |
| Power Source | 2S LiPo |
| Length | 14.8in (376mm) |
| Wheelbase | 11.3in (287mm) |
| Width | 9.8in (250mm) |
| Height | 5.8in (147mm) |
| Weight | - |
| Assembly Level | Kit |
*NOTE: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
Includes:
- (1) 22X-4 2.0 DC 1/10 4WD Buggy Race Kit (Dirt/Clay)
- (1) Pro-Line Sector 22X-4 2.0 Clear Body
- (1) Pro-Line Air Force 7" Wing
- (1) Tuning Parts Bag
- (1) Spare Hardware Bag
- (1) 22X-4 2.0 Decal Sheet
- (1) Product Manual
Needed To Complete:
- (1) Transmitter and Receiver
- (1) Steering Servo
- (1) 2S LiPo Shorty Battery
- (1) Compatible LiPo Battery Charger
- (1) 48P Pinion Gear
- (1) Motor
- (1) ESC
- (1) Tire Glue
- (2) 2.2” Buggy Wheels (4WD FR, Buggy RR)
- (2) 2.2” Buggy Tires (4WD FR, Buggy RR)
- Polycarbonate Paint
- Tools
