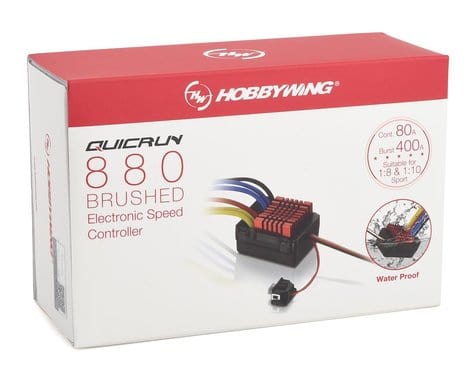

Hobbywing 30120301 1/8 or 1/10 Quicrun 880 Brushed Waterproof ESC
Hobbywing 30120301 1/8 or 1/10 Quicrun 880 Brushed Waterproof ESC is backordered and will ship as soon as it is back in stock.
Please note: Card payments may require additional verification (click to learn more)
Couldn't load pickup availability
-
Description
-
Returns
-
Shipping

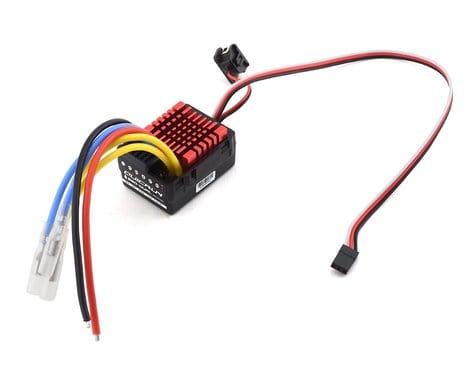

This is the Hobbywing QuicRun 880 Waterproof Dual Brushed Crawling ESC.
Features:
Fully waterproof design for all conditions. (Note: Please clean and dry it after use for avoiding rusty connectors).
HOBBYWING patented copper heat-conductive plates attached to the MOSFET board allows the internal heat to be quickly transferred to the aluminum heat sink for great heat dissipation.
Built-in switch-mode BEC with cont. current of 4A.
Tunable drag brake and drag brake rate for different vehicles, tracks, and control feel.
Adjustable PWM frequency combined with advanced freewheeling (/DEO) technology guarantees great throttle linearity and driving feel.
9 levels of acceleration/ punch from soft to aggressive for different vehicles, tires and tracks.
Proportional brake with 9 levels of initial brake force, maximum brake force, and drag brake force.
Multiple protections: low-voltage cutoff protection, thermal protection, and throttle signal loss protection.
Separate programming port to easily connect the LED program card to the ESC.
ESC programming via HOBBYWING LED Program Card.
Specifications:
Cont./Peak Current: 80A/400A
Motor Type Supported: Brushed Motor (540, 550, 775 Size Motor)
Applicable Car: 1/10th Vehicles & MOA style comp crawlers
Motor Limit:
Brushed Motor Limit with 2S LiPo /6S NiMH: ≥ 12T or RPM<30000@7.4V (540, 550 Size Motors)
Brushed Motor Limit with 3S LiPo /9S NiMH: ≥ 18T or RPM<20000@7.4V (540, 550 Size Motors)
Brushed Motor Limit with 4S LiPo /12S NiMH: ≥ 24T or RPM<15000@7.4V (540, 550 Size Motors)
LiPo / NiMH Cells: 2-4S LiPo or 5-12S NiMH
BEC Output: 6A@4A (Switch-Mode)
Connectors: Input End: No Connectors; Output End: 4.0mm Female Bullet Connectors
Size/ Weight: 45.9x34.7x26.5mm/ 75g
Programming Port: Separate Port
Waterproof: Yes
NOTE: WP-880-DUAL BRUSHED ESC has two outputs to drive 2 motors. When driving 2 motors simultaneously, the Turn of the motors needs to be increased.
