Product details

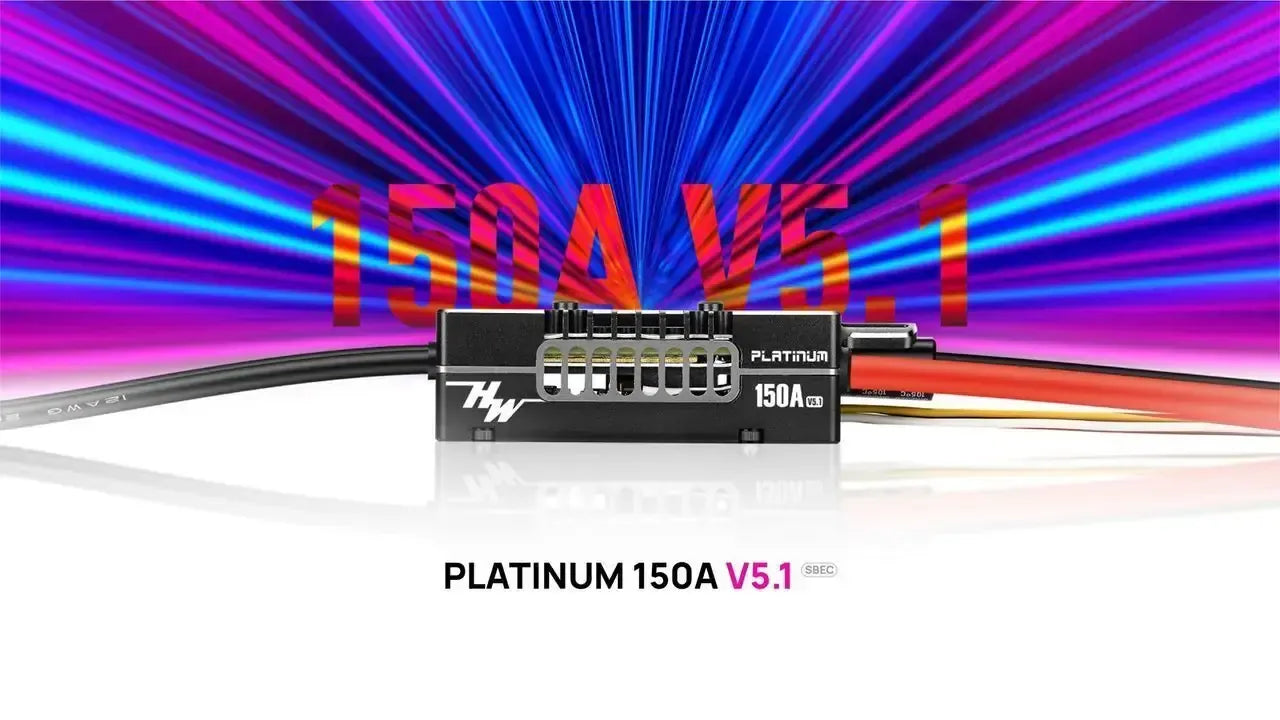

This is the Hobbywing Platinum 150A V5.1 Brushless ESC
Type
- Brushed/Brushless: Brushless (BL)
- High Voltage/Regular: Regular
Product Specifications
- Continuous Current: 150A
- Product Name: Platinum 150A V5
- Product Number: 30203501
- Peak Current: 180A
- Input Voltage: 3-8S LiPo
-
BEC Output:
- Switch Mode: 5-12V
- Continuous Current: 10A
- Peak Current: 30A
Wires & Connectors
-
Input Wires:
- Red: 10AWG-150mm x1
- Black: 10AWG-150mm x1
-
Output Wires:
- Black: 12AWG-100mm x3
- Input Connectors: None
- Output Connectors: 4.0mm Gold Connectors (Female)
ESC Programming
- Transmitter: Not Supported
- LED Program Card: Not Supported
- LED Program Box: Not Supported
- LCD Program Box: Supported
- OTA Programmer: Supported
- Program Port: Separate Program Port
Firmware
- Firmware Upgrade: Supported
Telemetry Function
-
Supported Systems:
- Mikado VBar
- Futaba S.Bus2
- Other compatible systems
Size & Weight
- Size: 83.2 x 37.1 x 22.5mm (without fan)
- Weight: 150.4g (including wires, no fan)
Application Scope
-
Vehicle Compatibility:
- 520-580 class electric helicopters (main blade length 520-580mm)
- Suitable for fixed-wing aircraft
