Hobbywing Quicrun 10BL60 Brushless Sensored ESC G2

Hobbywing  |  SKU: HW30108001
$74.99
Buy now, pay later

Pay with Zip

Select Zip at checkout to see the payment options available for your purchase.

Learn more about Zip
Pickup Available

Pickup Available

  • Hobbytech Toys Myaree

    Usually ready in 2 hours

    Unit 18 / 276
    Leach Highway
    Myaree WA 6154
    Australia

 Free Shipping Over $250+

Free Shipping Over $250+

Free Shipping:

Free freight applies to the following online orders:

Orders over $250.00

Orders that exclude items marked "Oversize"

Orders that exclude items marked "Dangerous"

  • Shipping cost will be automatically calculated on checkout.
  • Orders will be shipped via Australia Post or Team Global Express.
  • Insurance may be requested on parcels at an additional cost per consignment. Hobbytech will not be held responsible for any losses or damages caused by chosen freight forwarder. All disputes must be taken up with the freight forwarder directly.
  • No deliveries will be done outside of Australia.
  • By placing your order on the Hobbytech website or via e-mail/telephone/website you accept all the shipping terms listed above.
 30 Day Returns Policy

30 Day Returns Policy

Warranty/ Faulty: Refund or Exchange

If you are having trouble with any of your purchases, and suspect it could be a warranty issue, then please email or phone us to go through your item's history of use and background. We are very reasonable when it comes to faults, and will try and resolve any concerns you have as quickly and painlessly as possible.

Each product is covered by the respective manufacturers warranty policy and some products may have individual components that are covered by separate warranties and time frames. We do not offer any additional product warranties outside the manufacturer’s warranty.

Please discuss any warranty concerns with us before sending the items back to avoid any confusion and unnecessary costs. We will generally require you to send photos of the product with your purchase details for an initial assessment and we will go from there.

Postage costs will be at the returner’s expense and refunded if the product is proven to be covered by warranty.

If the product is required to be sent back to our suppliers for assessment, we will cover this cost.

We will always try to resolve any warranty concerns as quickly as possible, where any delay is incurred we will communicate this to you.

  • A warranty refers to any new product which has a manufacturing defect or a major failure within a reasonable period.
  • If the warranty relates to a minor failure then we may replace, repair or refund the item.
  • On assessment if the product is deemed as having a major failure, the customer can decide whether they would like a replacement, repair or refund.
  • A warranty does not apply to any wear and tear on a product, crash damage or a product being used outside it’s intended use.



For further information, please refer to https://www.accc.gov.au/consumers/consumer-rights-guarantees/repair-replace-refund

Posting Returns

When sending items back for exchange, refund, repair or warranty assessment please post to our main office at the following address:

Hobbytech Toys

18/276 Leach Highway

Myaree

WA

6154

Similar Items

View All

Product details

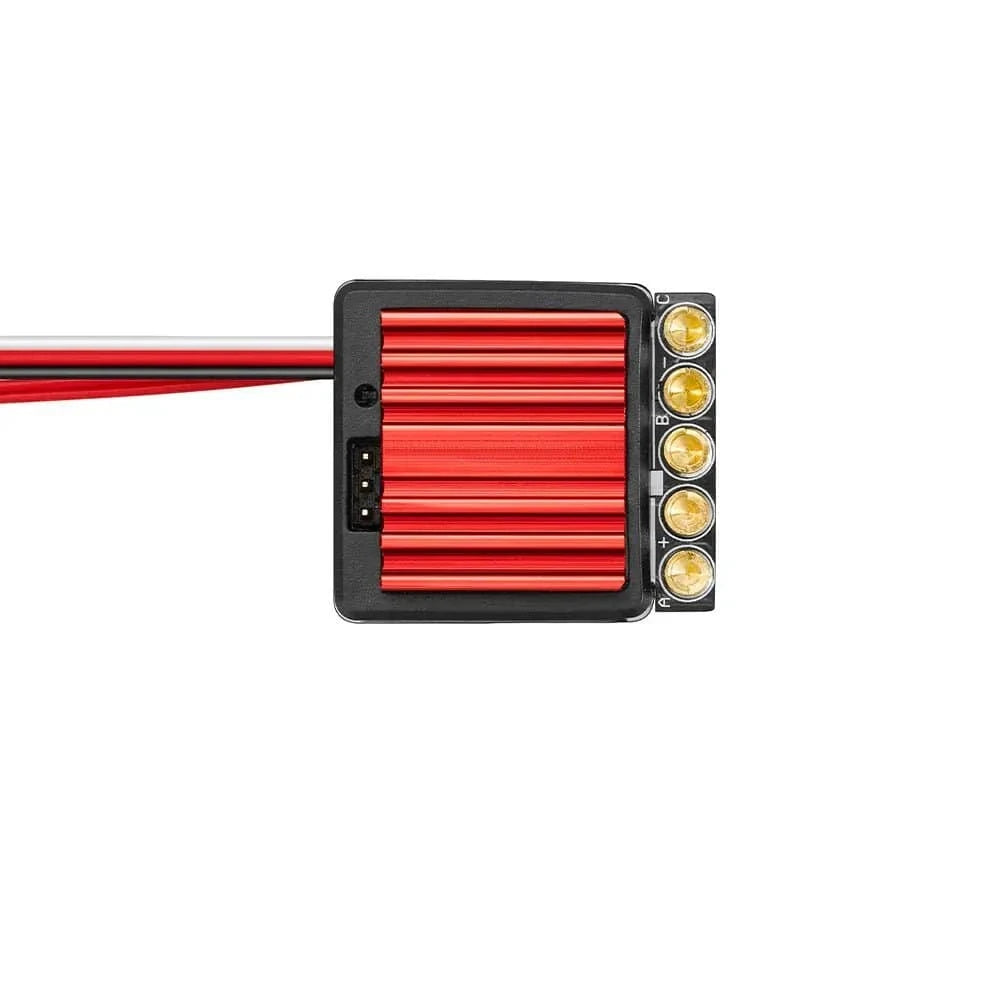

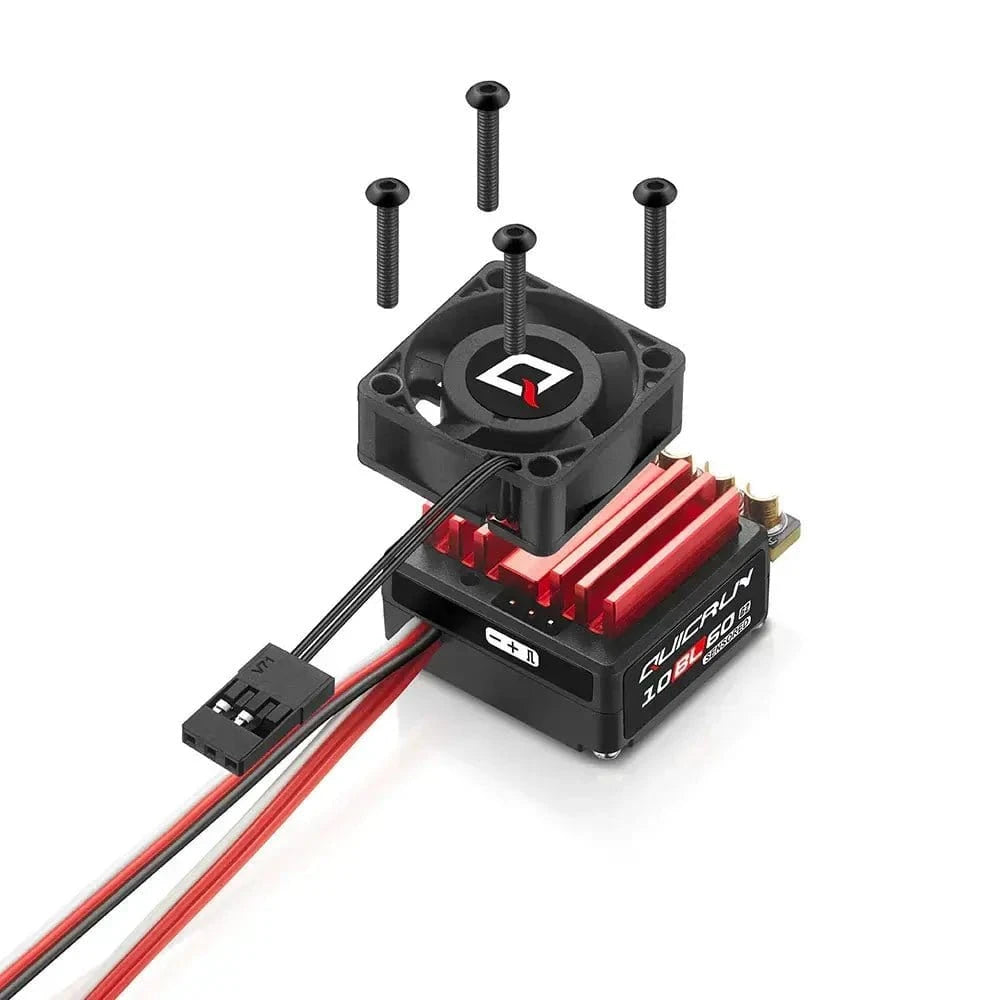

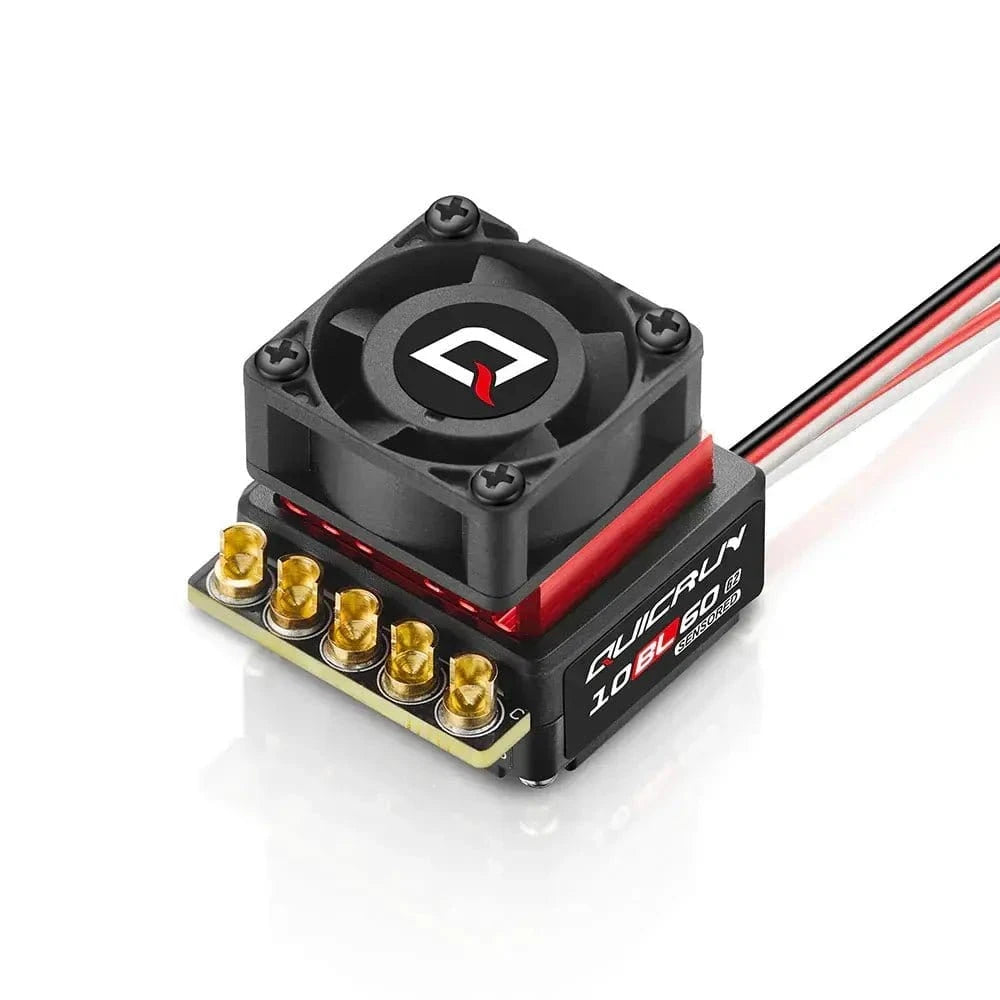

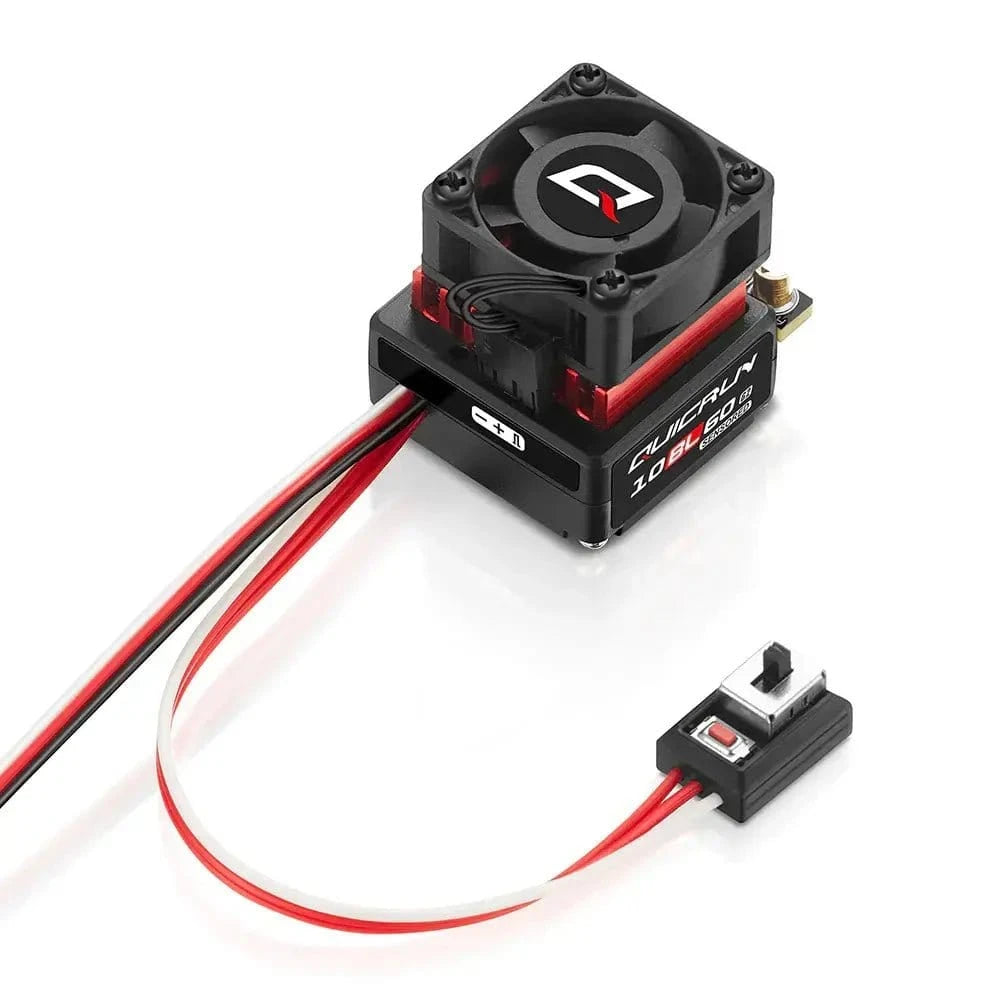

This is the Hobbywing Quicrun 10BL60 Brushless Sensored ESC G2

Hobbywing Quicrun 10BL60 Sensored Brushless ESC G2

Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or troubleshooting.

Powerful built-in BEC

Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V. It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.

Support Boost/Turbo timing technology

With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.

High reliability and durability

Continuous current 60A, Peak Current 200A. A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability.

Support multiple programming methods

The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.

Support Motor Rotation Adjustment

This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.

Applications

  • Motors: Sensored/Sensorless Brushless motor
  • Vehicles: 1/10th Touring, Buggy, Drift, 1/12th and 1/14th Vehicles
  • KV Rating/T Count: QUICRUN 3650 SD G2

Product Specifications

  • Scale: 1/10th
  • Brushed/Brushless: Brushless
  • Sensored/Sensorless: Sensored
  • Waterproof: NO

Relevant Parameters

  • Cont./Peak Current: 60A/200A
  • Input Voltage: 2S Lipo
  • BEC BEC Output: Switch Mode 6V/7.4V @4A

Wires & Connectors

  • Input Wires: Black--14AWG-175mm*1 Red--14AWG-175mm*1
  • Output Wires: Blue-14AWG-175mm*1, Yellow-14AWG-175mm*1, Orange-14AWG-175mm*1
  • Input Connectors: No
  • Output Connectors: No

ESC Programing via

  • SET Button on ESC: Supported
  • LED Program Box: Supported
  • LCD G2 Program Box: Supported
  • LCD PRO: Supported
  • OTA Programmer: Not Supported
  • Program Port: Shared with Fan port

Data Recording

  • Extreme value: Not Supported
  • Real-time Data: Not Supported
  • Historical data (Graph): Not Supported
  • Firmware Upgrade: Not Supported

Size & Weight

  • Size: 35.0*31*30.8mm
  • Weight: 66.5g (Included wires & connectors)
  • Package total weight: 130.00 grams (incl. packaging)
  • Package size: 9.00 x 12.50 x 7.00cm
  • Factory description: Hobbywing QUICRUN 10BL60-SENSORED G2 Brushless ESC
