Description

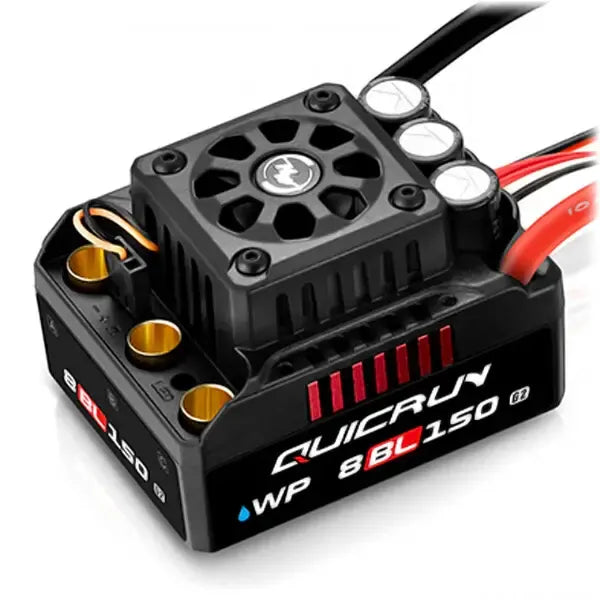

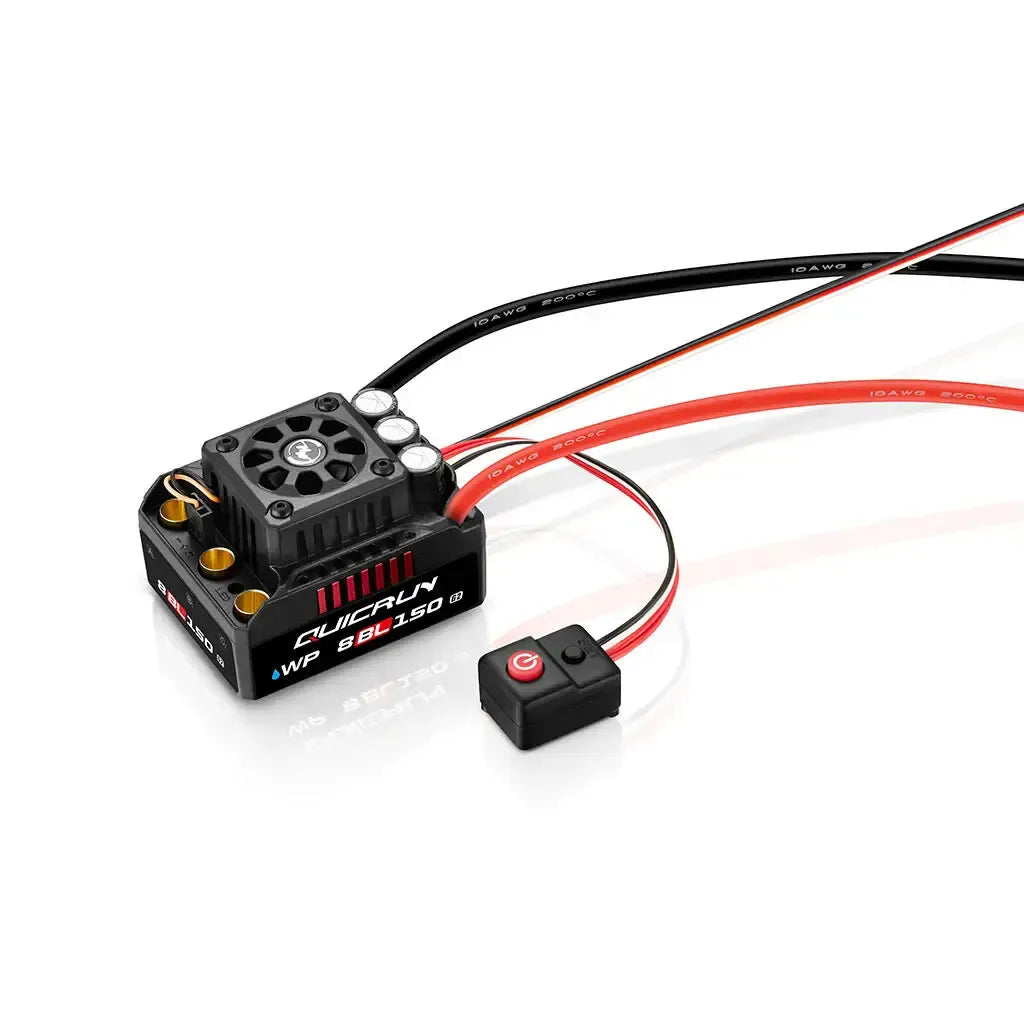

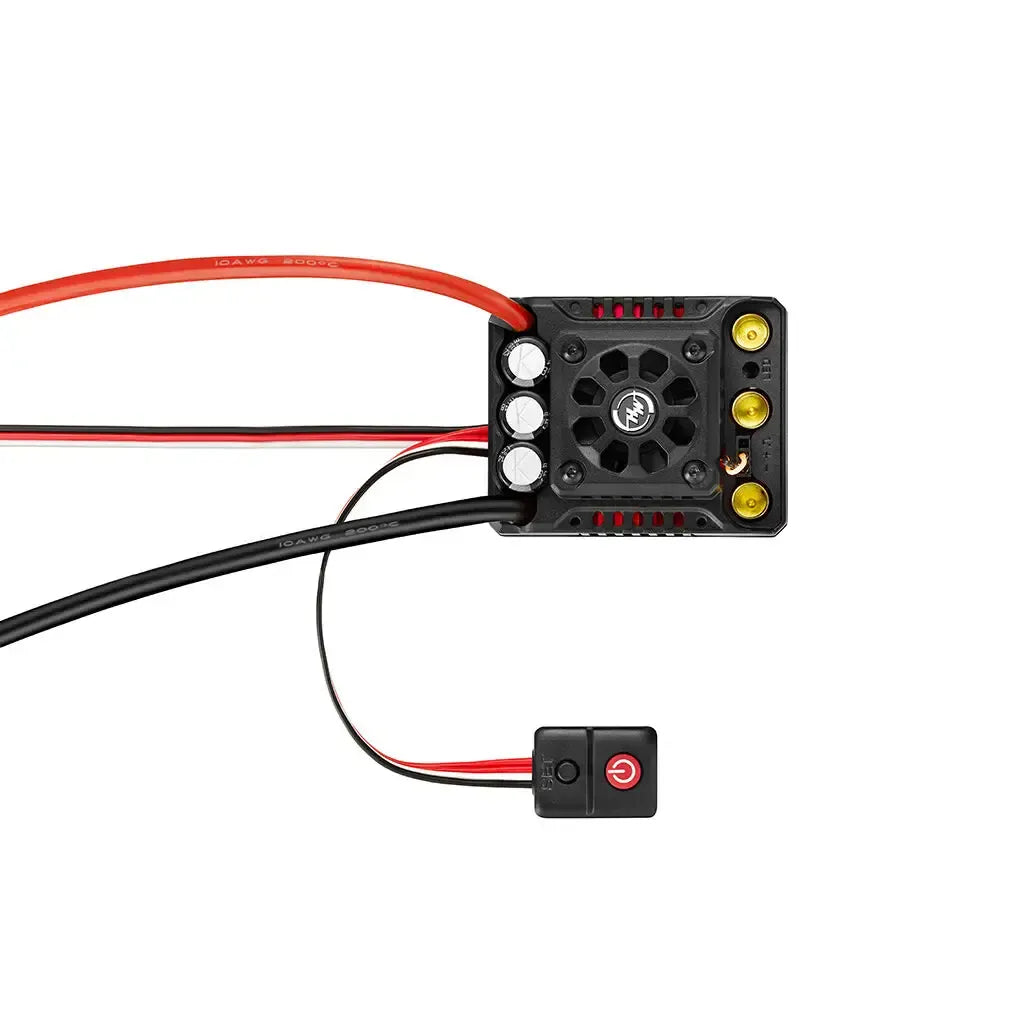

This is the Hobbywing QuicRun 8BL150 G2 150A Waterproof Brushless ESC [30109003]
Introducing the QuicRun WP 8BL150 G2 speed control.
Innovative intelligent freewheeling technology.
High efficiency and low temperature rise. The innovative intelligent freewheeling technology enables the ESC to have higher driving efficiency and lower operating temperature. The stability and reliability of the ESC is improved.
Upgraded BEC
The BEC has been upgraded from the previous generation from 6V/3A to 6V/7.4V and is fully-adjustable. It is equipped with a continuous current of 6A, and up to a maximum current of 12A. It supports most high-voltage servos on the market.
Exceptional protection and operation
Equipped with excellent waterproofing and dustproofing performance to cope with various climatic conditions and harsh environments. The protection level of the ESC reaches IP67.
Note: The IP67 protection level mentioned above is splash-proof, water-proof, and dust-proof under normal use,
but it is not permanently effective, and the protection performance may decline due to daily wear and aging. Do not
soak in water for a long time, otherwise the product may be damaged.
Efficient cooling system
The internal power board of the ESC is covered with a patented copper heat conduction bus bar to help facilitate the rapid conduction of internal heat to the radiator. Additionally, a fan is added to dissipate heat. These constitute to a highly reliable cooling system to ensure that the ESC is always in a safe operating temperature.
Durable electronic switch
The upgraded electronic power switch solves the corrosion and impact damage that occurs frequently in traditional mechanical switches in dusty and humid environments.
Accidental shutdowns are no longer an issue. he life-span of the switch is 50000 times longer. Waterproof, dustproof, impact-resistant.
Capacitor overheating protection function
Capacitor overheating protection feature can effectively prevent exploding customers due to overload usage. This helps to eliminate damages to the ESC.
Super large built-in capacitor
The built-in capacitor capacity of the ESC is as high as 2040 uF, and eliminates the need for external capacitors.
Product Specifications
General:
- Scale: 1/8th
- Motor Compatibility: Sensored and Sensorless Brushless Motors
- Waterproof: Yes
Current Ratings:
- Continuous Current: 150A
- Burst Current: 950A
Input & Battery Compatibility:
- Input Voltage: 2S - 6S LiPo
-
KV Rating Limitations:
- 4S LiPo: KV ≤ 3000
- 6S LiPo: KV ≤ 2400 (4274 size motor)
BEC Specifications:
- BEC Type: Switch Mode
- BEC Output: 6V / 7.4V @ 6A
Wiring & Connectors:
-
Input Wires:
- Black: 10AWG - 150mm
- Red: 10AWG - 150mm
- Output Connectors: 6.5mm Gold (Female)
ESC Programming Options:
- SET Button on ESC: Not Supported
- LED Program Box: Supported
- LCD Program Box G2: Supported
- OTA Programmer: Not Supported
- Program Port: Separate Program Port
- Firmware Upgrade: Supported
Recommended Applications:
- Suitable for: 1/8th Scale Truck & Monster Truck
Physical Dimensions & Weight:
- Size: 64mm (L) × 48mm (W) × 40.4mm (H)
- Weight: 169.5g (Including Wires)
