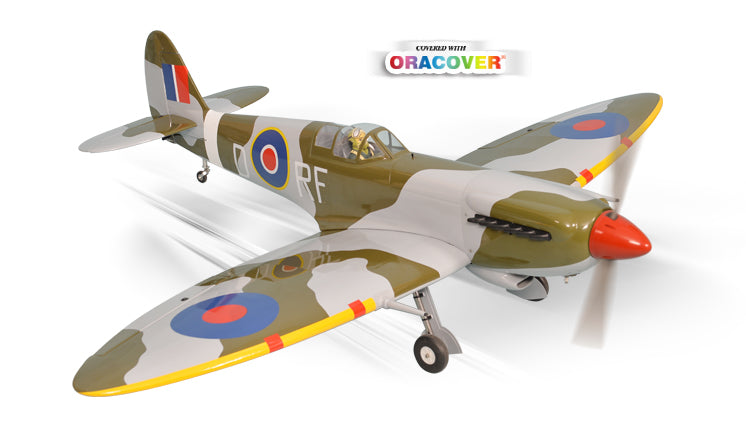

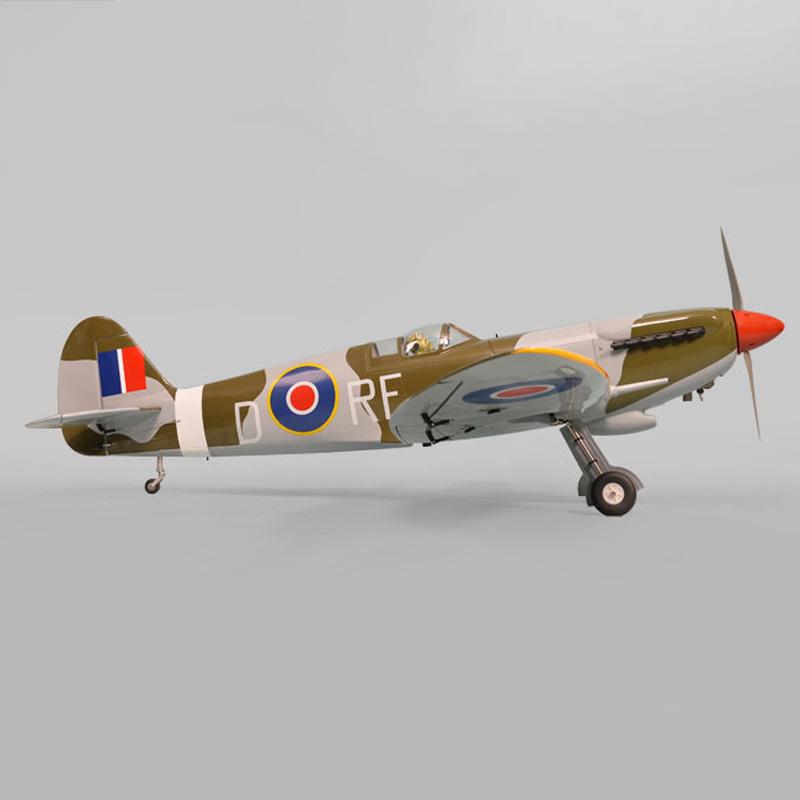

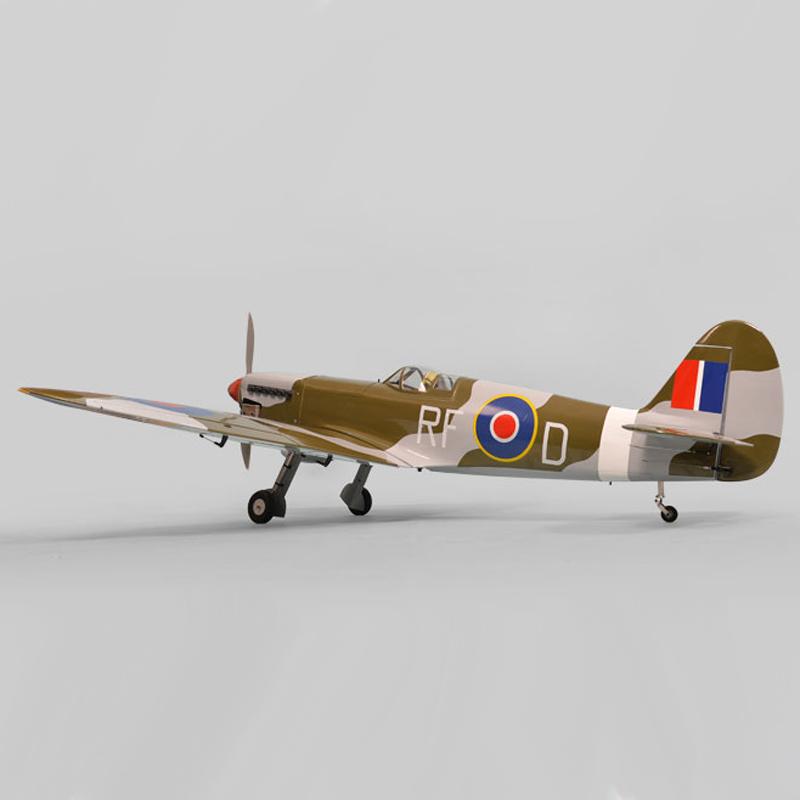

Phoenix Spitfire 30Cc Ep/Gp Arf

by:

$769.99
SKU PH151



Technical data


- Wingspan: 1800mm (70.8in)
- Length: 1572mm (61.9 in)
- Flying weight: 5800-6200g
- Wing area: 53.4 dm2
- Wing loading: 108g/dm2
- Wing type: Naca airfoils
- Covering type: Genuine ORACOVER
- Gear type: Retract gear With CNC Suspension Metal Struts and spring Tail gear (included)
- Spinner size: Plastic 95mm (included)
- Radio: 6 channel minimum (not included)
- Servo: 7 standard hi-torque servo: 2 aileron; 2 flap; 1 elevator; 1 rudder; 1 throttle; 2 retract gear (Futaba S3170G) or 2 electric retract (not included)
- Recommended receiver battery: 4.8-6V / 2000mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: 30 cc gas engine (not included)
- Motor: brushless outrunner 1600-2200 W, 450 KV (not included)
- Gravity CG: 120 mm (4.7 in) Back from the leading edge of the wing, at the fuselage
- Control throw Ailerons: Low: 11mm up/down, 10% expo; High: 13mm up/down, 10% expo
- Control throw Elevators: Low: 11mm up/down, 12% expo; High: 13mm up/down, 12% expo
- Control throw Rudder: Low: 30mm right/left, 15% expo; High: 40mm right/left, 15% expo
- Control throw flap : Mid : 15mm down; Landing : 20mm down
- Experience level: Intermediate
- Plane type: Scale Military


RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE .120 (not included)
- Lipo cell: 5-6 cells / 5500- 6000mAh (not included)
- Esc: 120-160A (not included)



Feature


- Designed for compatibility with both GP and EP flight
- Retract With CNC Suspension Metal Struts and spring tail gear included
- Removable Top hatch for easy change lipo battery and set up radio
- Strong Light Weight Construction
- Superb flying characteristics, plus an accurate scale outline
- High-quality hardware package included





ALL RC Planes are considered oversize items and DO NOT qualify for free shipping. This will be reflected at checkout. We do however offer a 'flat rate' shipping.

Pricing is as follows:

WA Metro - $30.00

NT, QLD, VIC, ACT & SA = $60.00
