DCC Decoder Harnesses

DCC decoder harnesses and adaptors are essential components for connecting DCC decoders to locomotives, accessories, or other model railroad equipment. They streamline the installation process by providing pre-wired connections and adapters that simplify wiring tasks and ensure compatibility between different components. Here's an overview of DCC decoder harnesses and adaptors:

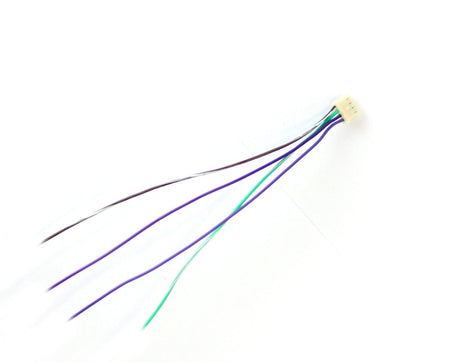

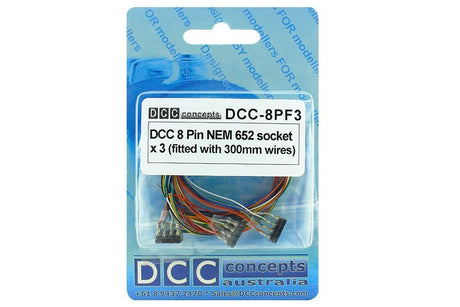

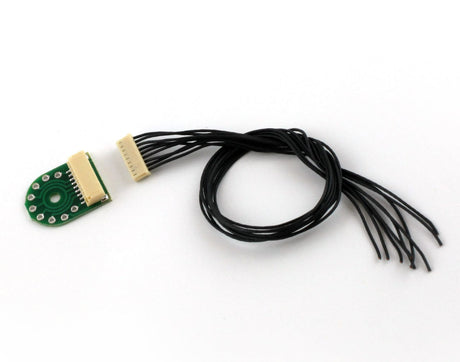

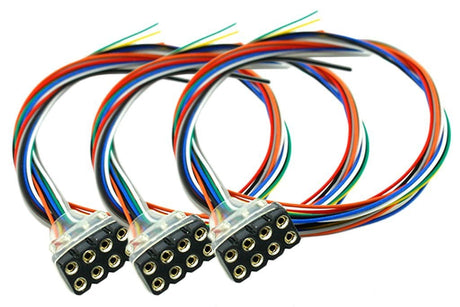

1. Decoder Harnesses:

   • Decoder harnesses are wiring assemblies that come pre-configured with connectors and wires for connecting DCC decoders to locomotives or other devices.
   • They typically include wires for power input, motor control, lighting functions, and additional features such as sound outputs or auxiliary functions.
   • Decoder harnesses are available in various lengths, configurations, and connector types to suit different locomotive models, decoder brands, and installation requirements.
   • These harnesses streamline the installation process and reduce the risk of wiring errors or damage to the decoder during installation.

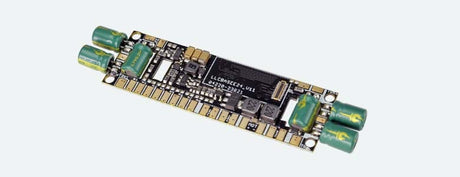

2. Adapter Boards:

   • Adapter boards are interface boards that facilitate the connection between DCC decoders and locomotives with non-standard or proprietary wiring configurations.
   • They may include solder pads, terminal blocks, or pre-wired connectors for easy connection to the decoder and locomotive components.
   • Adapter boards may also provide additional functionality, such as motor polarity reversal, lighting effects, or voltage regulation, depending on the specific requirements of the installation.

3. Plug-and-Play Harnesses:

   • Plug-and-play harnesses are pre-wired assemblies designed for easy installation and compatibility with specific locomotive models or decoder brands.
   • These harnesses typically feature connectors that plug directly into the decoder and locomotive sockets without the need for soldering or custom wiring.
   • Plug-and-play harnesses are ideal for modelers who want to upgrade their locomotives to DCC control without extensive modification or wiring work.

4. Function Adaptors:

   • Function adaptors are specialized adapters used to connect DCC decoders to locomotives or accessories with non-standard or incompatible lighting or function outputs.
   • They may include resistor networks, diodes, or transistor circuits to adapt voltage levels, current requirements, or signaling protocols between the decoder and the device being controlled.
   • Function adaptors ensure proper operation of lighting effects, sound triggers, or accessory functions, even when the decoder and device have different electrical characteristics.

5. Compatibility and Installation:

   • When selecting decoder harnesses and adaptors, it's essential to ensure compatibility between the decoder, locomotive, and other components.
   • Installation procedures may vary depending on the specific harness or adaptor being used, but they typically involve connecting the wires or connectors to the corresponding terminals on the decoder and locomotive according to the provided instructions or wiring diagrams.

Overall, DCC decoder harnesses and adaptors simplify decoder installations, enhance compatibility between different components, and ensure reliable operation of DCC-equipped locomotives and accessories in model railroad layouts. They are valuable accessories for modelers seeking to upgrade their layouts to DCC control or customize their locomotive fleet with advanced features and functionality.
