RC Servo Horns

Servo horns, also known as servo arms, are essential components in remote-controlled vehicles and aircraft, providing the mechanical linkage between the servo output shaft and the control surface or mechanism being actuated. They come in various sizes, shapes, and configurations to accommodate different applications and control requirements. Here's a closer look at servo horns and their key characteristics:

1. Types of Servo Horns:

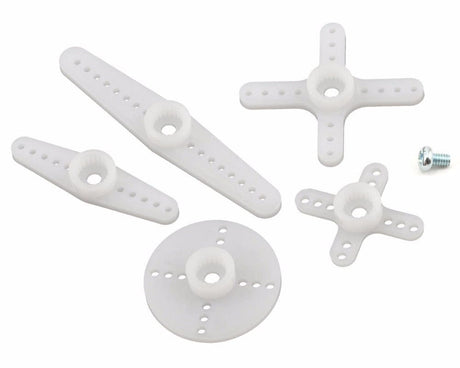

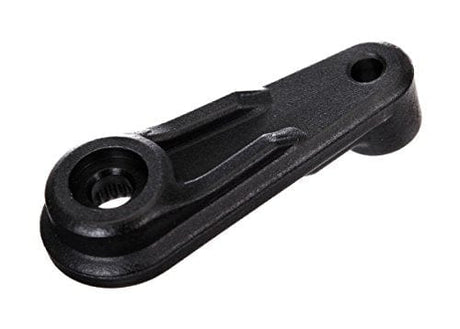

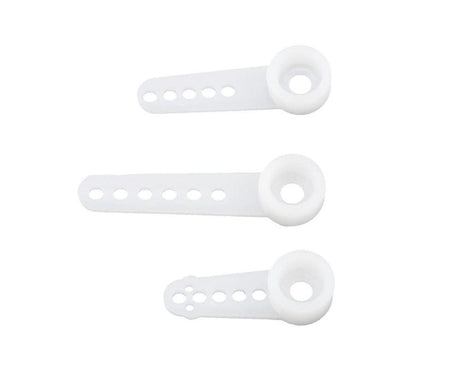

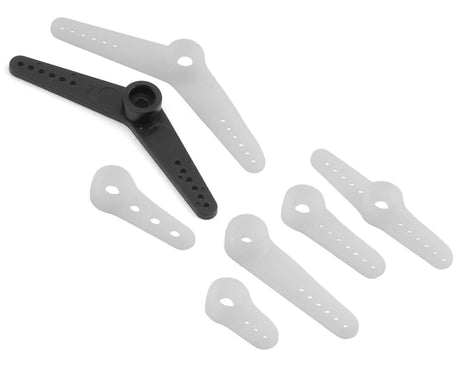

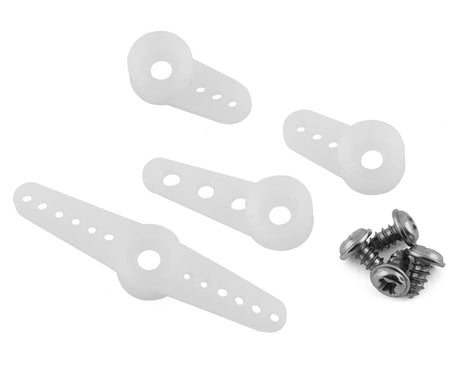

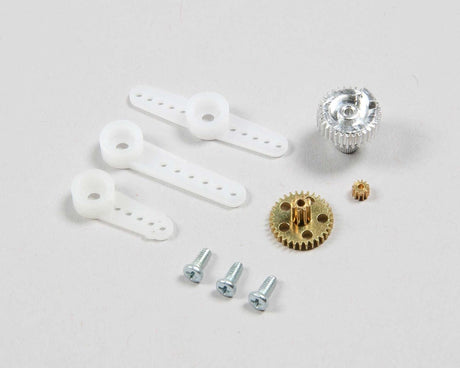

• Single Arm: Single-arm servo horns feature a single protrusion or "arm" that extends from the center of the horn. They are commonly used for basic control functions where a single point of attachment is sufficient.

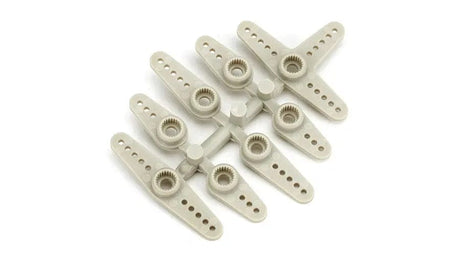

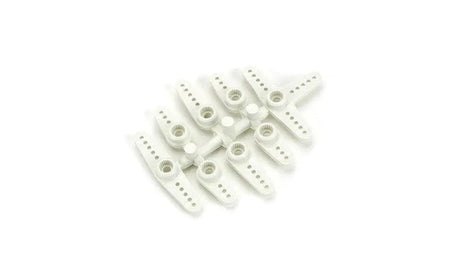

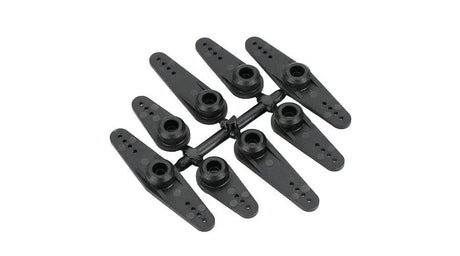

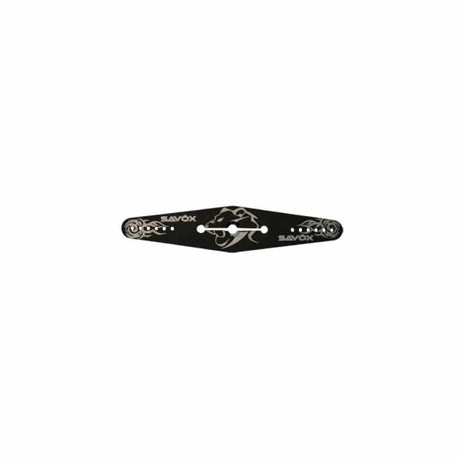

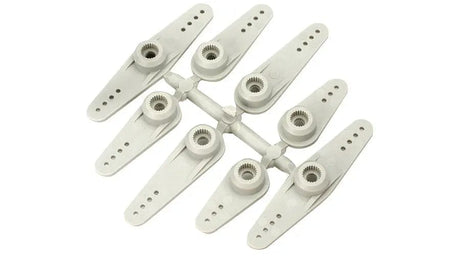

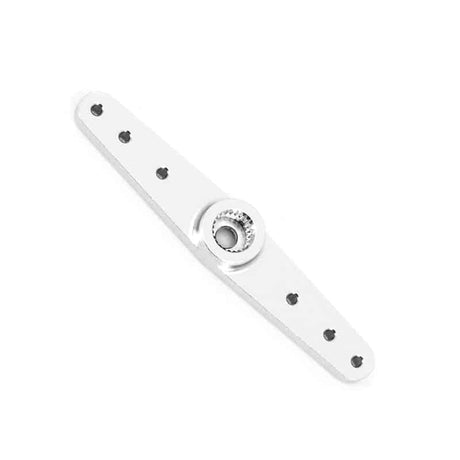

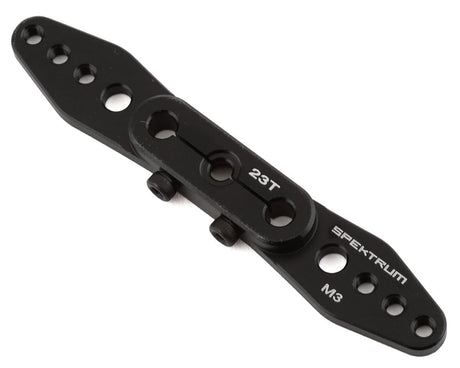

• Double Arm: Double-arm servo horns have two protrusions or "arms" extending from opposite sides of the horn. They provide dual attachment points for increased stability and control, making them suitable for applications that require precise control over larger control surfaces or mechanisms.

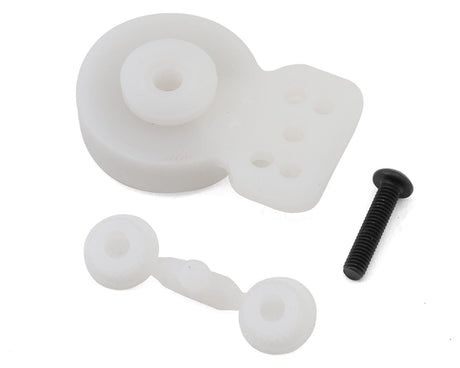

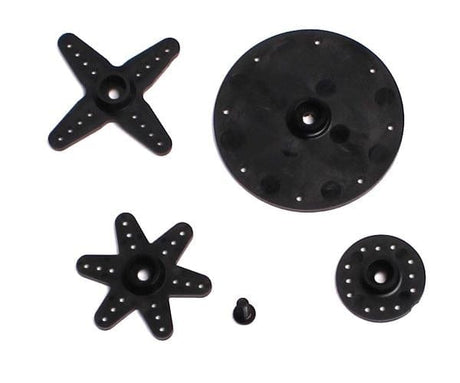

• Round Horn: Round servo horns have a circular or semi-circular shape and are often used in applications where a continuous range of motion is required, such as steering linkages in RC cars or throttle control in aircraft.

• Cross Horn: Cross servo horns feature multiple arms arranged in a cross-shaped pattern. They offer versatility in mounting options and can accommodate different linkage configurations, making them suitable for complex control setups.

2. Length and Size:

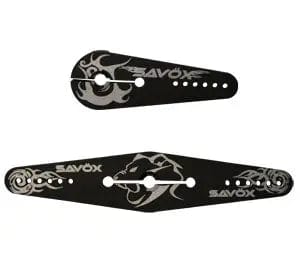

• Servo horns come in various lengths and sizes to suit different servo types and control requirements. The length of the servo horn determines the amount of leverage and travel distance available for controlling the attached mechanism or control surface.

• Standard sizes for servo horns include micro, mini, and standard, with corresponding spline counts to match the servo's output shaft.

3. Spline Count:

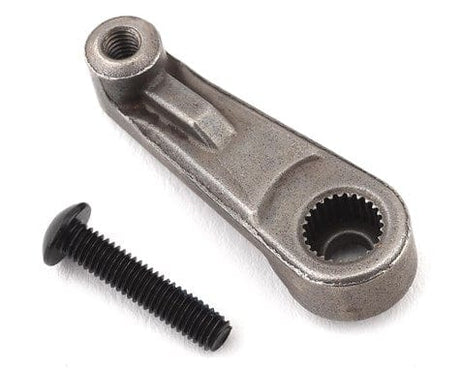

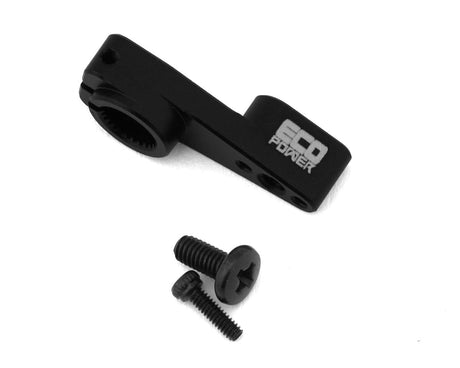

• The spline count refers to the number of teeth or ridges on the servo horn's inner diameter, which corresponds to the output shaft of the servo. Matching the spline count ensures a secure and precise fit between the servo horn and servo output shaft, preventing slippage or misalignment during operation.

4. Material:

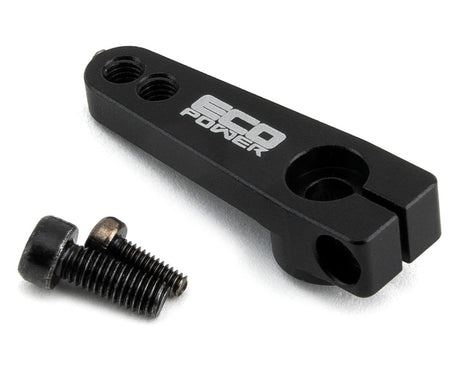

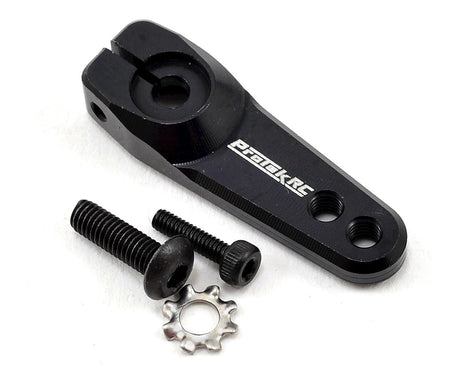

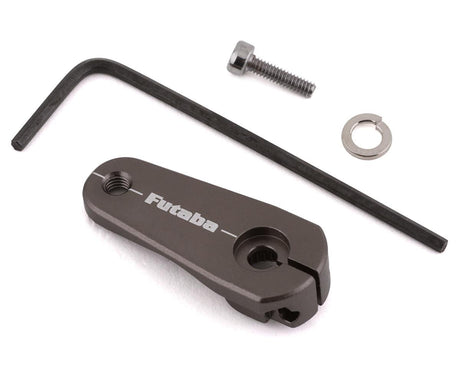

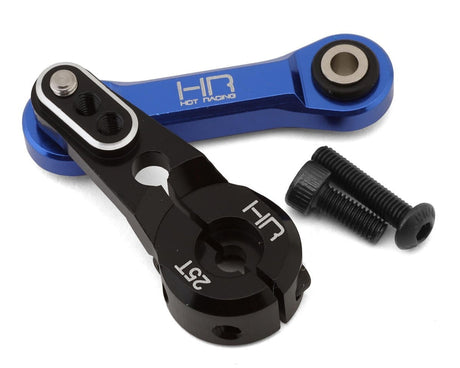

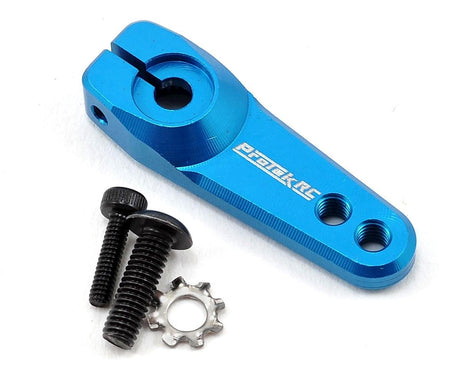

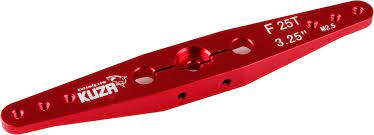

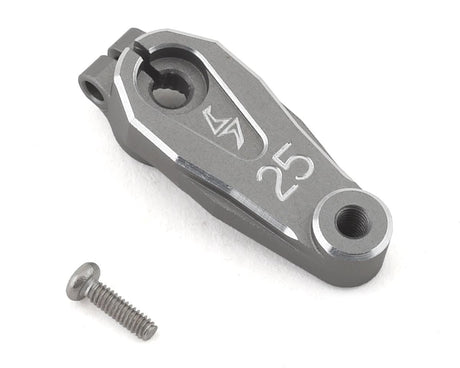

• Servo horns are typically made of durable materials such as plastic, aluminum, or composite materials. Plastic servo horns are lightweight and economical, making them suitable for most applications. Aluminum servo horns offer increased strength and durability, making them ideal for heavy-duty or high-performance applications.

5. Adjustability:

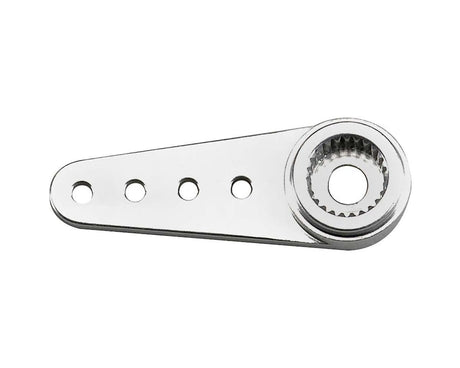

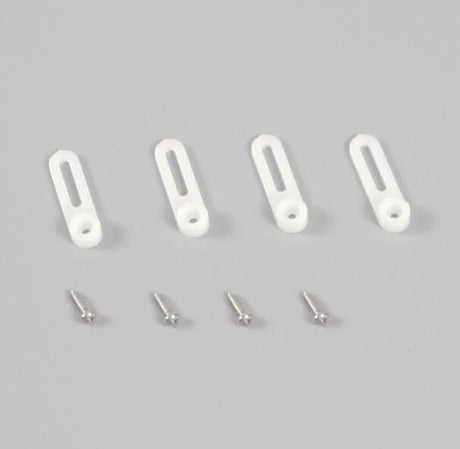

• Some servo horns feature adjustable linkage holes or positions, allowing for fine-tuning of control throws and geometry to achieve optimal performance and response. Adjustable servo horns offer flexibility in setup and can accommodate different mounting configurations and linkage lengths.

6. Compatibility:

• It's essential to choose servo horns that are compatible with your specific servo model and spline count to ensure a proper fit and reliable operation. Most servo manufacturers provide compatibility information and recommendations for servo horns compatible with their products.

7. Application:

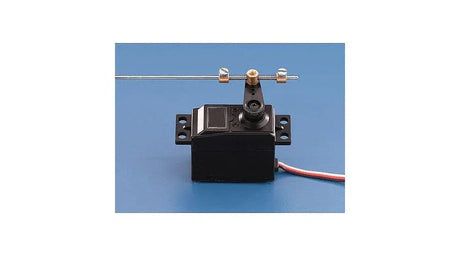

• Servo horns are used in a wide range of RC applications, including steering, throttle control, elevator control, rudder control, aileron control, and other mechanisms requiring precise actuation and control.

8. Customization:

• Some hobbyists may choose to customize servo horns by trimming or modifying them to suit specific applications or mounting configurations. However, caution should be exercised to maintain the structural integrity and balance of the servo horn.

Overall, servo horns are critical components in RC systems, providing the mechanical linkage between servos and control surfaces or mechanisms. Choosing the right servo horn for your application ensures reliable and precise control, optimizing the performance and maneuverability of your RC vehicle or aircraft.
