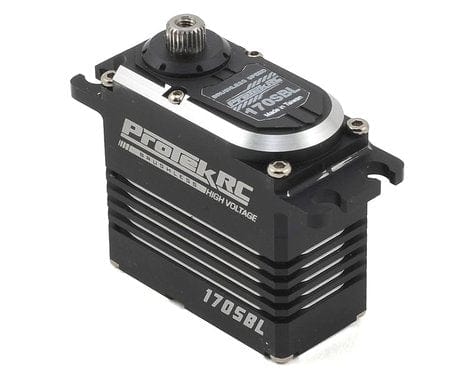

ProTek RC 170SBL Black Label High Speed Brushless Servo

ProTek RC 170SBL Black Label High Speed Brushless Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
-
Description
-
Returns
-
Shipping
Brushless servo technology has improved by leaps and bounds. Finally, brushless servos can deliver holding power, speed and precision that can compete with a coreless servo. Combine that with the superior efficiency and lifespan of a brushless motor and you have a servo that hits all the marks, with the performance and quality required for a pro level build.
A black anodized aluminum case with aluminum and white accents give this servo a stealthy look that sets it apart from the rest. The aluminum upper case provides bomb proof durability and the heat sink center case offers efficient heat dissipation and helps to reduce weight. The lead wire is detachable, allowing you to easily custom tailor the servo lead to your application, and the package includes both 135mm and 285mm length servo leads. Plus, a full selection of servo arms and mounting hardware are included making installation easy.
NOTE: If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.
Features:
Ideal for any 1/10 to 1/8 surface application that requires lightning fast response
Full aluminum black anodized case
High voltage circuitry
0.09 transit speed, and 458 oz-in of torque @ 6.0V
0.08 transit speed, and 535 oz-in of torque @ 7.4V
150mm and 300mm length 22awg detachable servo leads included w/gold plated connectors
Full metal gears and dual ball bearings
Brushless motor
Available Servo Leads:
PTK-3049: 70mm (2.75")
PTK-3047: 150mm (5.91")
PTK-3048: 300mm (11.81")
Servo Model 170SBL
Recommended Application 1/10 to 1/8 Scale Surface
Operating Voltage 4.8V - 7.4V
Operating Temperature 14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V 0.09/60° sec
Operating Speed @ 7.4V 0.08/60° sec
Dynamic Torque @ 6.0V 458 oz-in (32.9 kg-cm)
Dynamic Torque @ 7.4V 535 oz-in (38.5 kg-cm)
Motor Type Brushless Digital
Output Shaft 25 Tooth
Gears Metal
Weight 72g
Pulse/Frequency 1520s / 333hz
Dimensions 40x20x37.8mm
Length (Bottom to Mount) 28.4mm
